Transfer Case Encoder Motor Connector End View

Fig 1: Transfer Case Encoder Motor Connector End View
G01597682Courtesy of GENERAL MOTORS CORP.

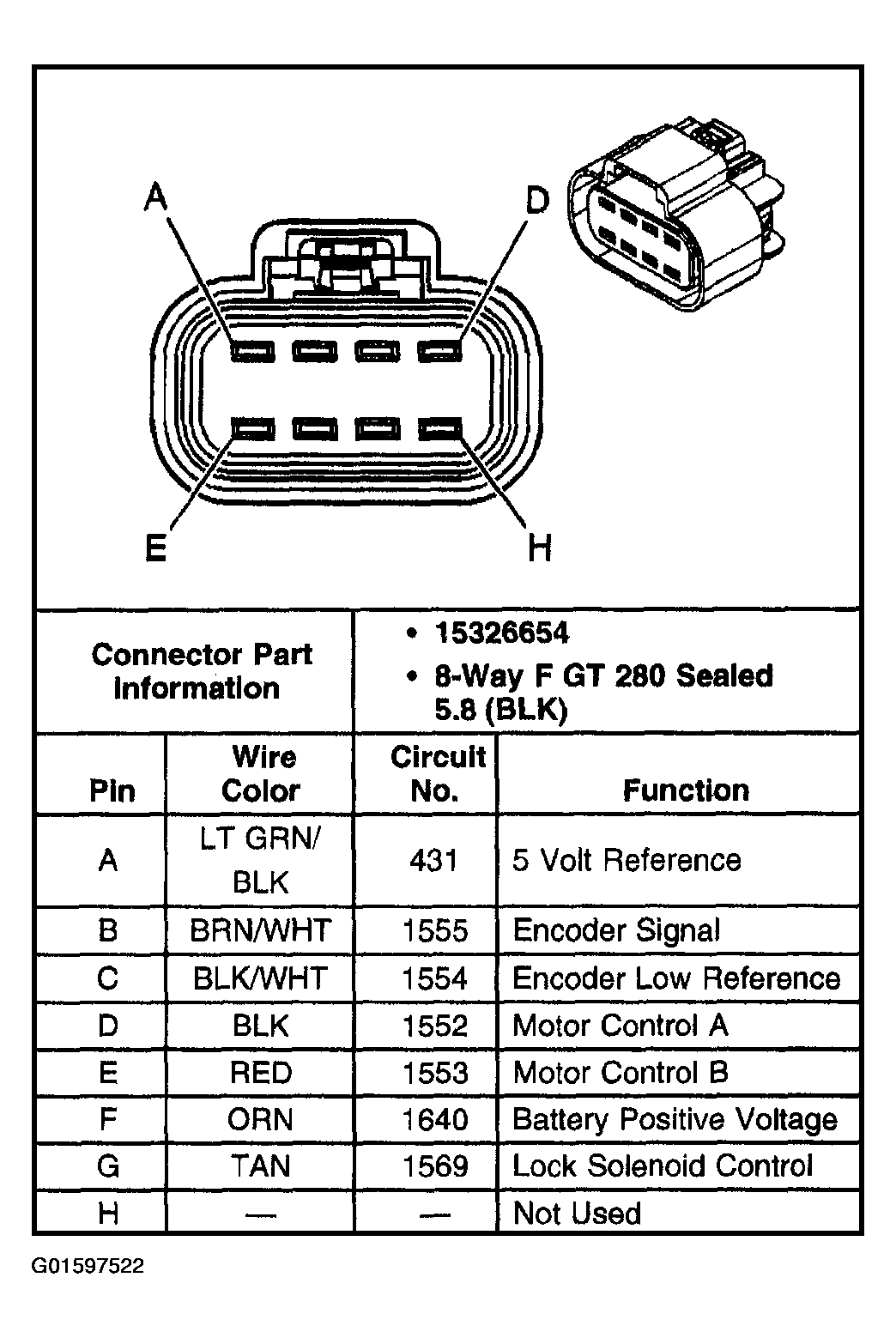

Fig 1: Transfer Case Encoder Motor Connector End View
G01597522Courtesy of GENERAL MOTORS CORP.
