Traction Control Switch Connector End View (Chevy/GMC) (2 Of 2)

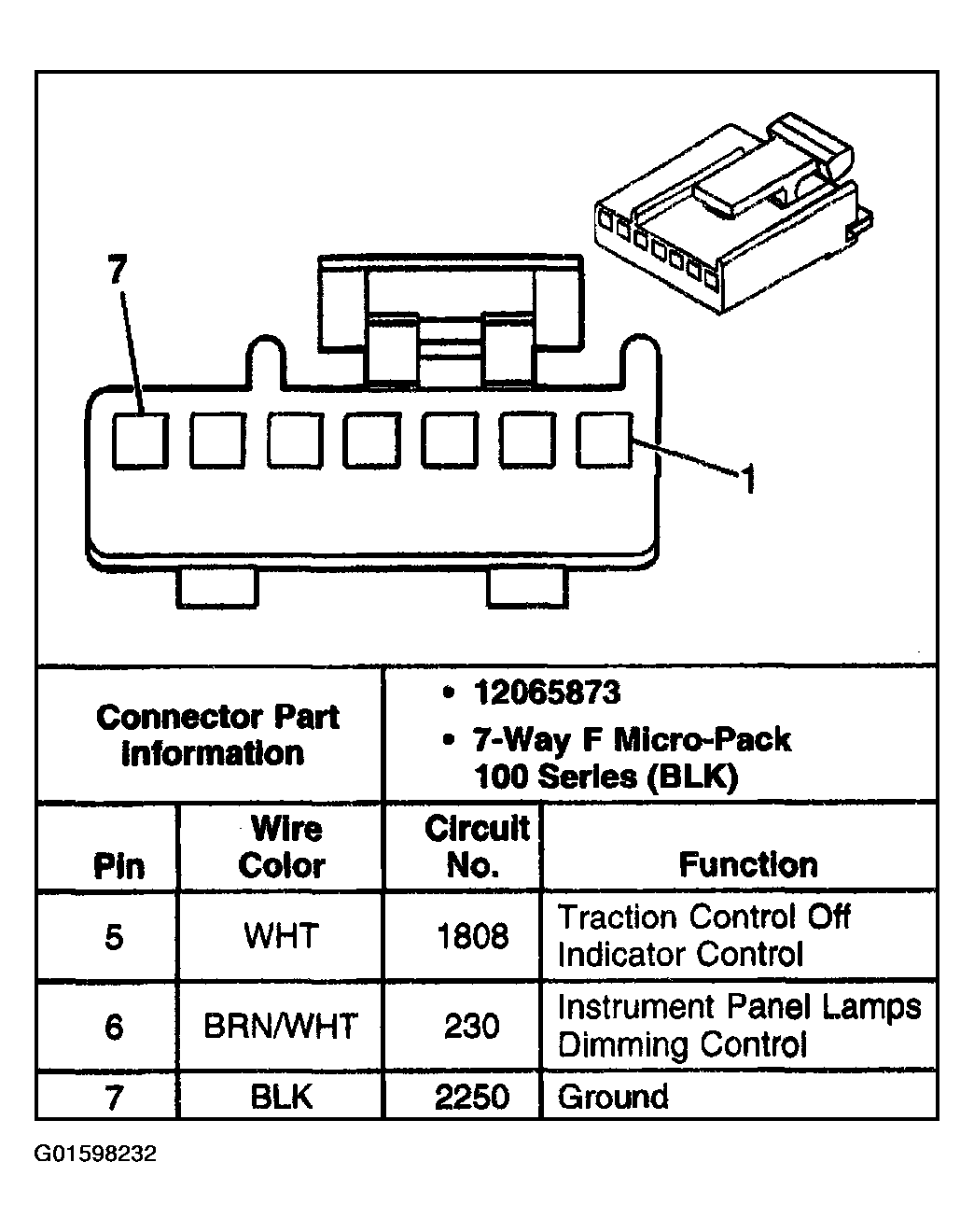

Fig 1: Traction Control Switch Connector End View (Chevy/GMC) (2 Of 2)

G01598232

Courtesy of GENERAL MOTORS CORP.
