Sunroof Module Connector End View C2

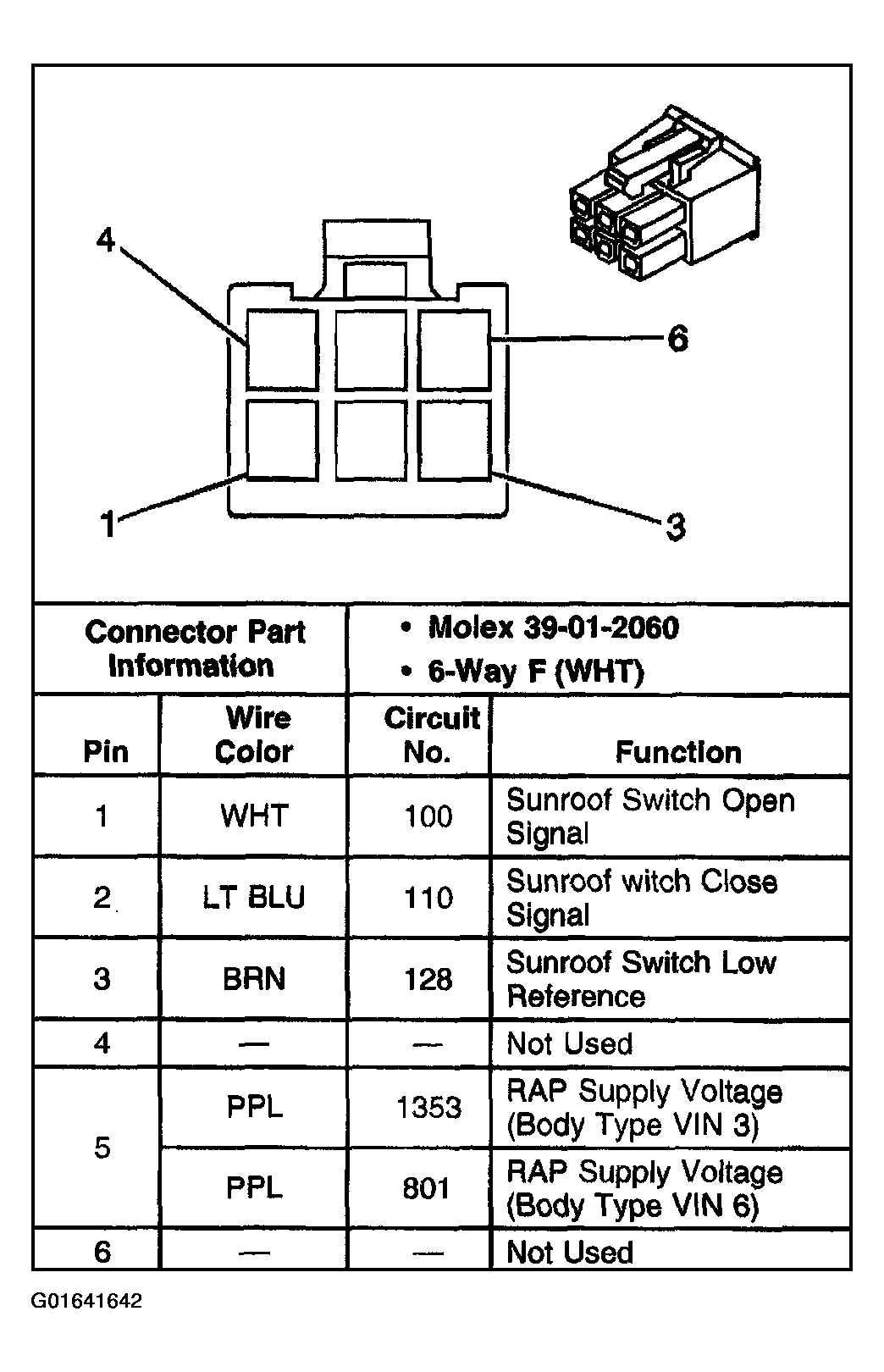

Fig 1: Sunroof Module Connector End View C2

G01641642

Courtesy of GENERAL MOTORS CORP.
