Select/Personalization Switch Connector End View

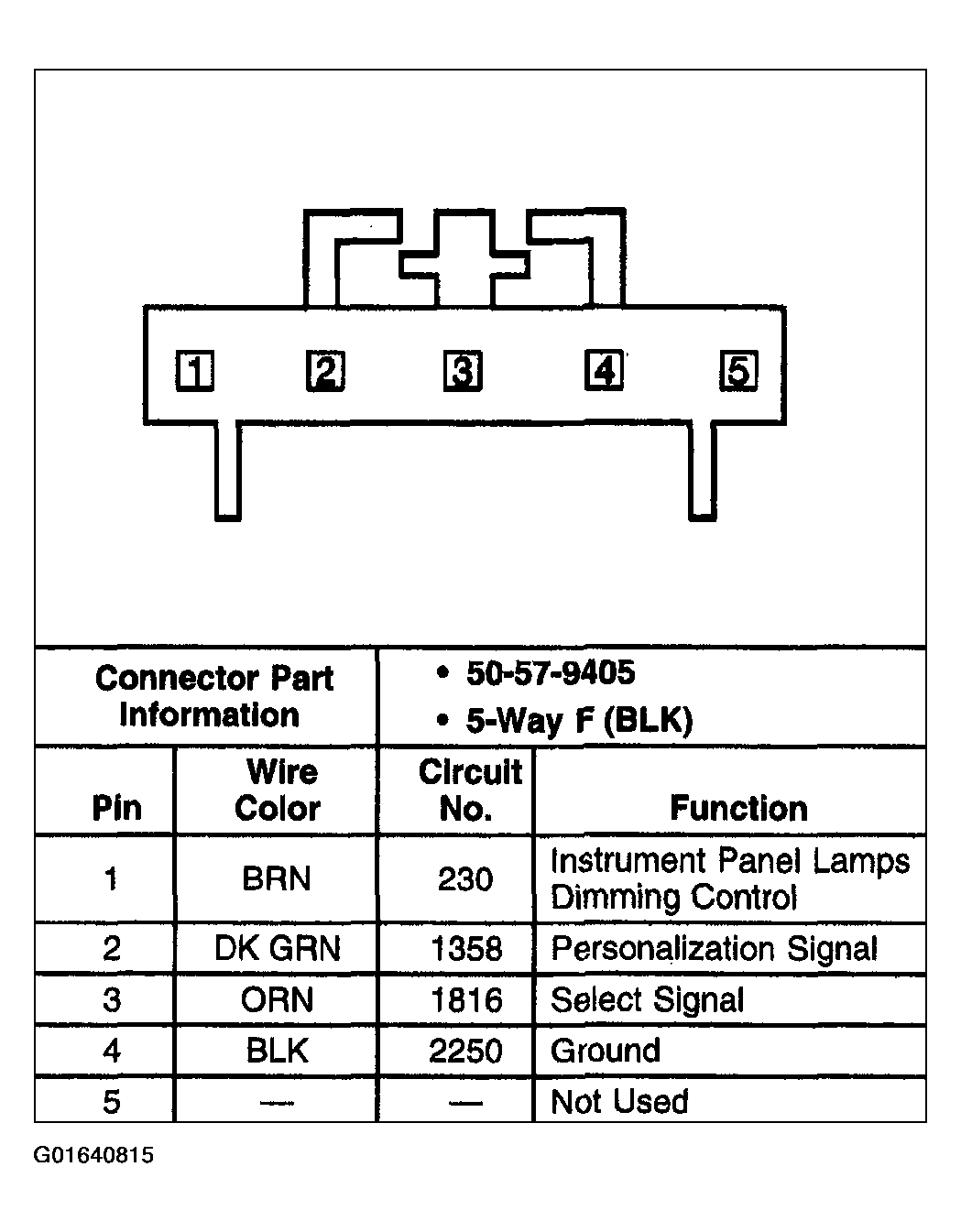

Fig 1: Select/Personalization Switch Connector End View

G01640815

Courtesy of GENERAL MOTORS CORP.
