Memory Seat Module Connector End View - Driver C1

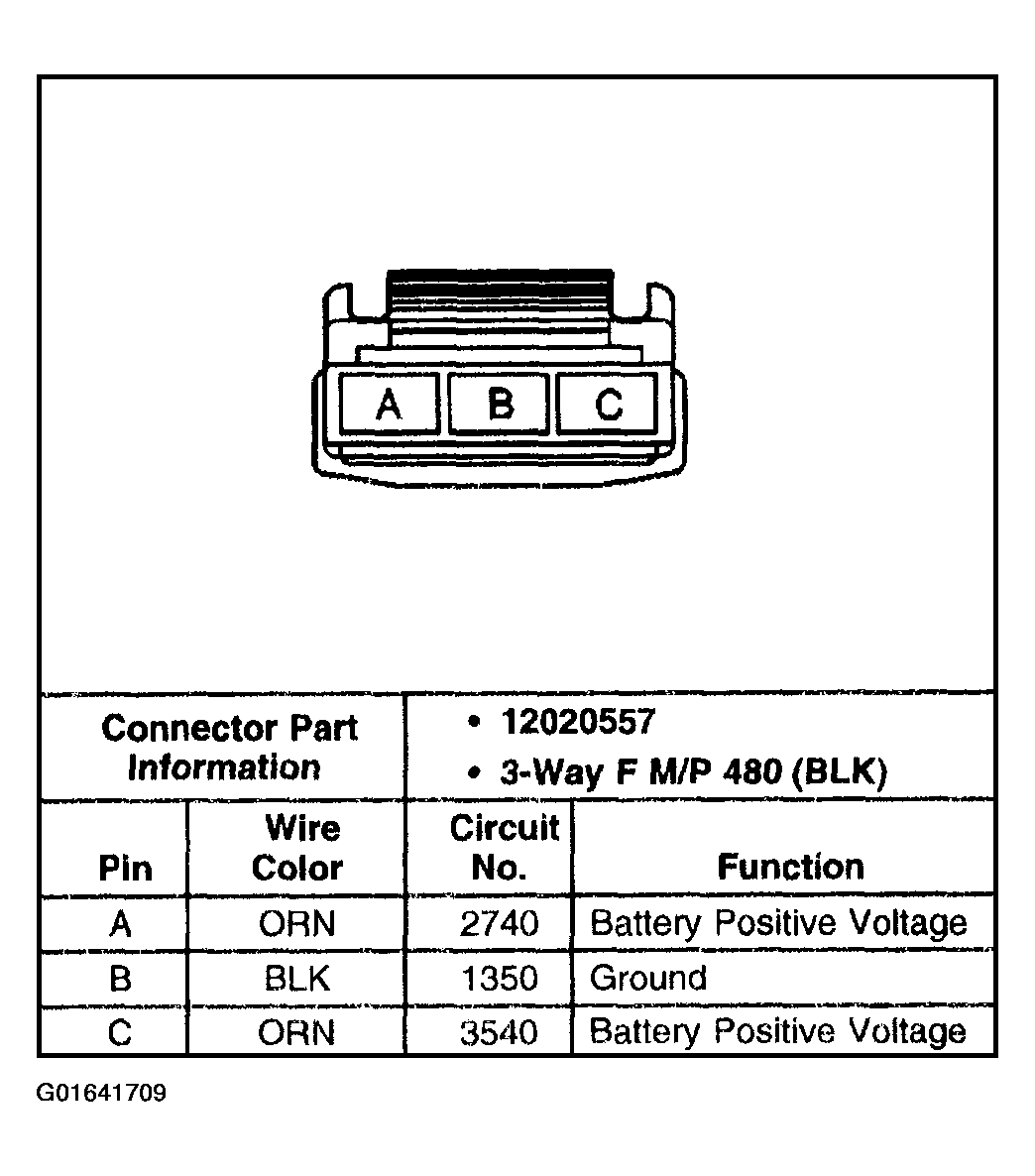

Fig 1: Memory Seat Module Connector End View - Driver C1

G01641709

Courtesy of GENERAL MOTORS CORP.
