Liftgate Module (LGM) Connector End View - C2

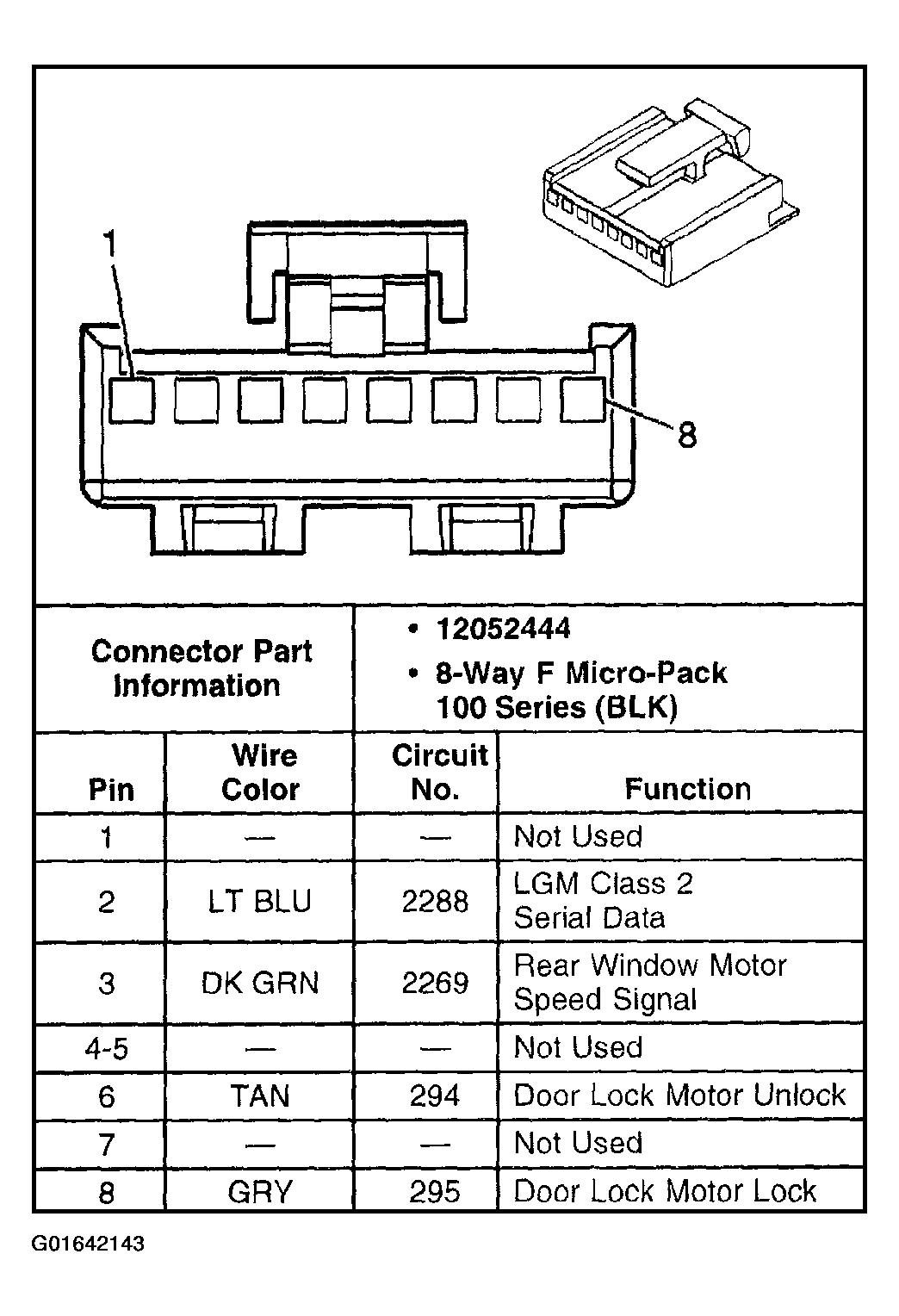

Fig 1: Liftgate Module (LGM) Connector End View - C2

G01642143

Courtesy of GENERAL MOTORS CORP.
