HVAC Control Module Connector End View C1 (2 Of 2)

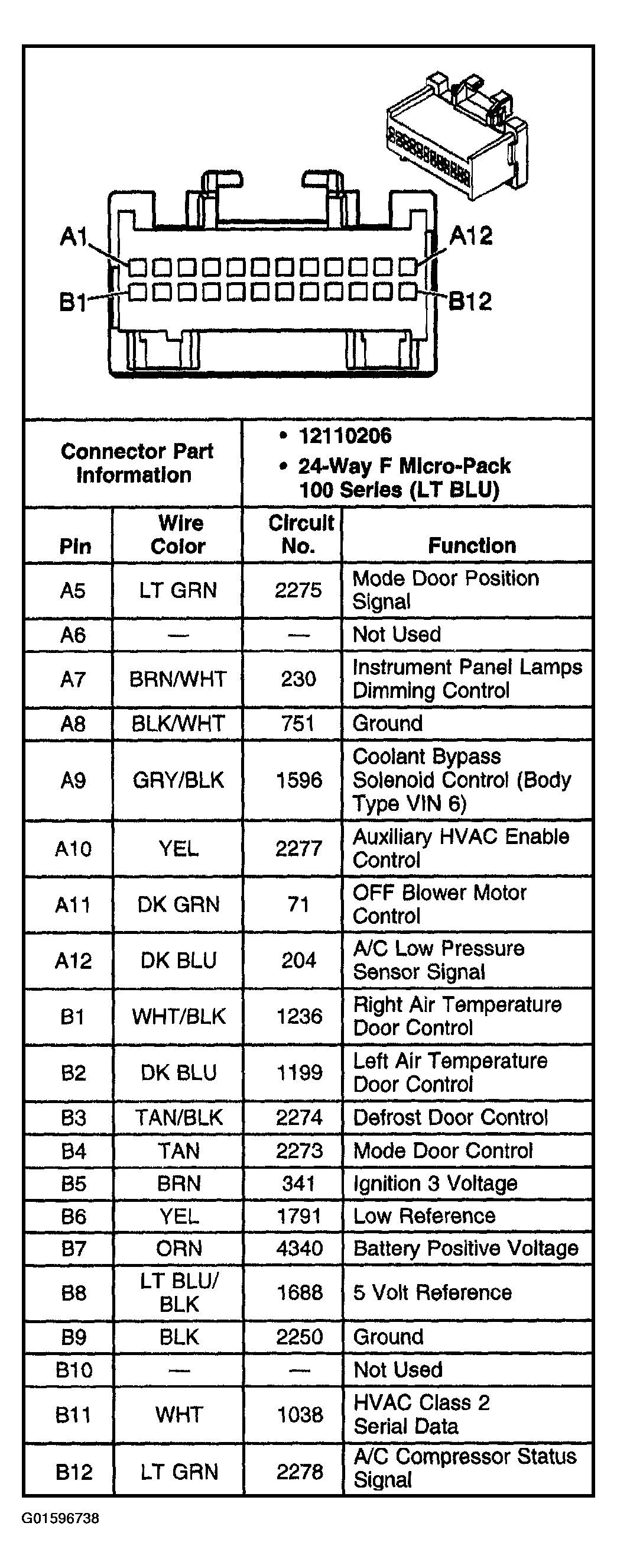

Fig 1: HVAC Control Module Connector End View C1 (2 Of 2)
G01596738Courtesy of GENERAL MOTORS CORP.

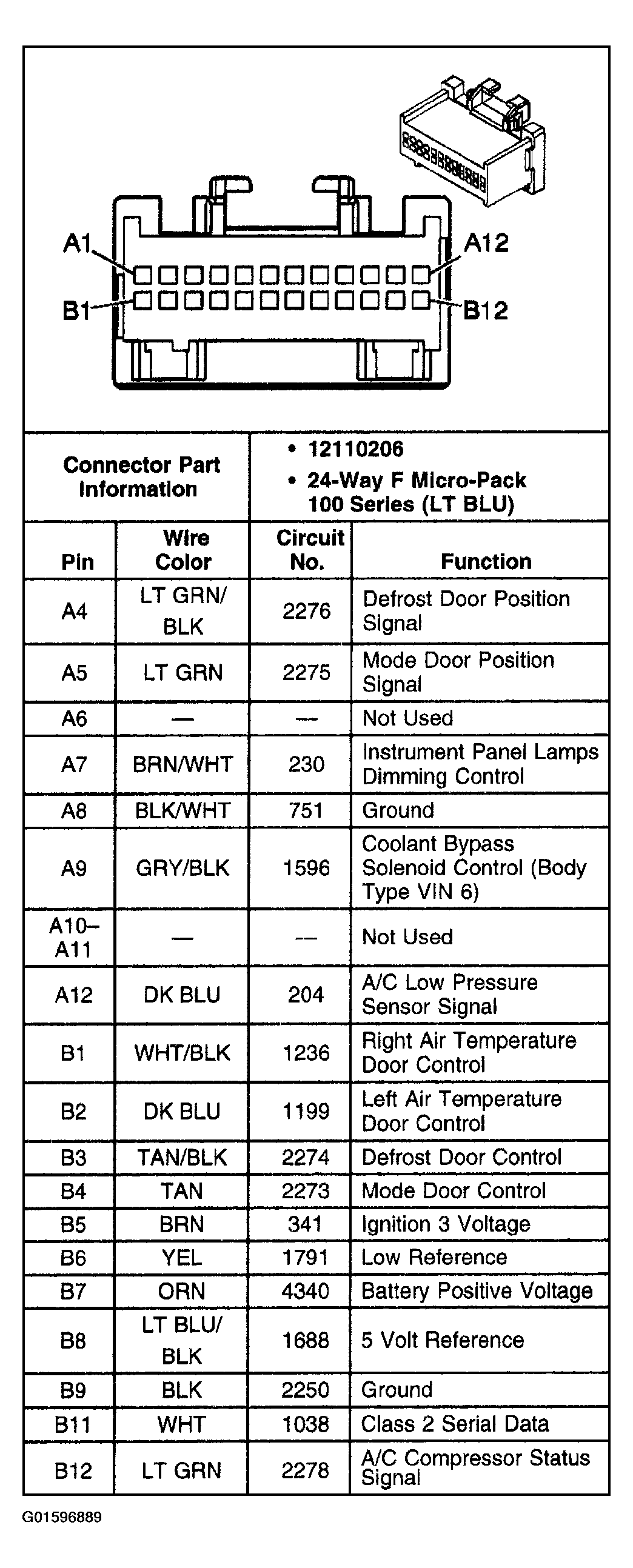

Fig 1: HVAC Control Module Connector End View C1 (2 Of 2)
G01596889Courtesy of GENERAL MOTORS CORP.
