Front Passenger Door Module (FPDM) Connector End View C1

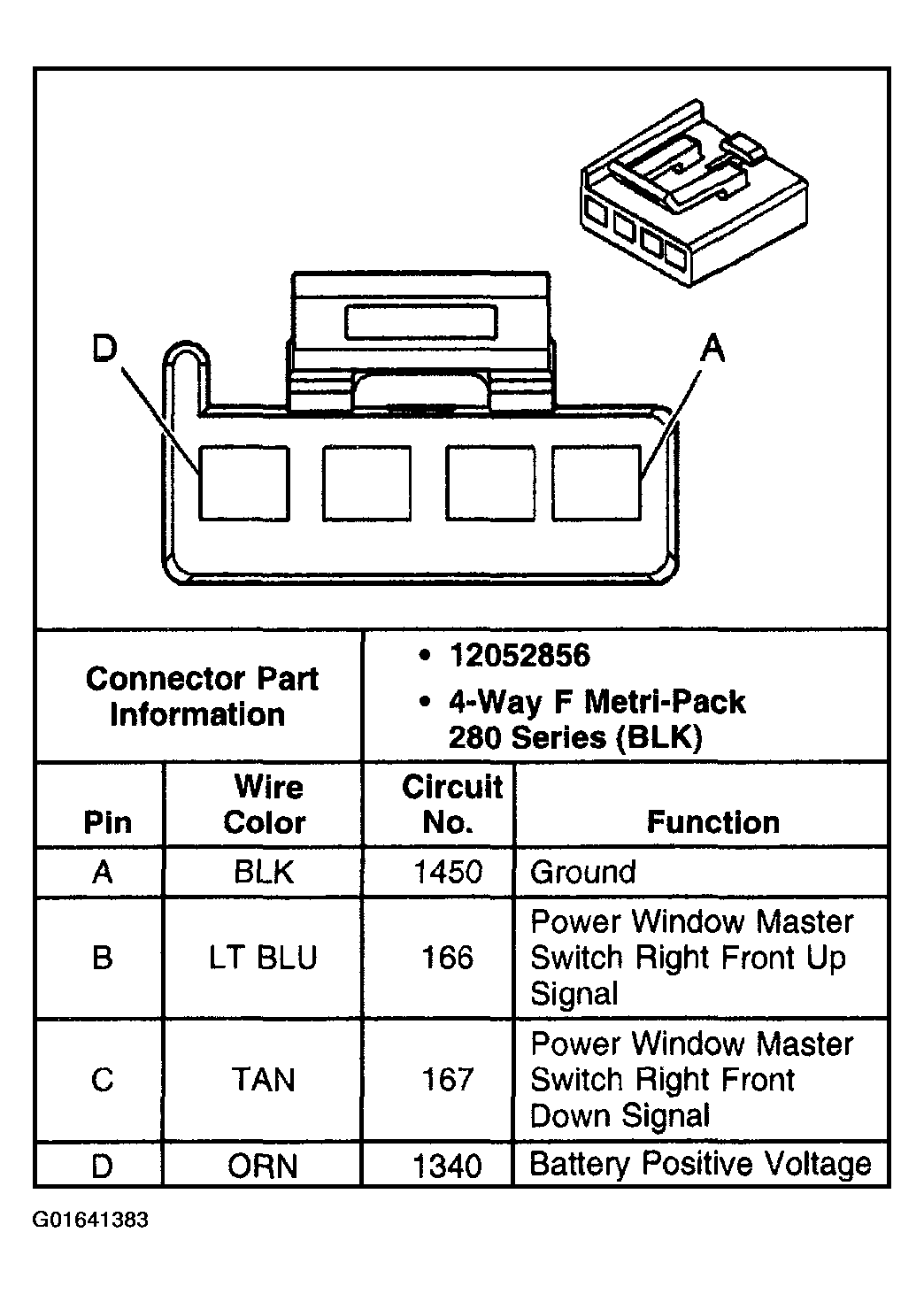

Fig 1: Front Passenger Door Module (FPDM) Connector End View C1

G01641383

Courtesy of GENERAL MOTORS CORP.
