Electronic Brake Control Module Connector (EBCM) Connector End View C2 (2 Of 2)

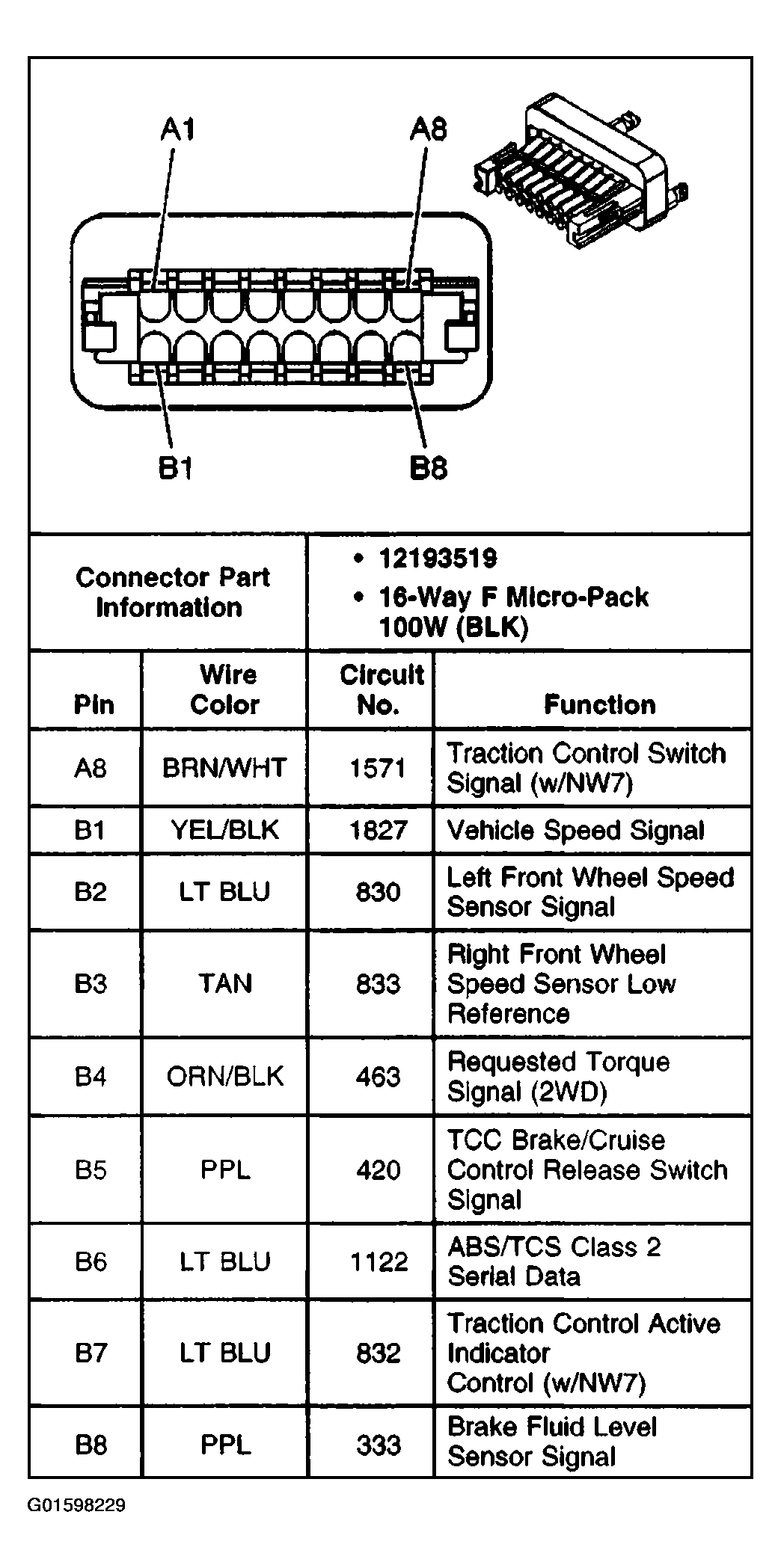

Fig 1: Electronic Brake Control Module Connector (EBCM) Connector End View C2 (2 Of 2)

G01598229

Courtesy of GENERAL MOTORS CORP.
