Driver Door Module (DDM) Connector End View C1

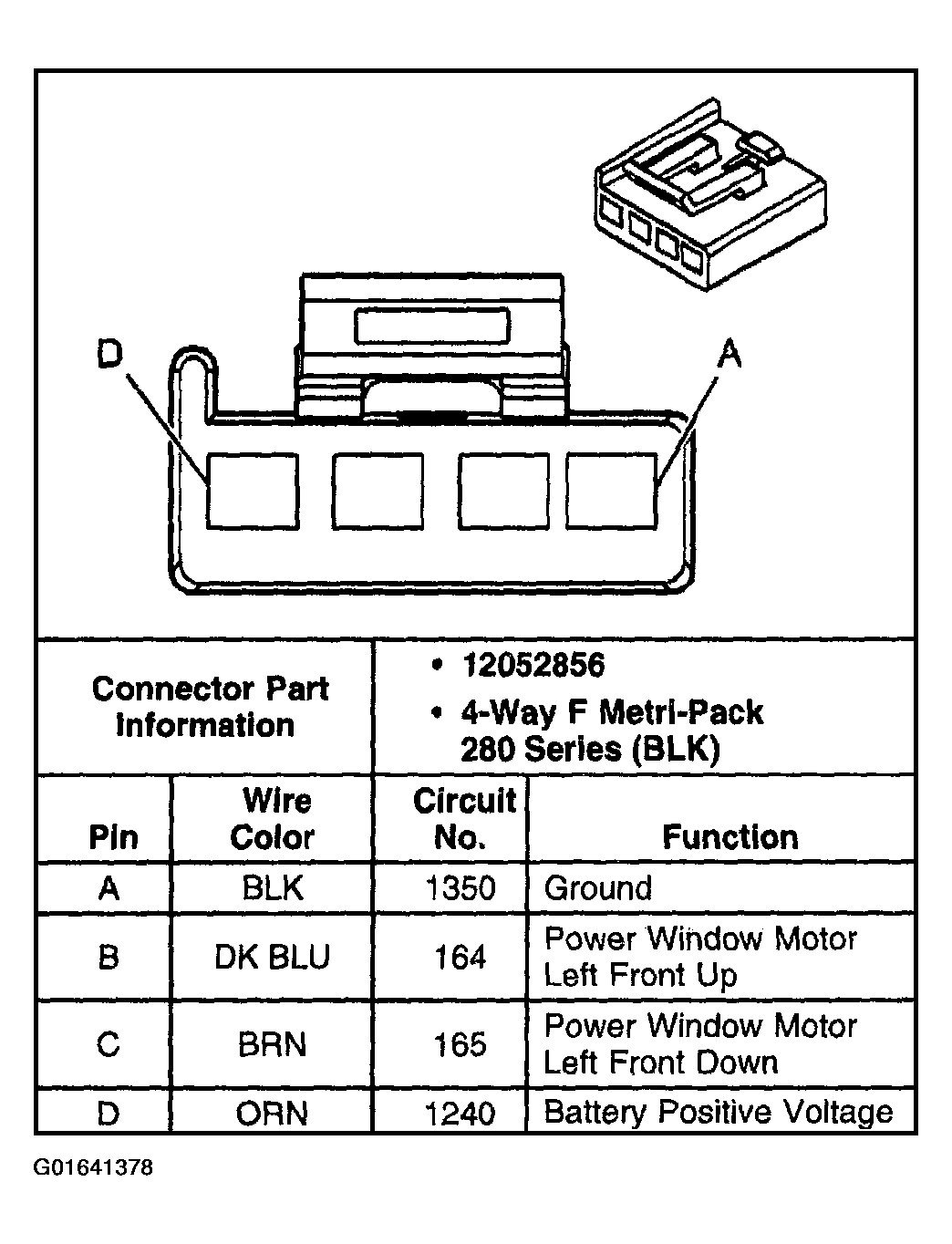

Fig 1: Driver Door Module (DDM) Connector End View C1

G01641378

Courtesy of GENERAL MOTORS CORP.
