Body Control Module (BCM) Connector End View C3 (1 Of 2)

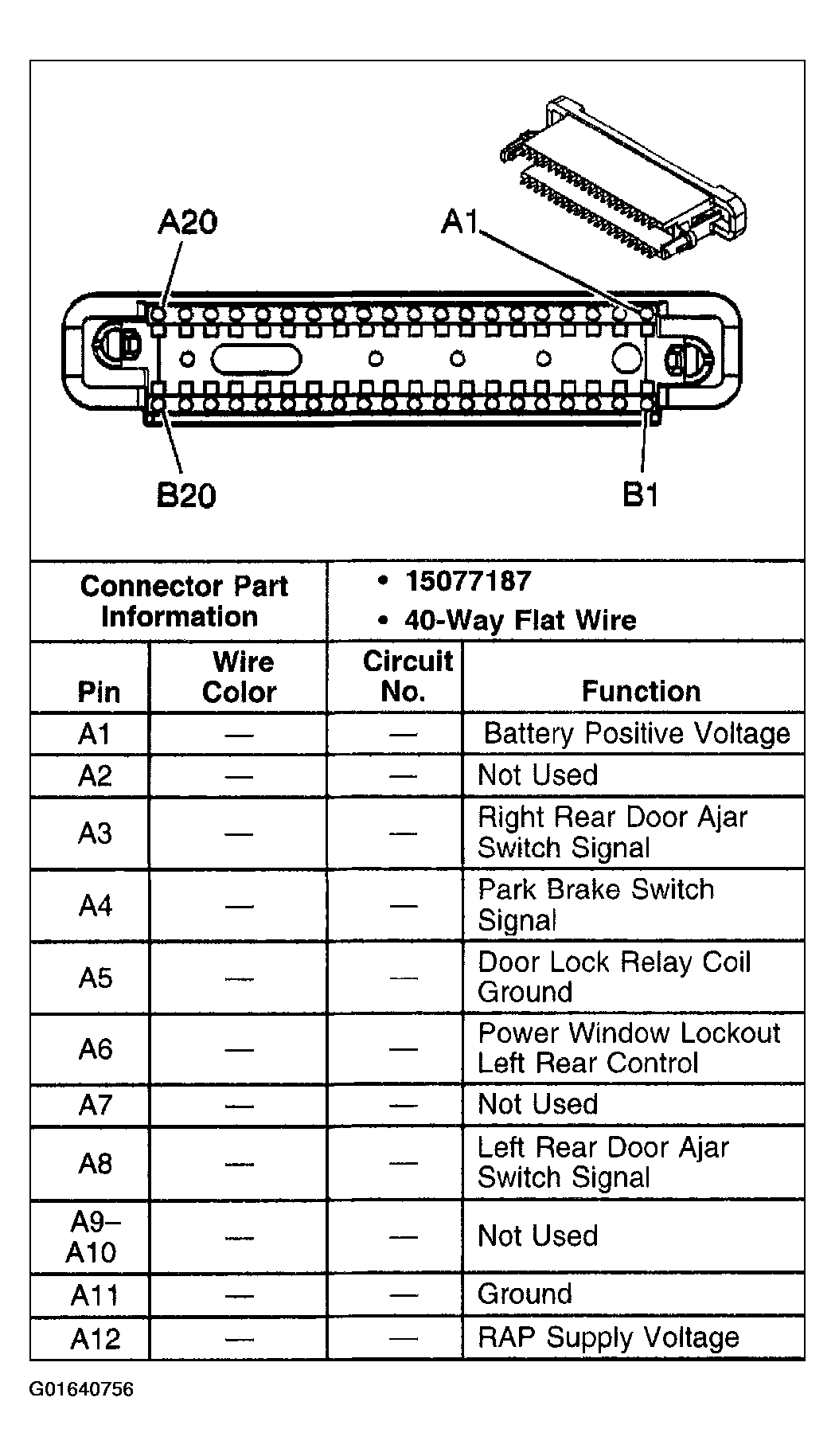

Fig 1: Body Control Module (BCM) Connector End View C3 (1 Of 2)

G01640756

Courtesy of GENERAL MOTORS CORP.
