Engine Front Cover

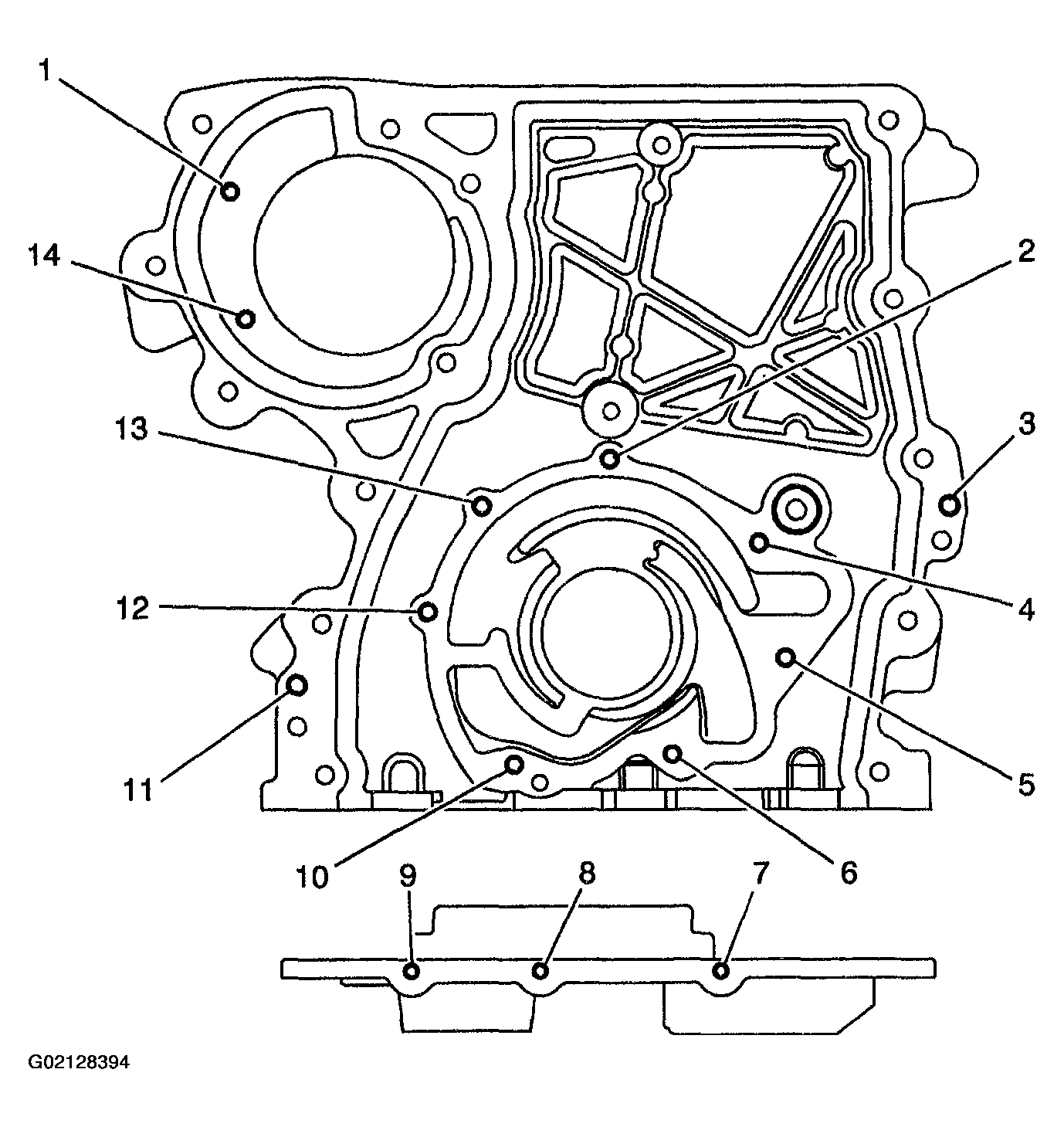

Fig 1: Thread Repair Specifications - Engine Front Cover
G02128394Courtesy of GENERAL MOTORS CORP.

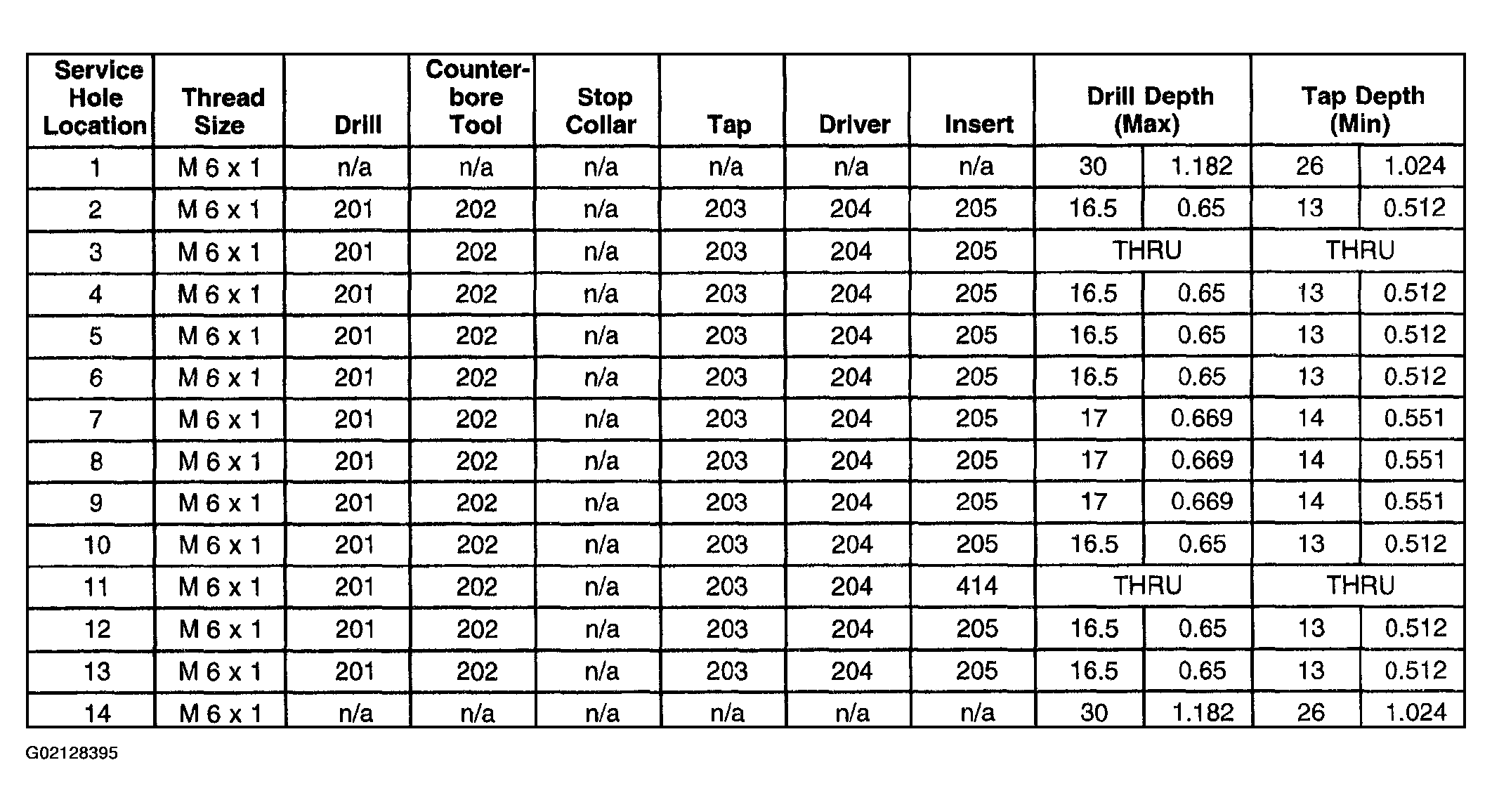

Fig 2: Thread Repair Specifications - Engine Front Cover Callouts
G02128395Courtesy of GENERAL MOTORS CORP.
