Turn Signal/Multifunction Switch Connector End View C2

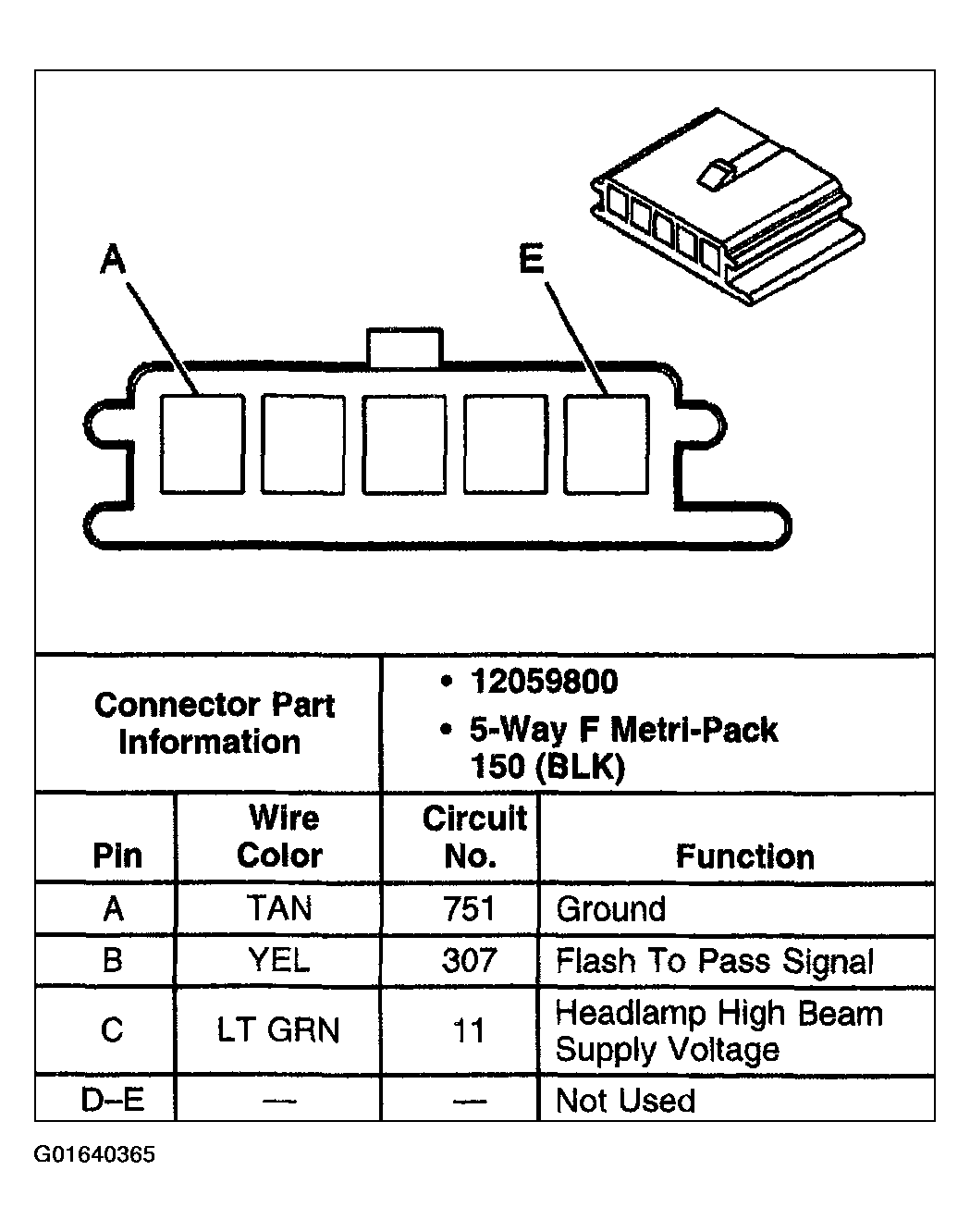

Fig 1: Turn Signal/Multifunction Switch Connector End View C2

G01640365

Courtesy of GENERAL MOTORS CORP.
