Throttle Actuator Control Module Connector End View C2

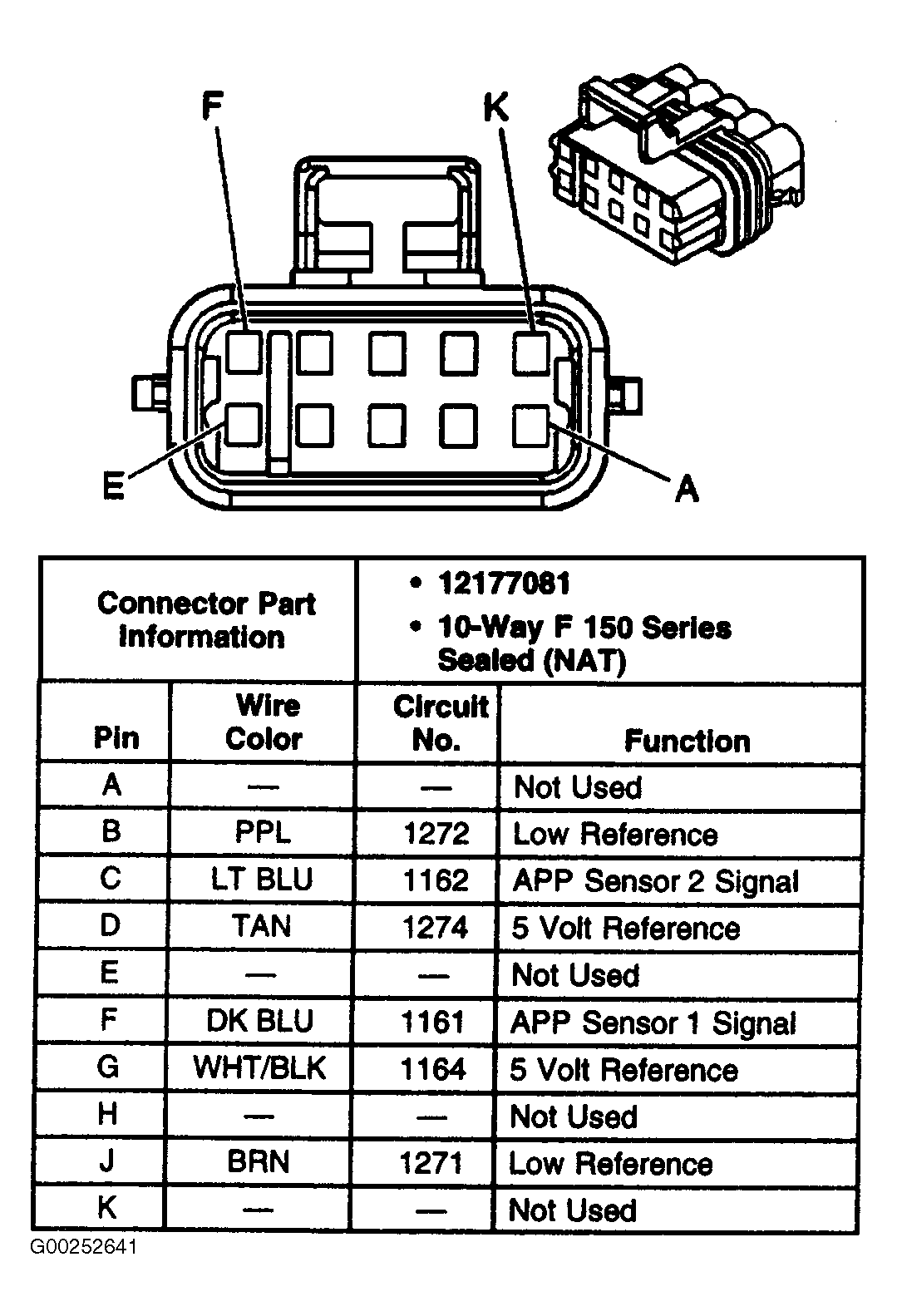

Fig 1: Throttle Actuator Control Module Connector End View C2

G00252641

Courtesy of GENERAL MOTORS CORP.
