Throttle Actuator Control Module Connector End View C1

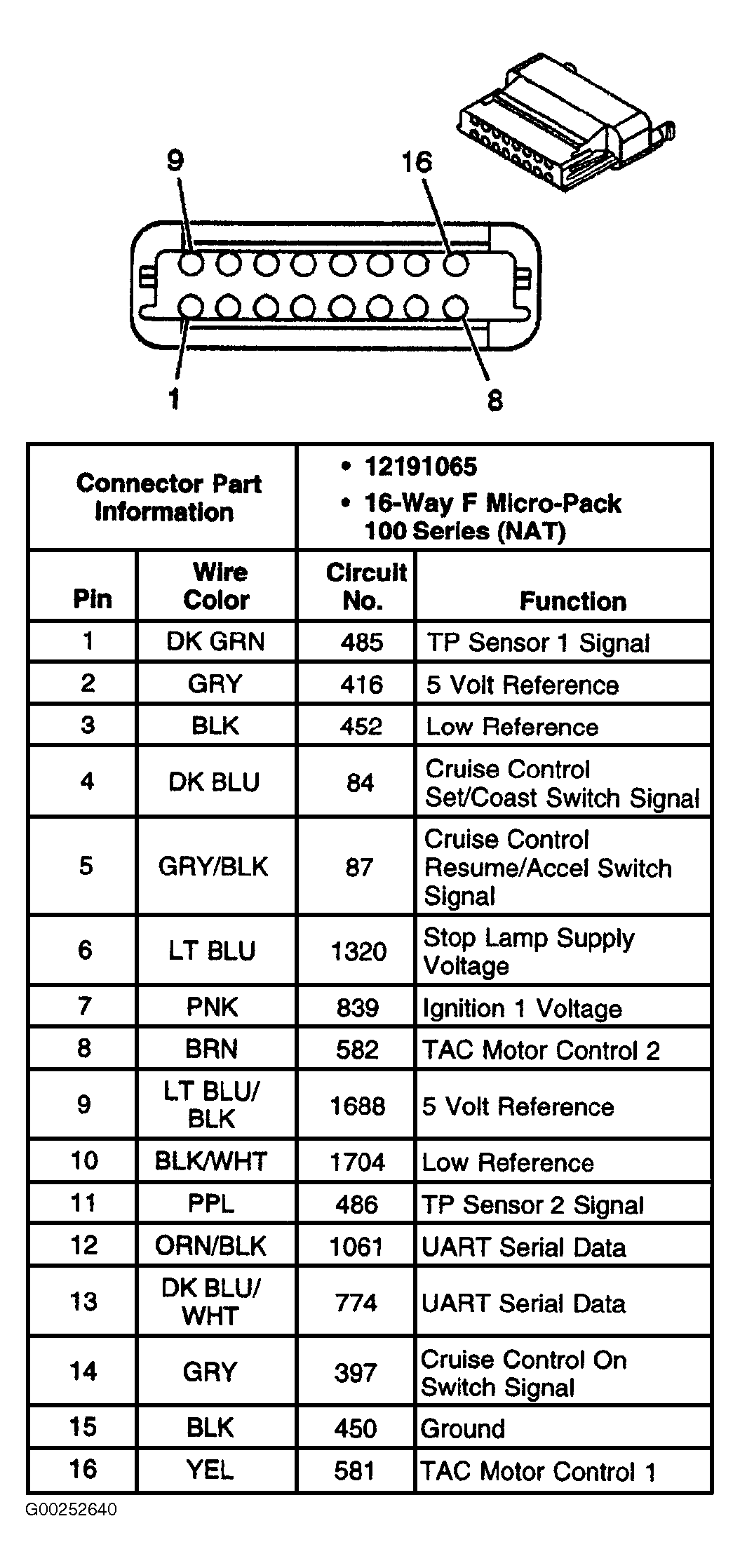

Fig 1: Throttle Actuator Control Module Connector End View C1

G00252640

Courtesy of GENERAL MOTORS CORP.
