Powertrain Control Module Connector End View C2 (2 Of 3)

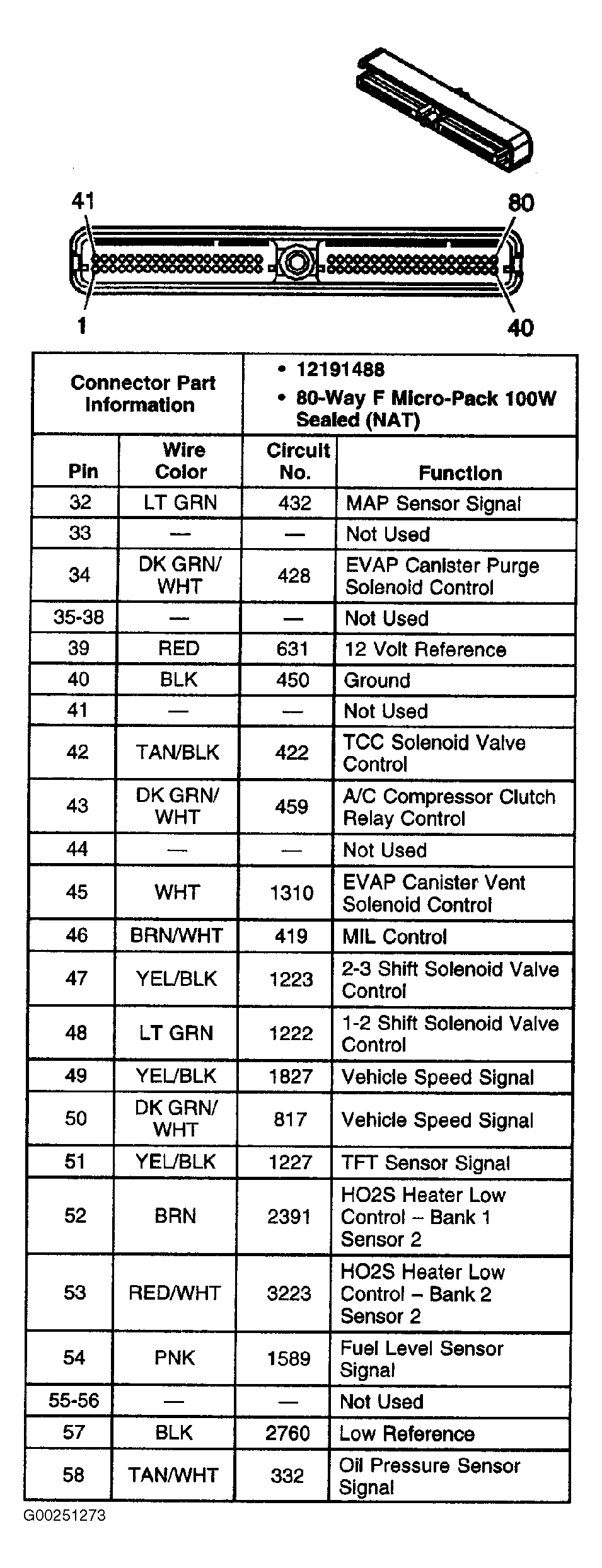

Fig 1: Powertrain Control Module Connector End View C2 (2 Of 3)

G00251273

Courtesy of GENERAL MOTORS CORP.
