Mirror Switch, Driver Door Module (DDM) Connector End View C5

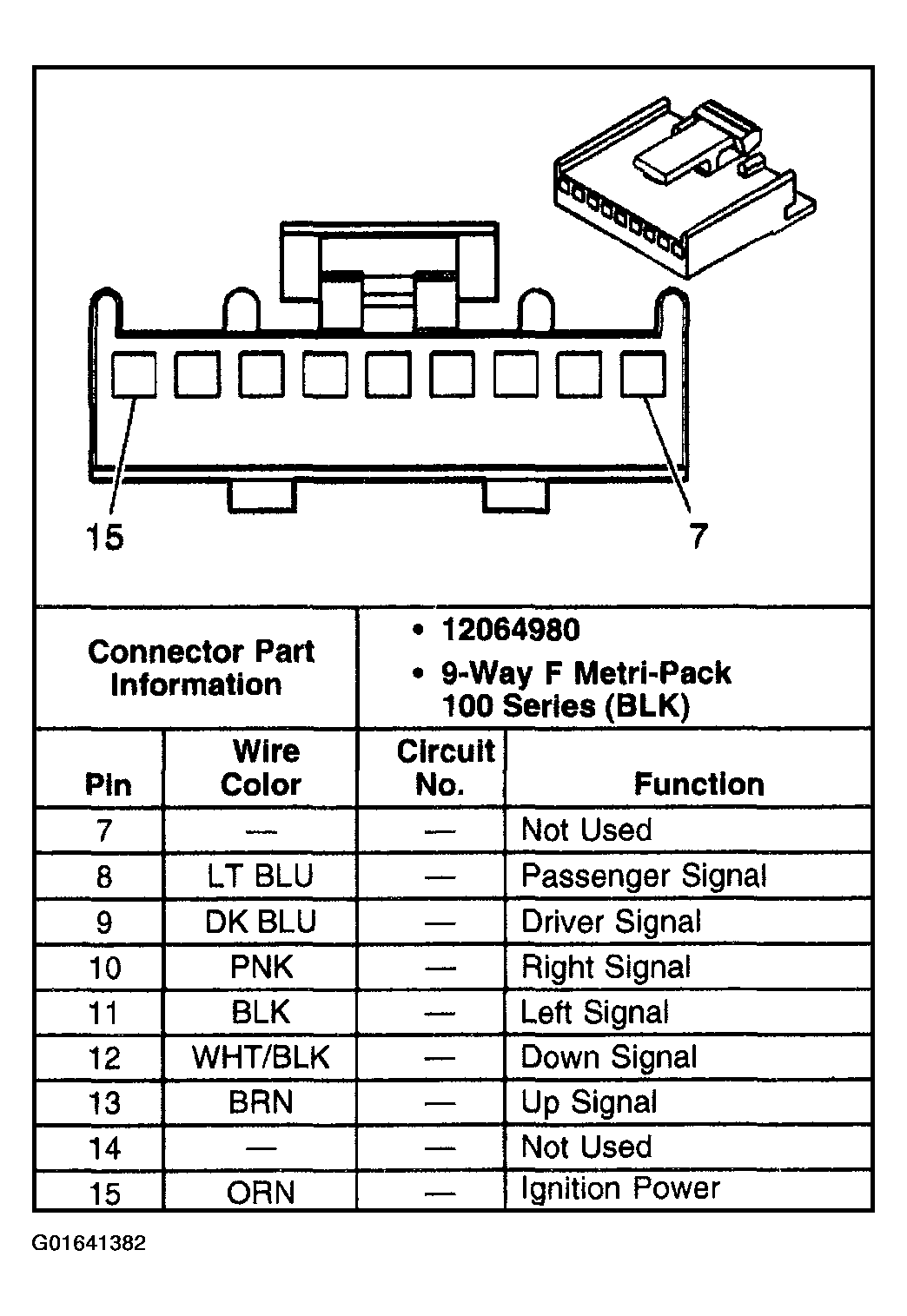

Fig 1: Mirror Switch, Driver Door Module (DDM) Connector End View C5

G01641382

Courtesy of GENERAL MOTORS CORP.
