HVAC control Module Connector End View C2

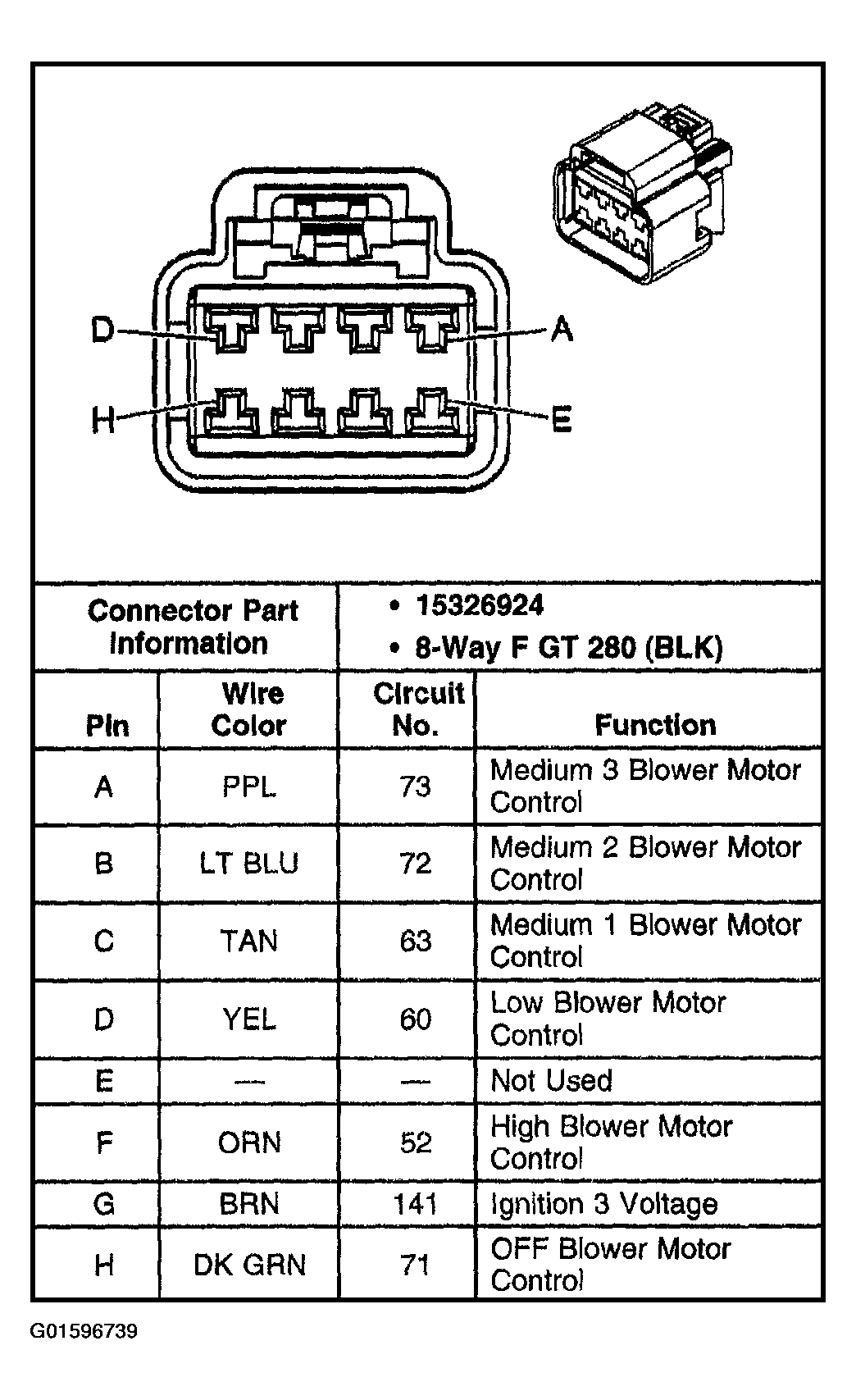

Fig 1: HVAC control Module Connector End View C2
G01596739Courtesy of GENERAL MOTORS CORP.

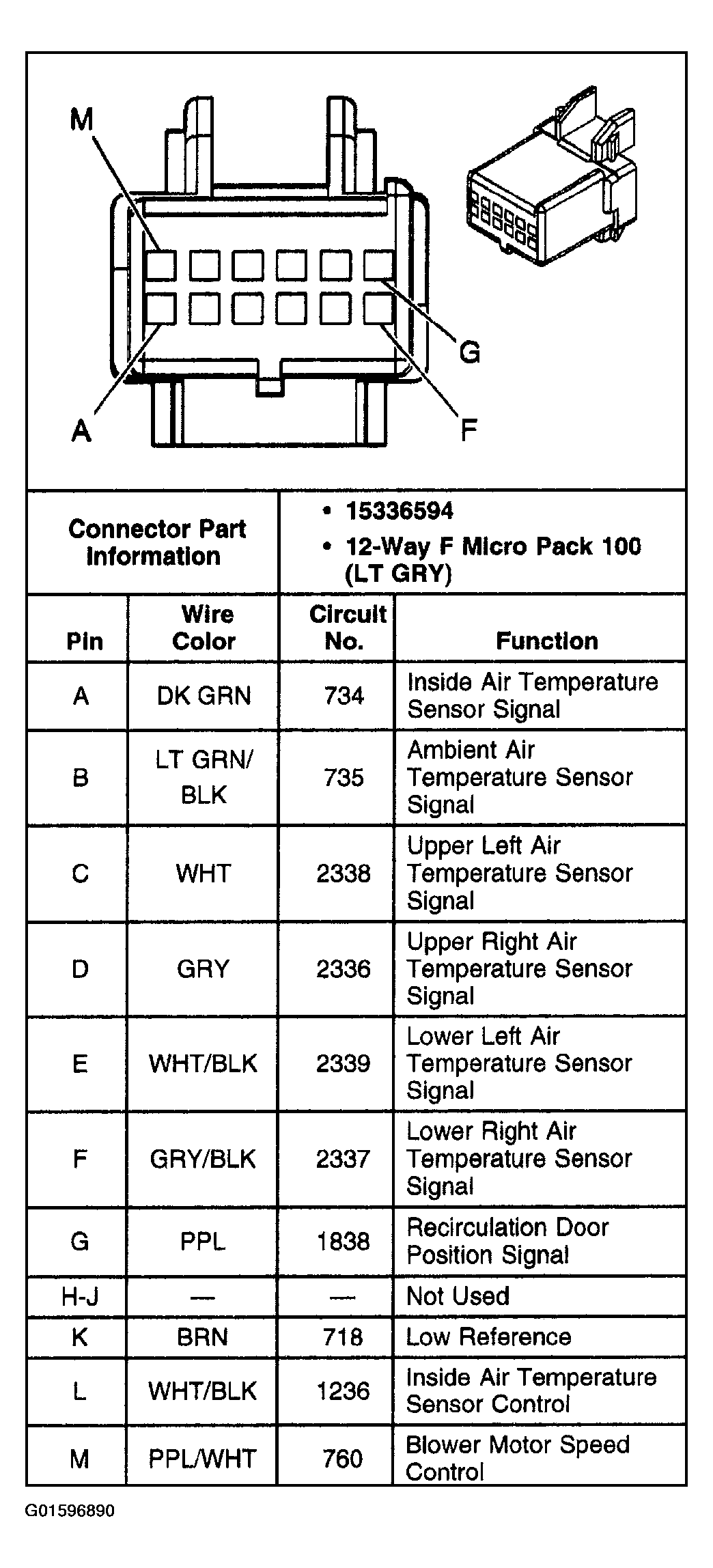

Fig 1: HVAC Control Module Connector End View C2
G01596890Courtesy of GENERAL MOTORS CORP.
