Turn Signal/Hazard Flasher Module Connector End View

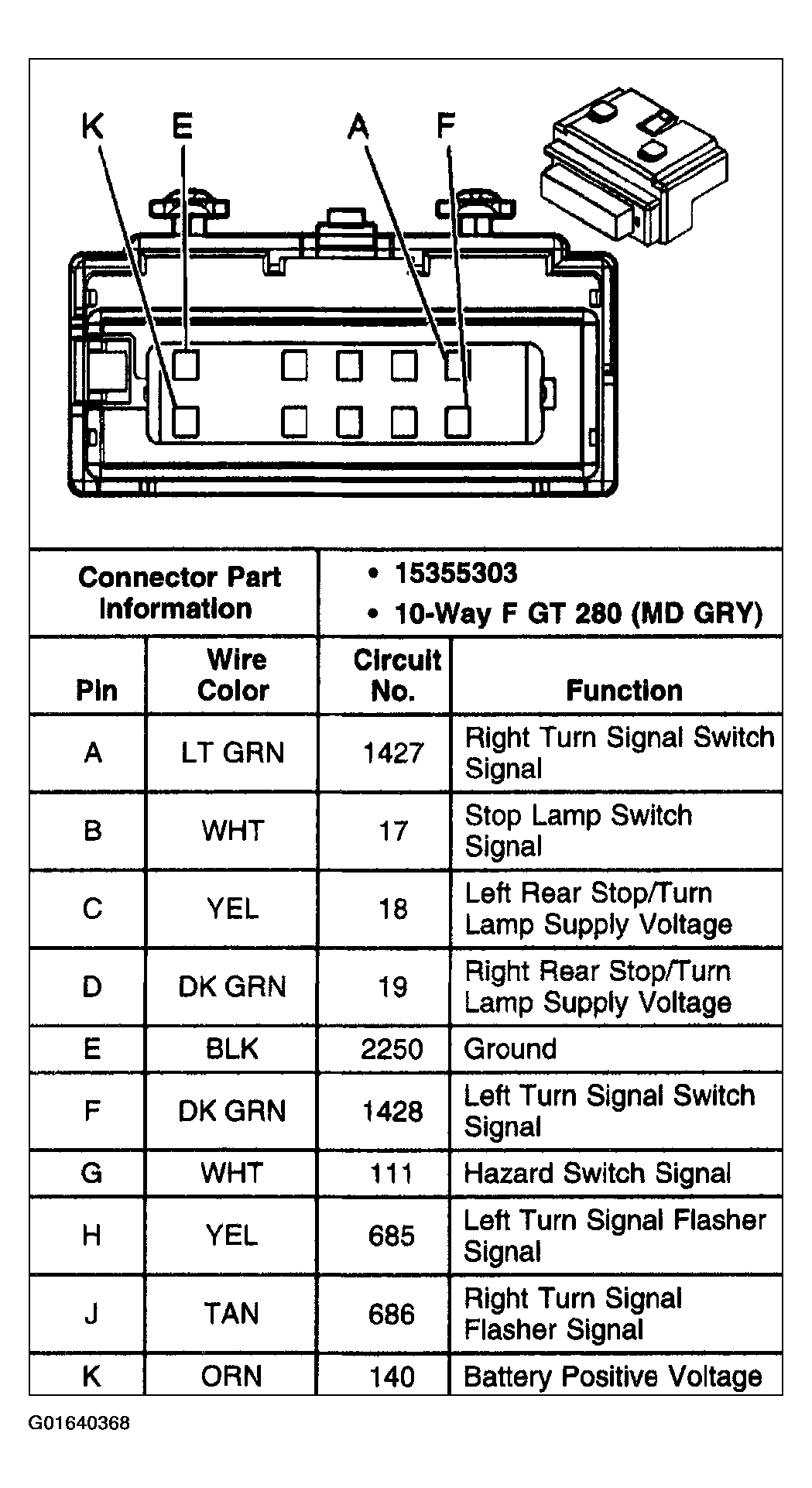

Fig 1: Turn Signal/Hazard Flasher Module Connector End View

G01640368

Courtesy of GENERAL MOTORS CORP.
