Memory Seat Module Connector End View - Passenger C2

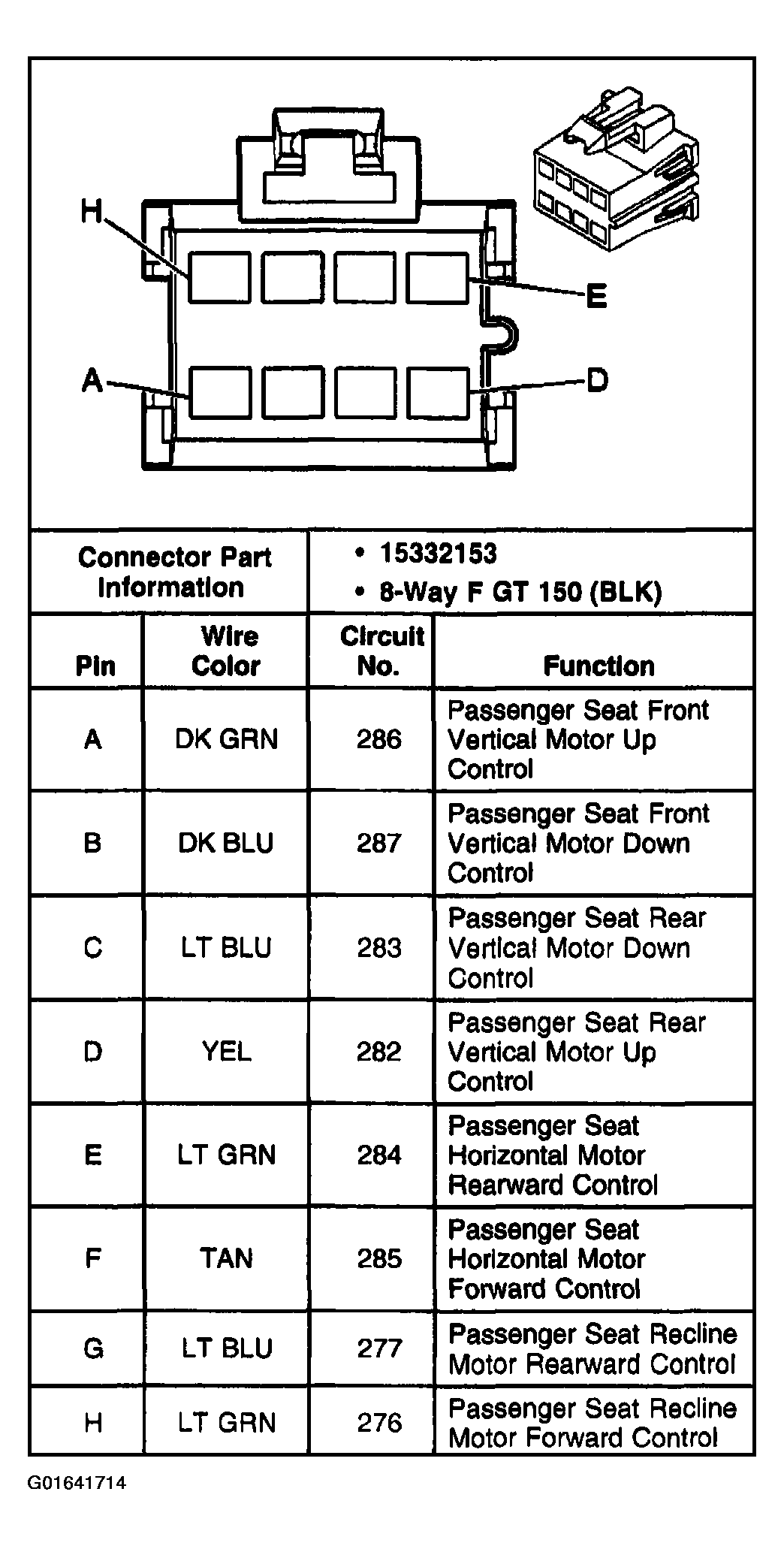

Fig 1: Memory Seat Module Connector End View - Passenger C2

G01641714

Courtesy of GENERAL MOTORS CORP.
