Front Passenger Door Module Power and Ground

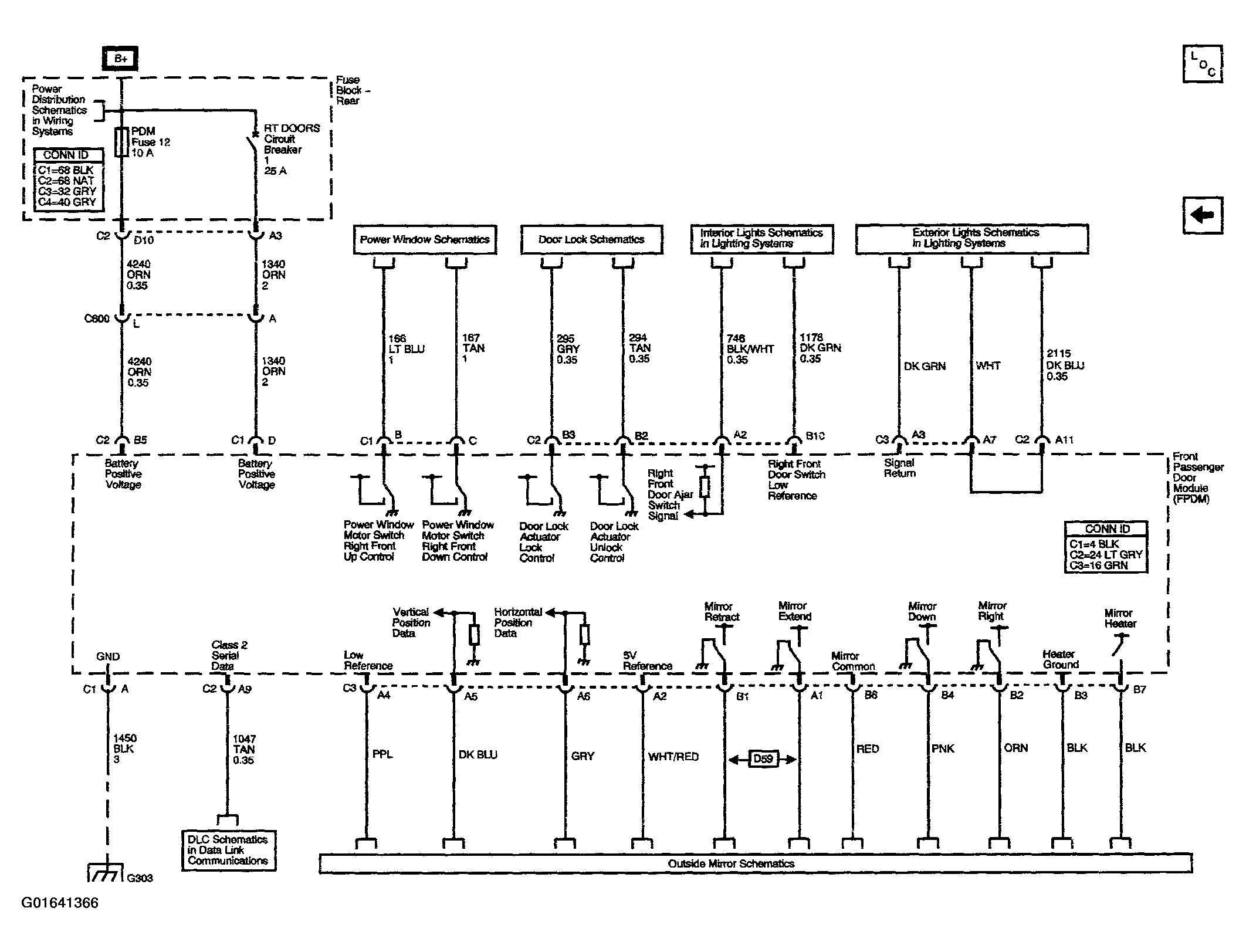

Fig 1: Front Passenger Door Module Power And Ground
G01641366Courtesy of GENERAL MOTORS CORP.
