Power Windows Inoperative - Express Down Function

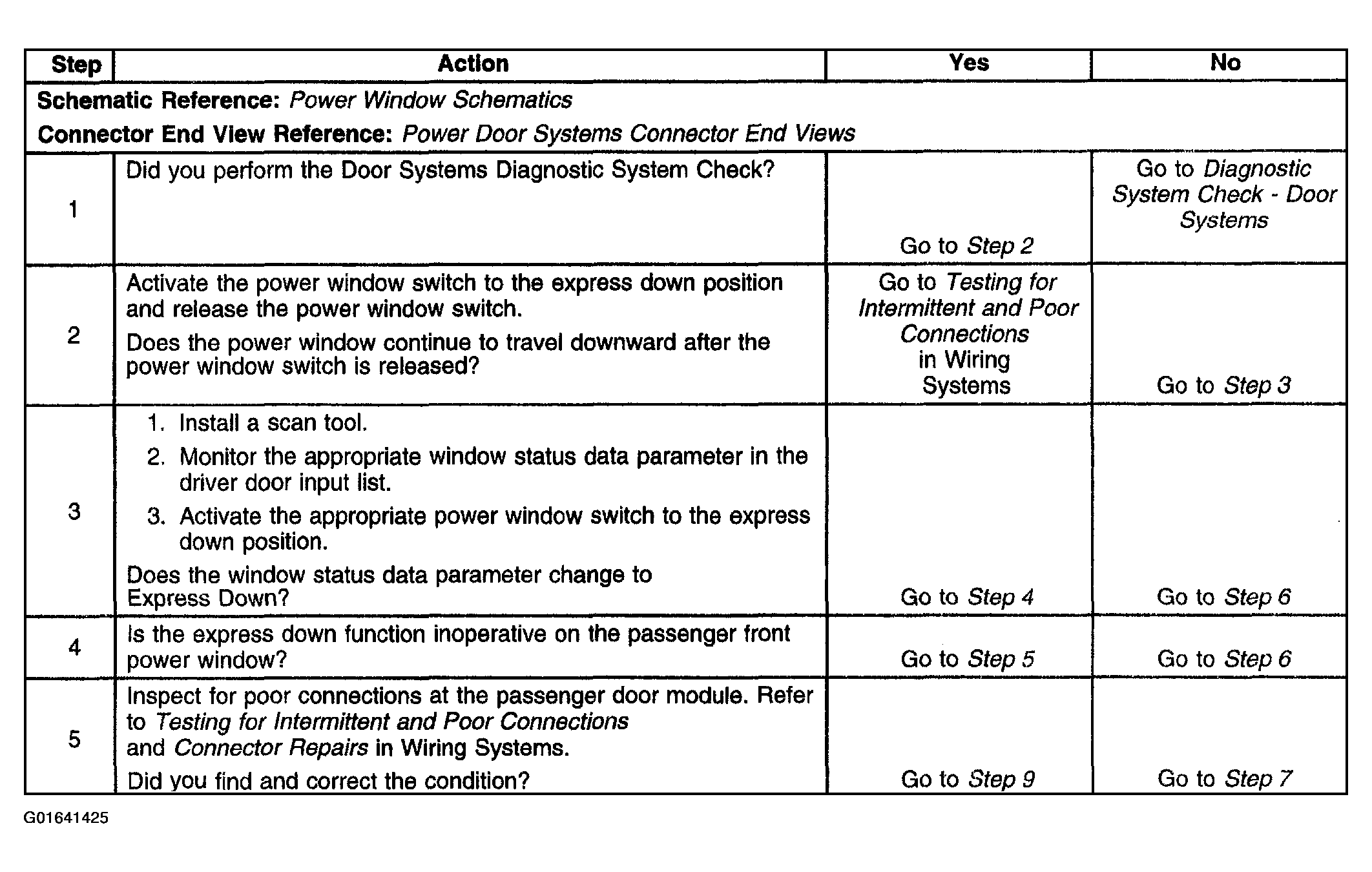

Fig 1: Power Windows Inoperative Symptom Tests - Express Down Function Procedure (Steps 1-5)
G01641425Courtesy of GENERAL MOTORS CORP.

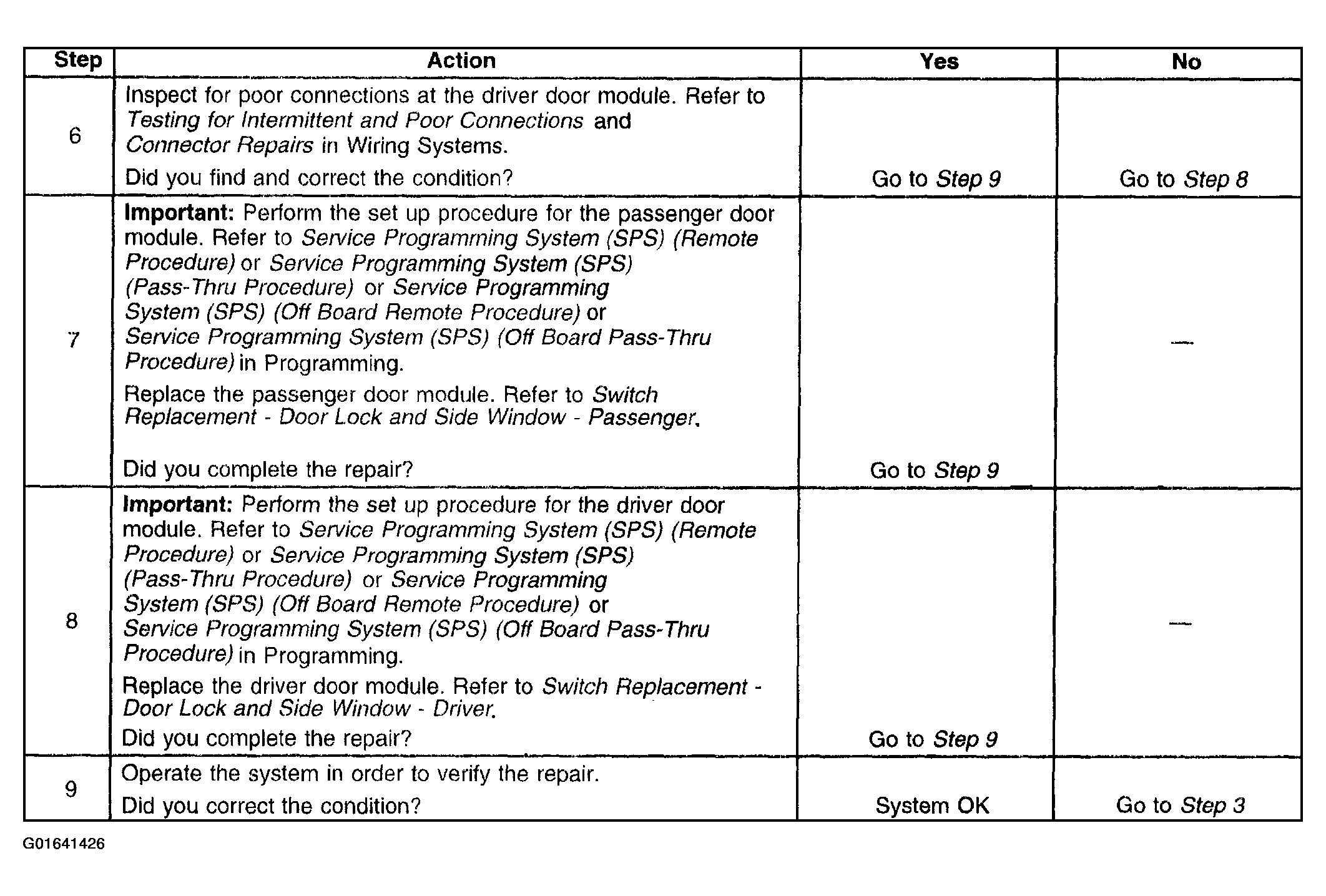

Fig 2: Power Windows Inoperative Symptom Tests - Express Down Function Procedure (Steps 6-9)
G01641426Courtesy of GENERAL MOTORS CORP.
