Removal Procedure

  1. Remove the steering wheel. Refer to STEERING WHEEL REPLACEMENT   .
  2. Remove the shroud retaining screws from the back of the steering wheel.
  3. Remove the shroud from the steering wheel.

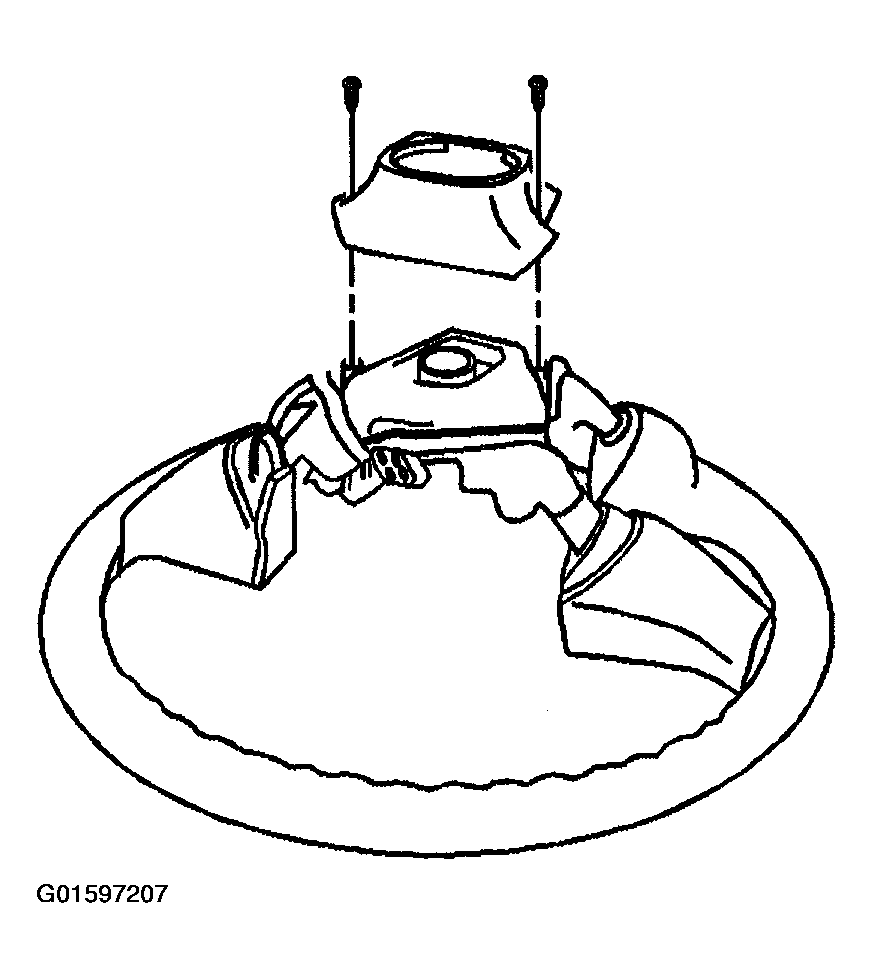

    Fig 1: Removing Steering Wheel Shroud
    G01597207Courtesy of GENERAL MOTORS CORP.
  4. Position a blunt ended tool into the wire harness cavity (1) and apply moderate pressure in order to partially remove the steering wheel control switch from the steering wheel.

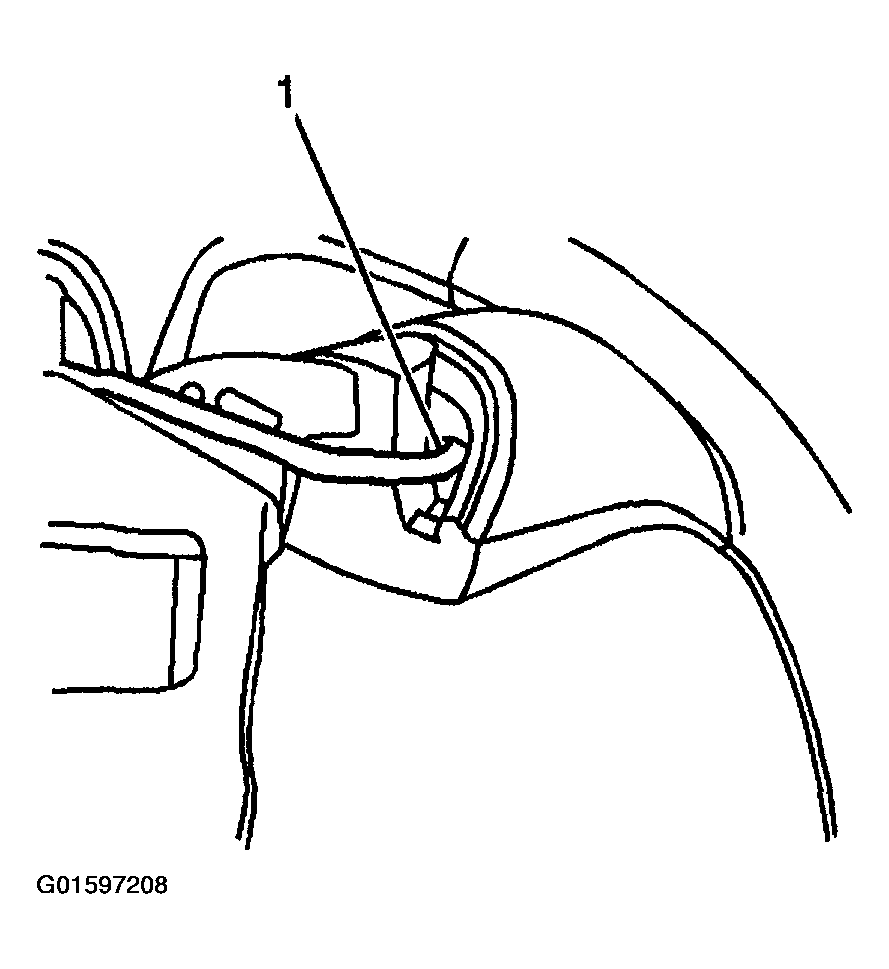

    Fig 2: Positioning Blunt Ended Tool Into Wire Harness Cavity
    G01597208Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the steering wheel control switch electrical connector.
    IMPORTANT: The bulbs in the steering wheel control switches are not serviceable. The switches should be replaced only as an assembly.
  6. Remove the steering wheel control switch from the steering wheel.

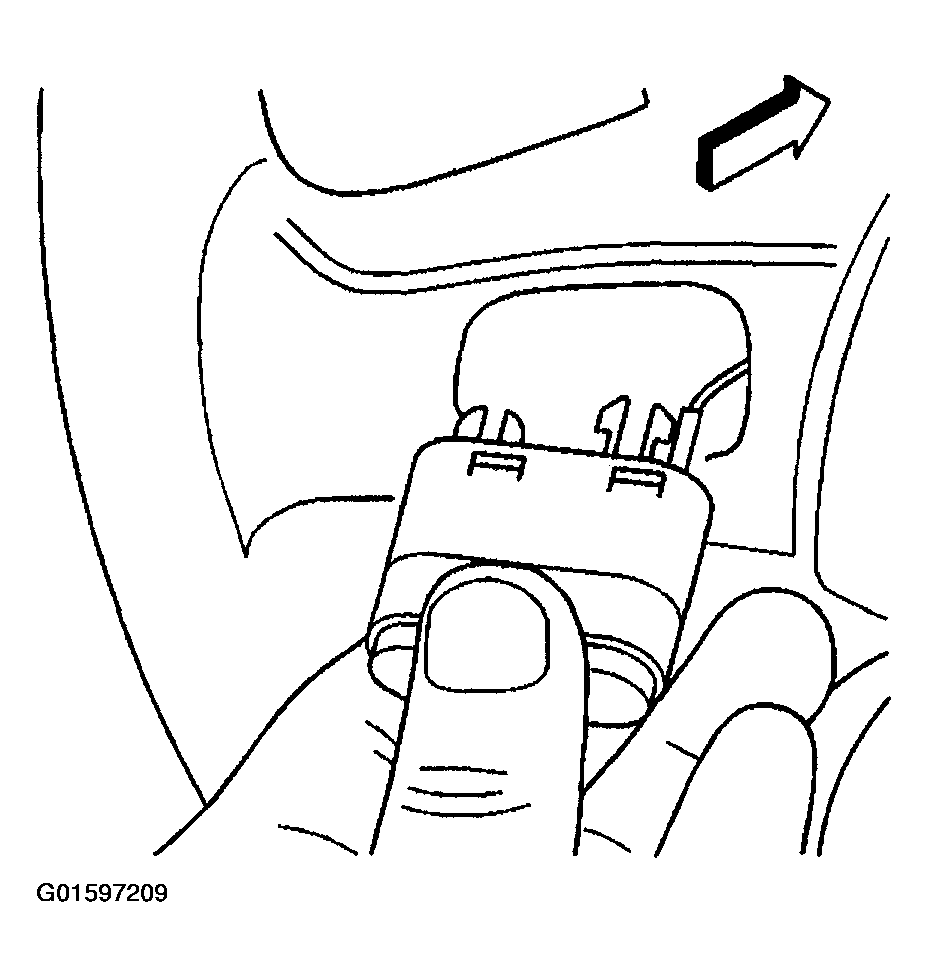

    Fig 3: Removing Steering Wheel Control Switch From Steering Wheel
    G01597209Courtesy of GENERAL MOTORS CORP.
