Wiper/Washer System Schematics (Rear Wiper/Washer)
Wiper/Washer System Schematics (Rear Wiper/Washer)

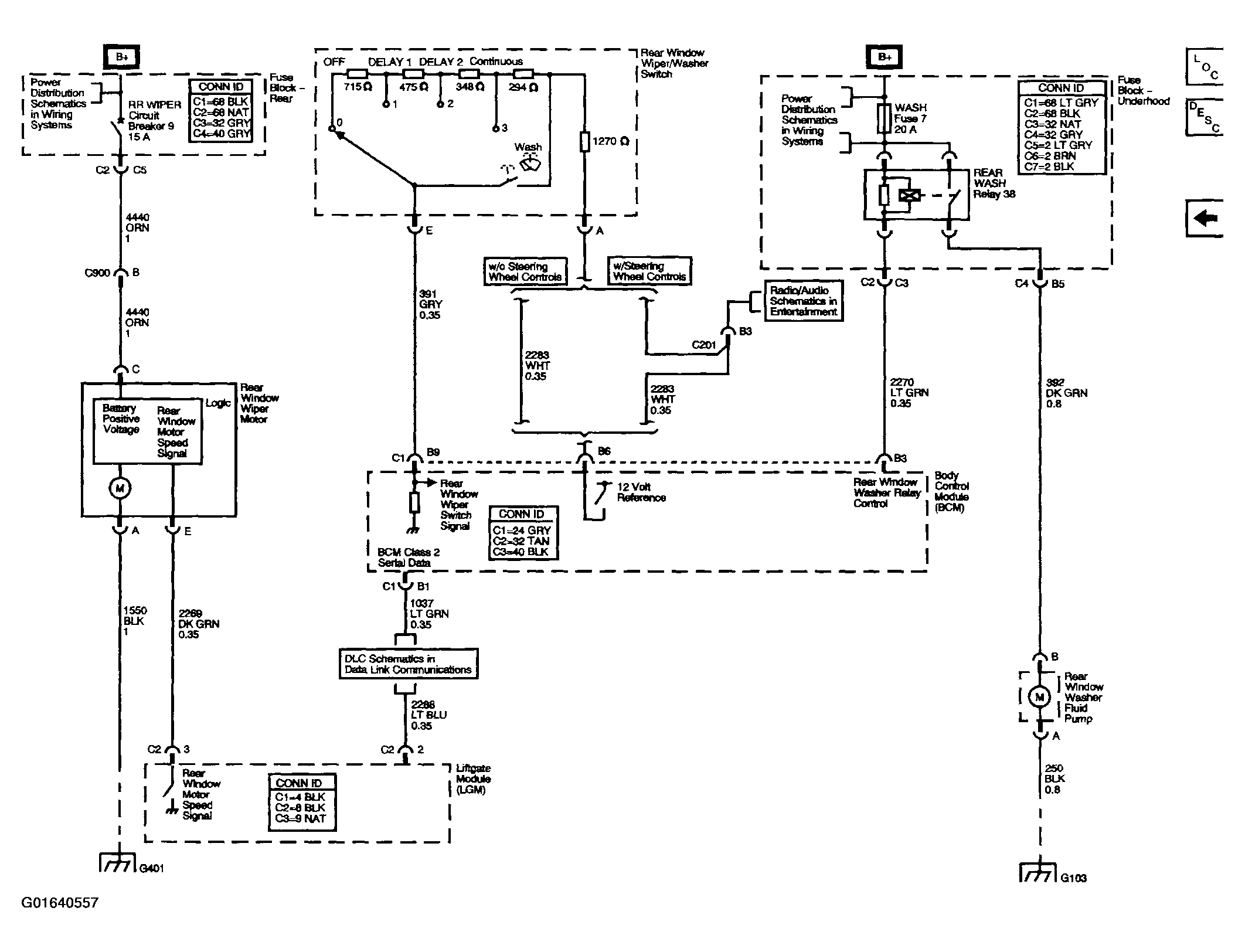

Fig 1: Wiper/Washer System Schematic Diagram (Rear Wiper/Washer)
Courtesy of GENERAL MOTORS CORP.
