Wiper/Washer System Schematics (Outside Moisture Sensor and Front Wiper/Washer Motor)

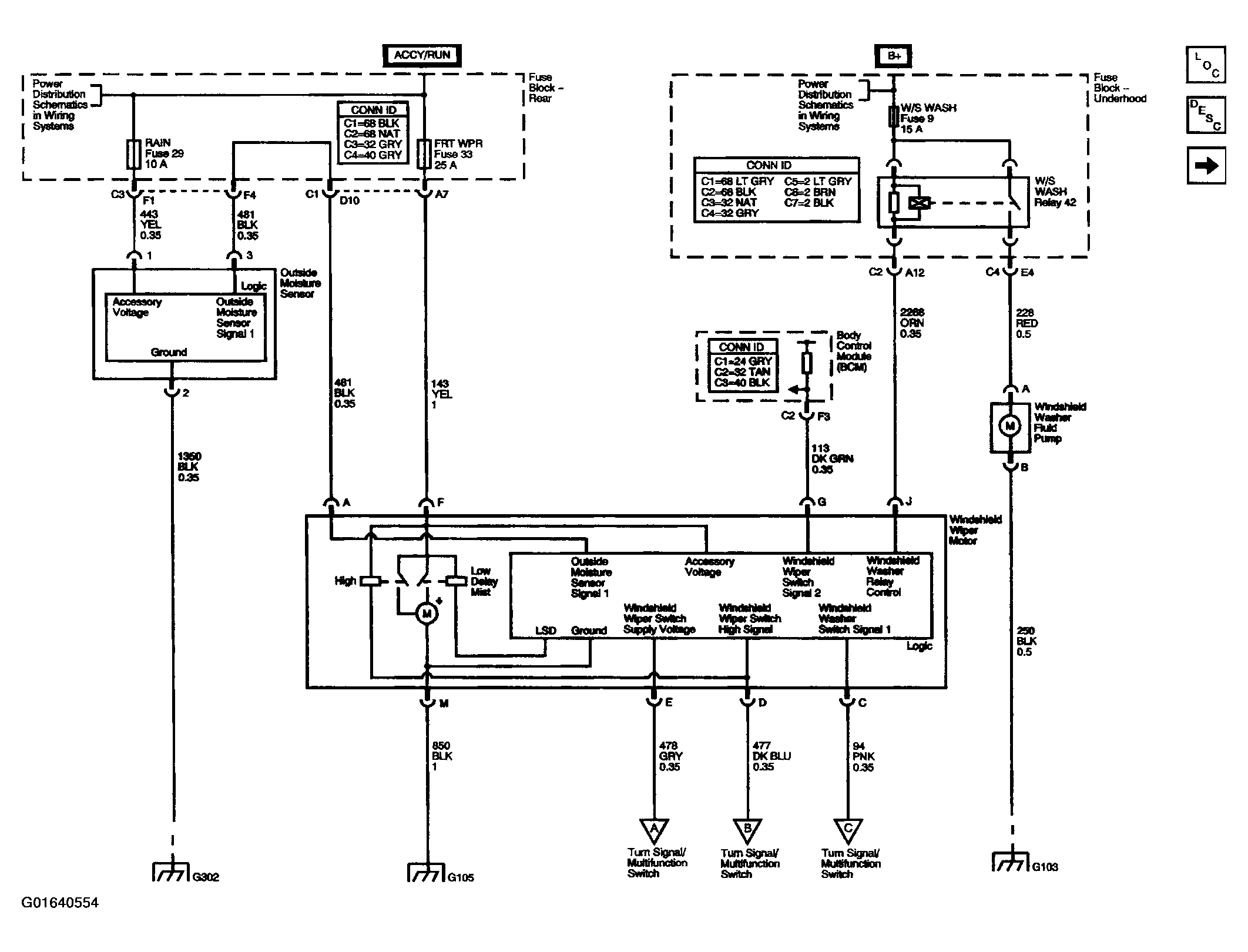

Fig 1: Wiper/Washer System Schematic Diagram (Outside Moisture Sensor & Front Wiper/Washer Motor)
G01640554Courtesy of GENERAL MOTORS CORP.
