Wiper/Washer System Schematics (Headlamp Washer)

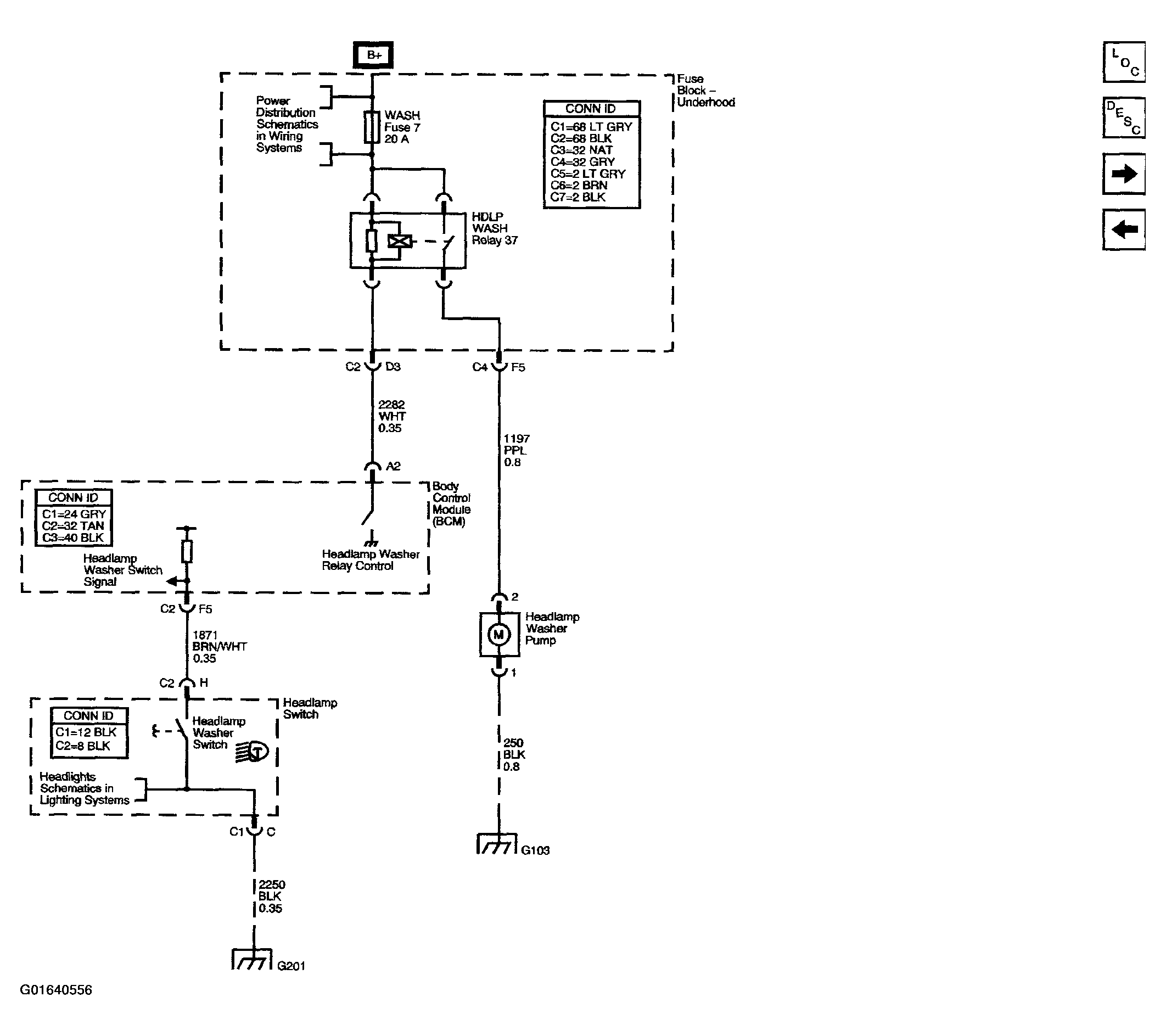

Fig 1: Wiper/Washer System Schematic Diagram (Headlamp Washer)

G01640556

Courtesy of GENERAL MOTORS CORP.
