Lighting Systems Component Views

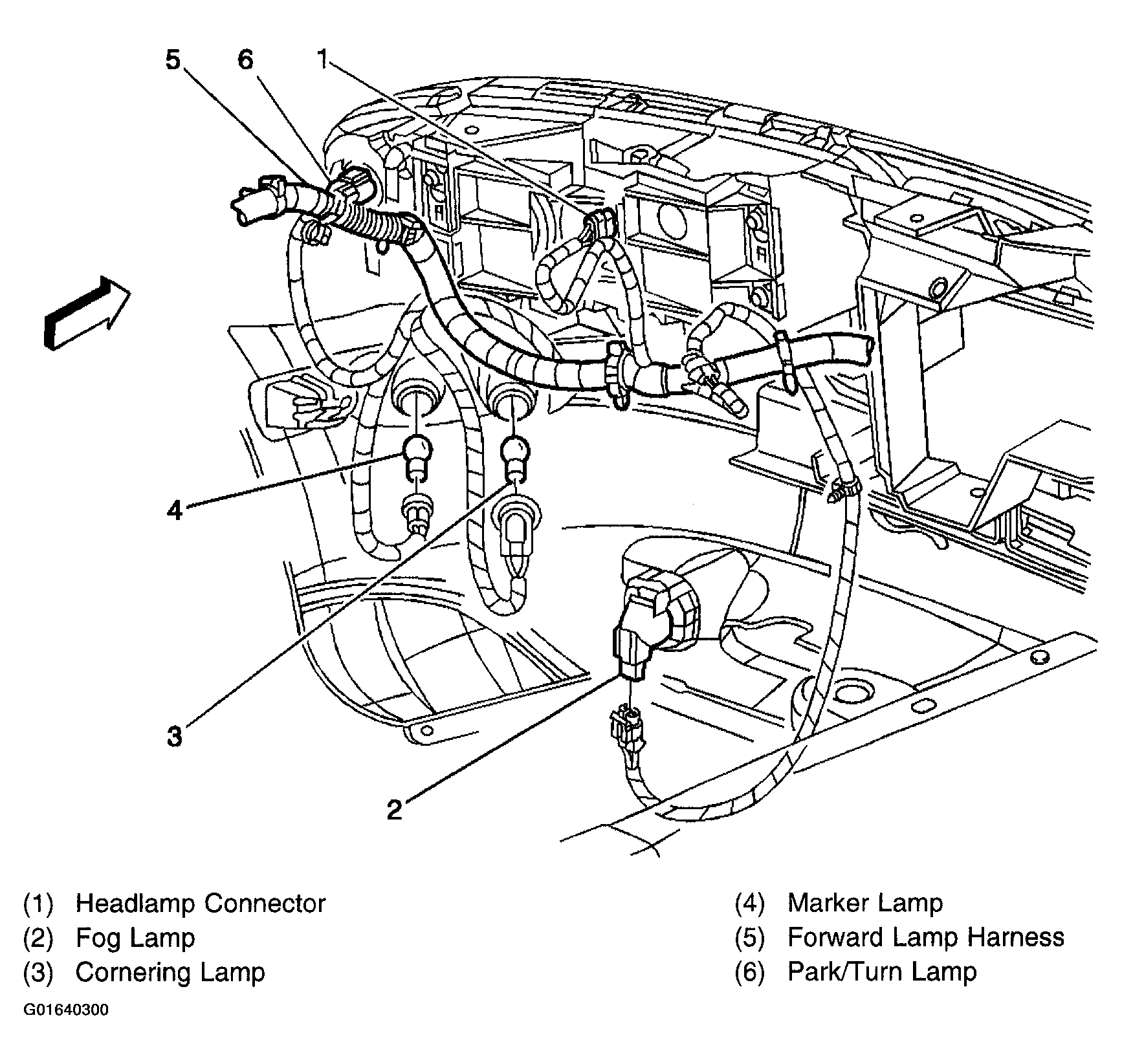

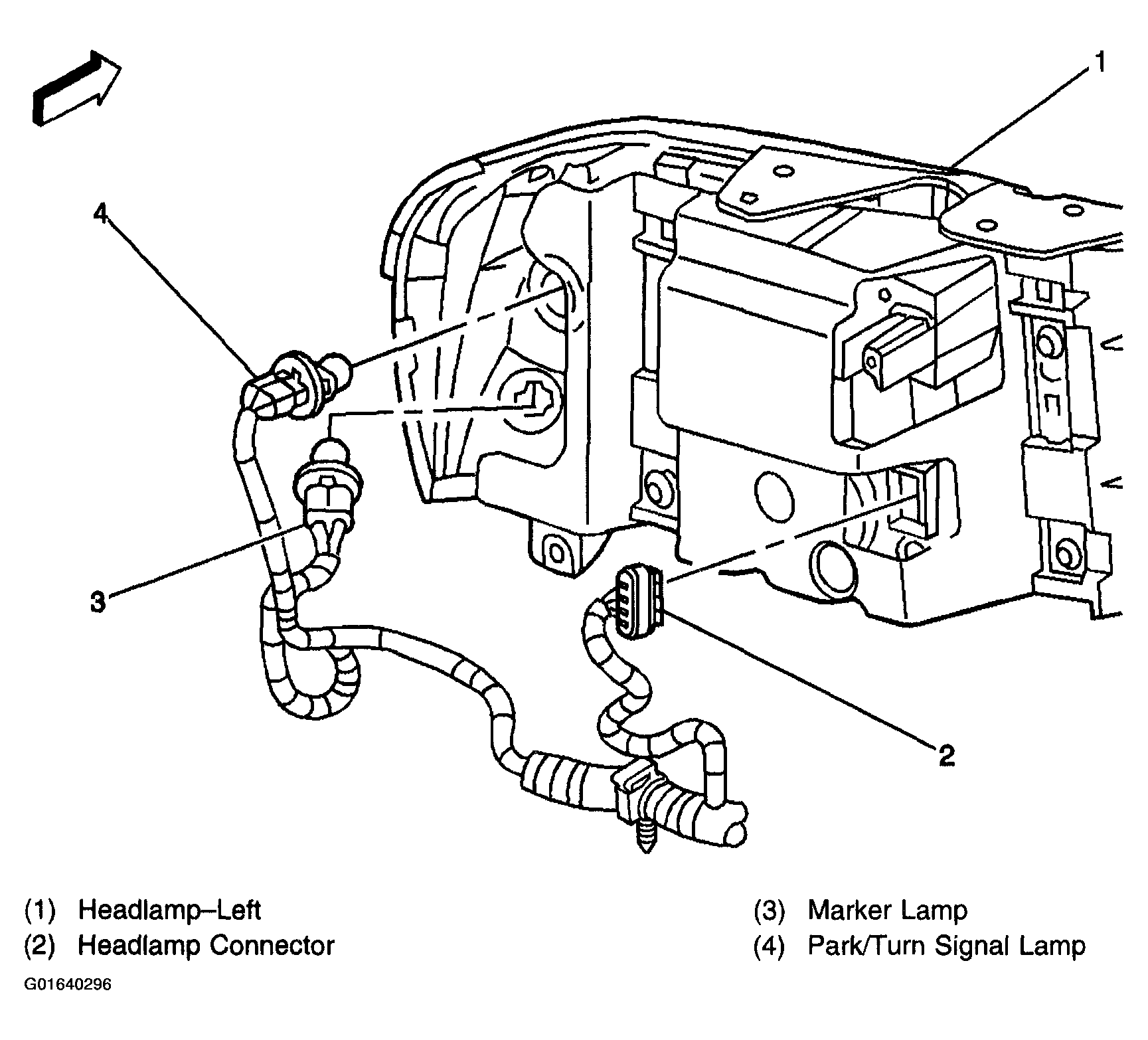

Fig 1: Locating Front Lamps, GMC Components

Courtesy of GENERAL MOTORS CORP.

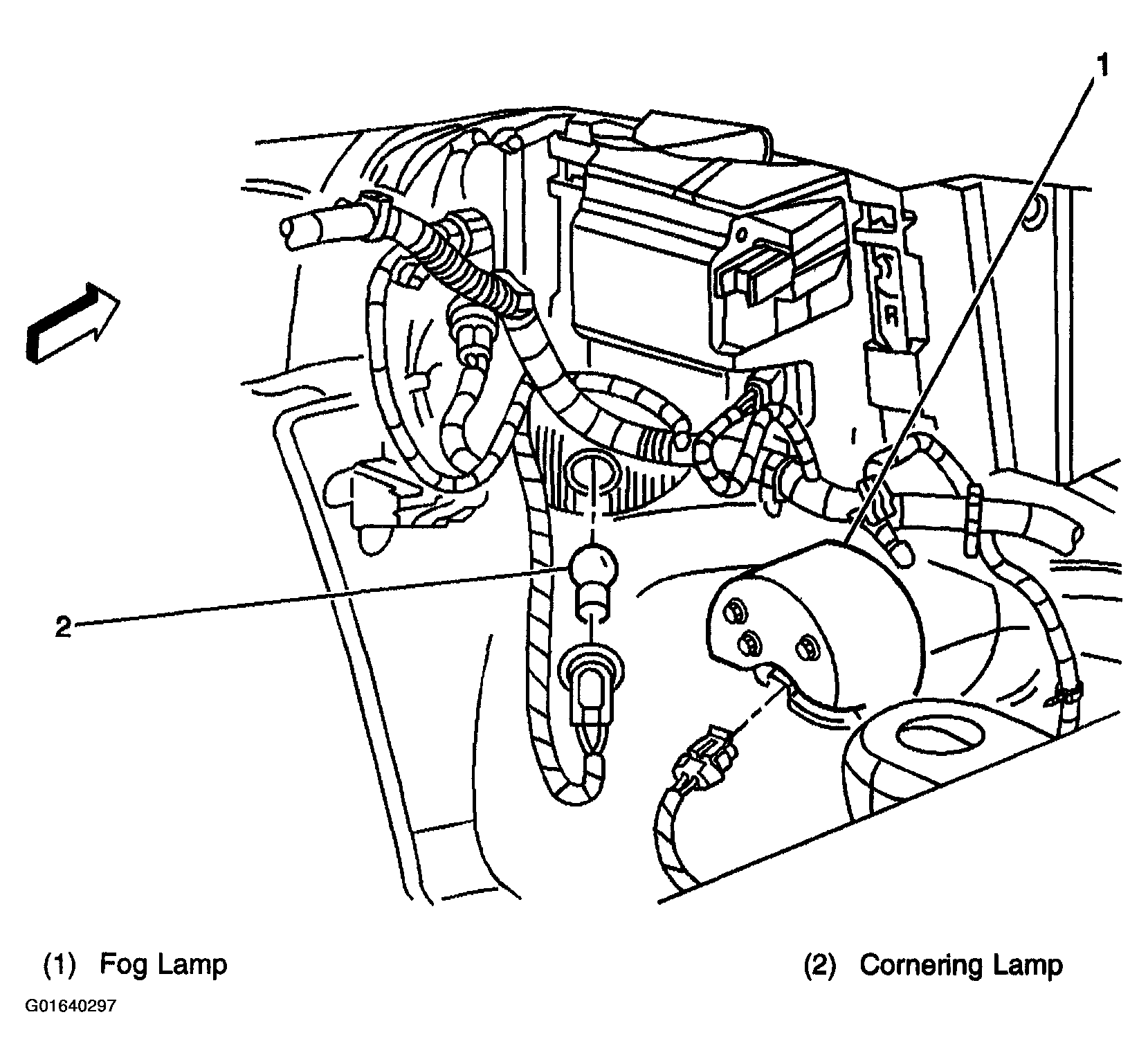

Fig 2: Locating Fog Lamp and Cornering Lamp, GMC Components

Courtesy of GENERAL MOTORS CORP.

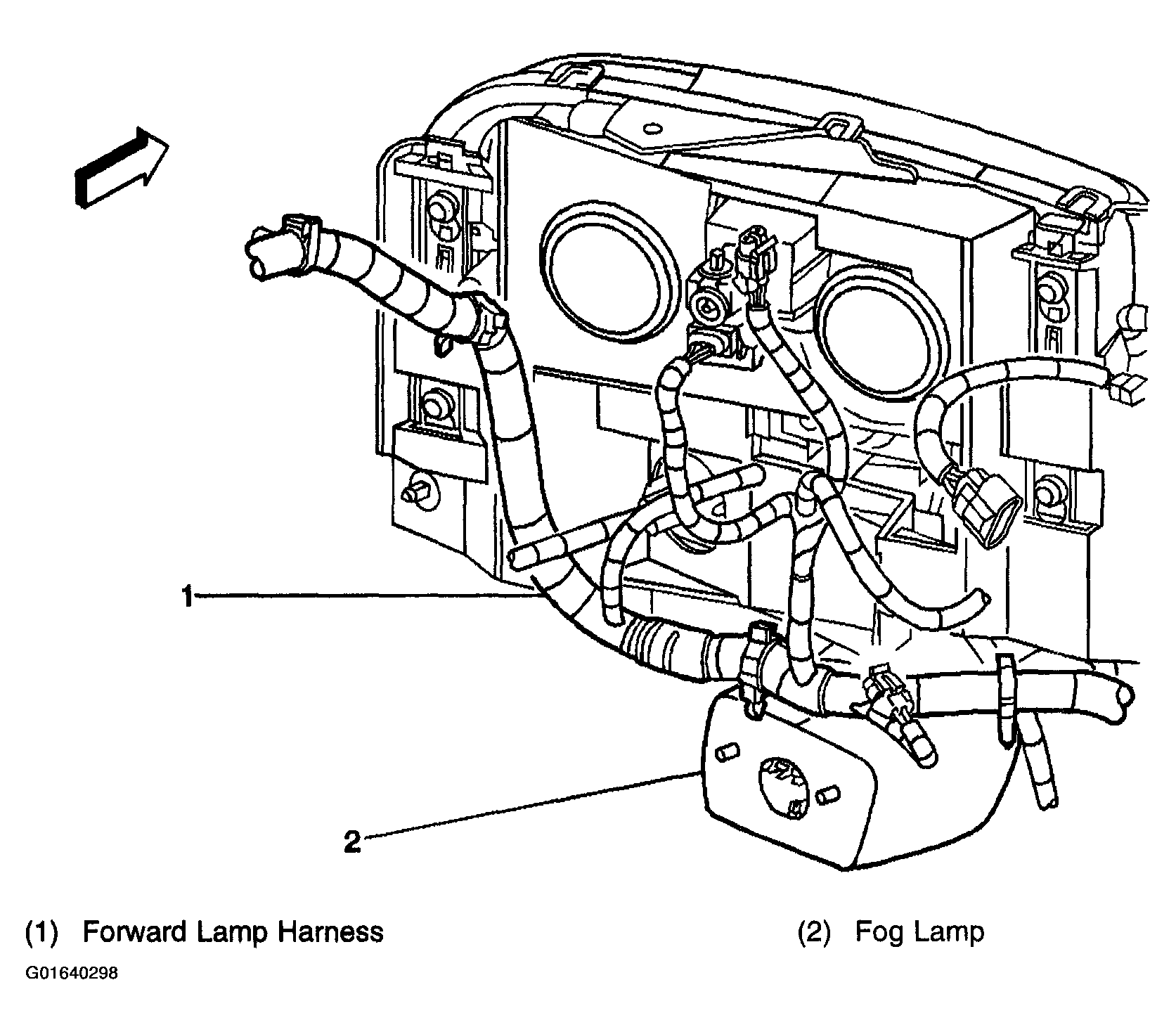

Fig 3: Locating Fog Lamp, Chevrolet Components

Courtesy of GENERAL MOTORS CORP.

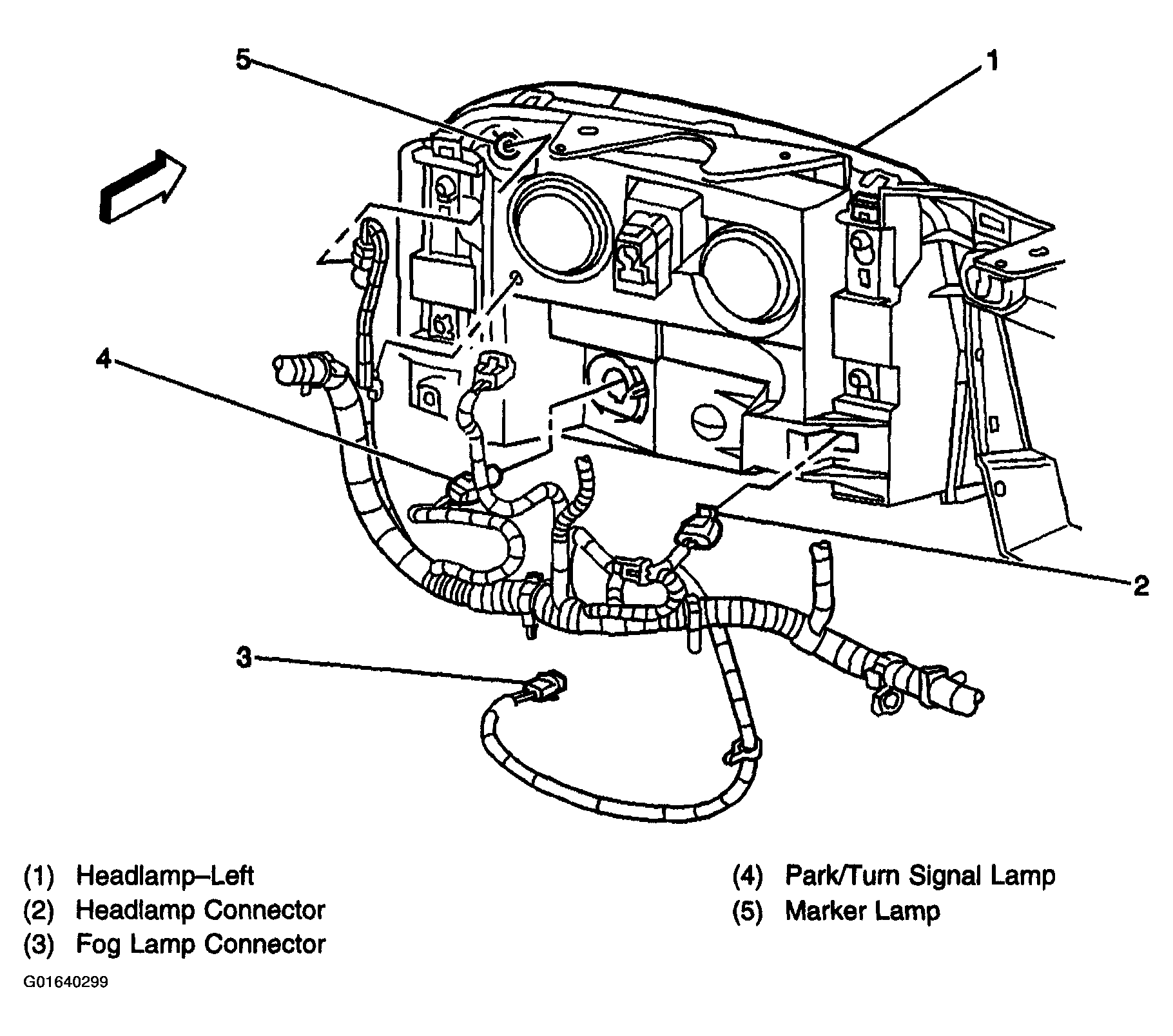

Fig 4: Locating Front Lamps, Chevrolet Components

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Front Lamps, Oldsmobile Components

Courtesy of GENERAL MOTORS CORP.

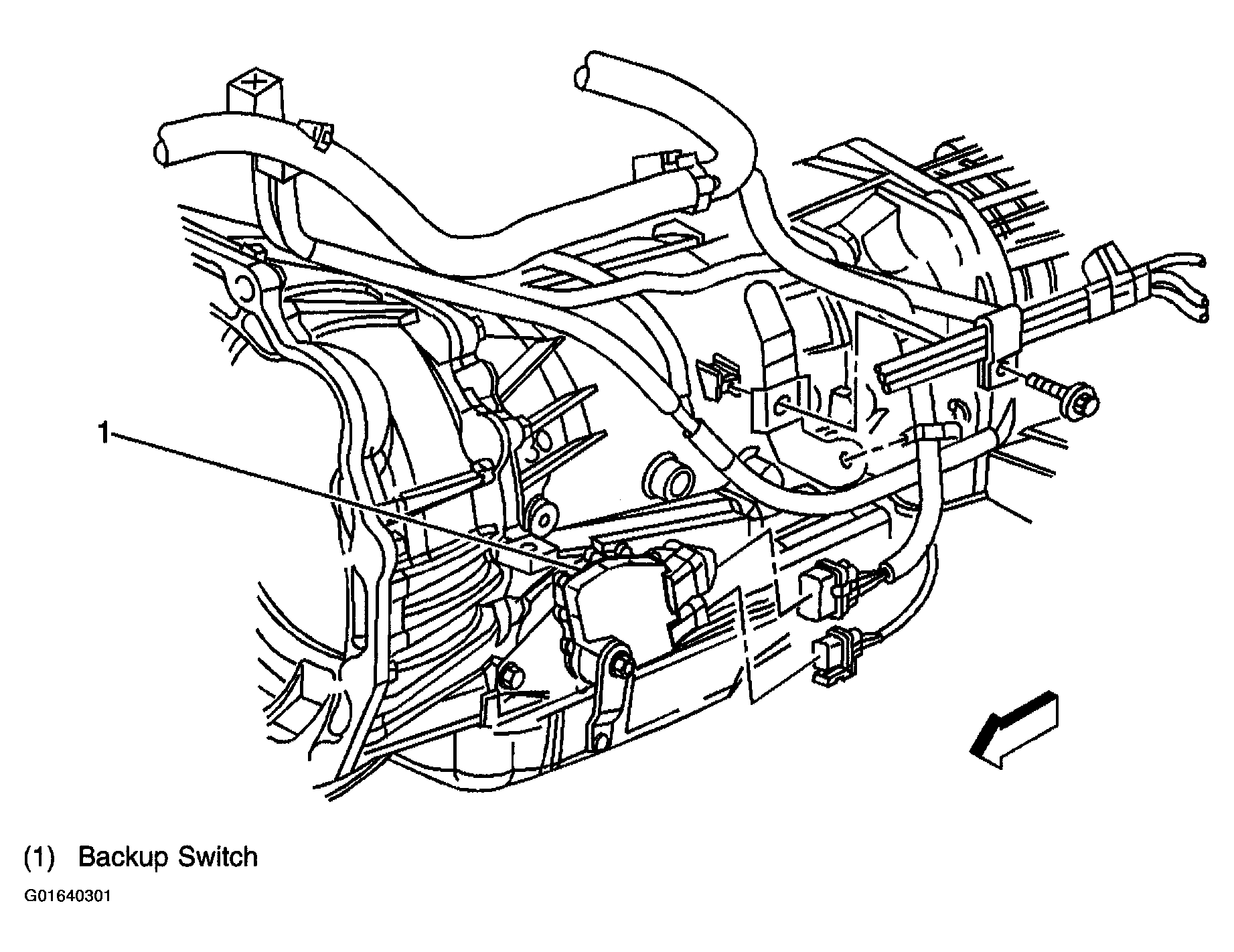

Fig 6: Locating Automatic Transmission, Left Side Components

Courtesy of GENERAL MOTORS CORP.

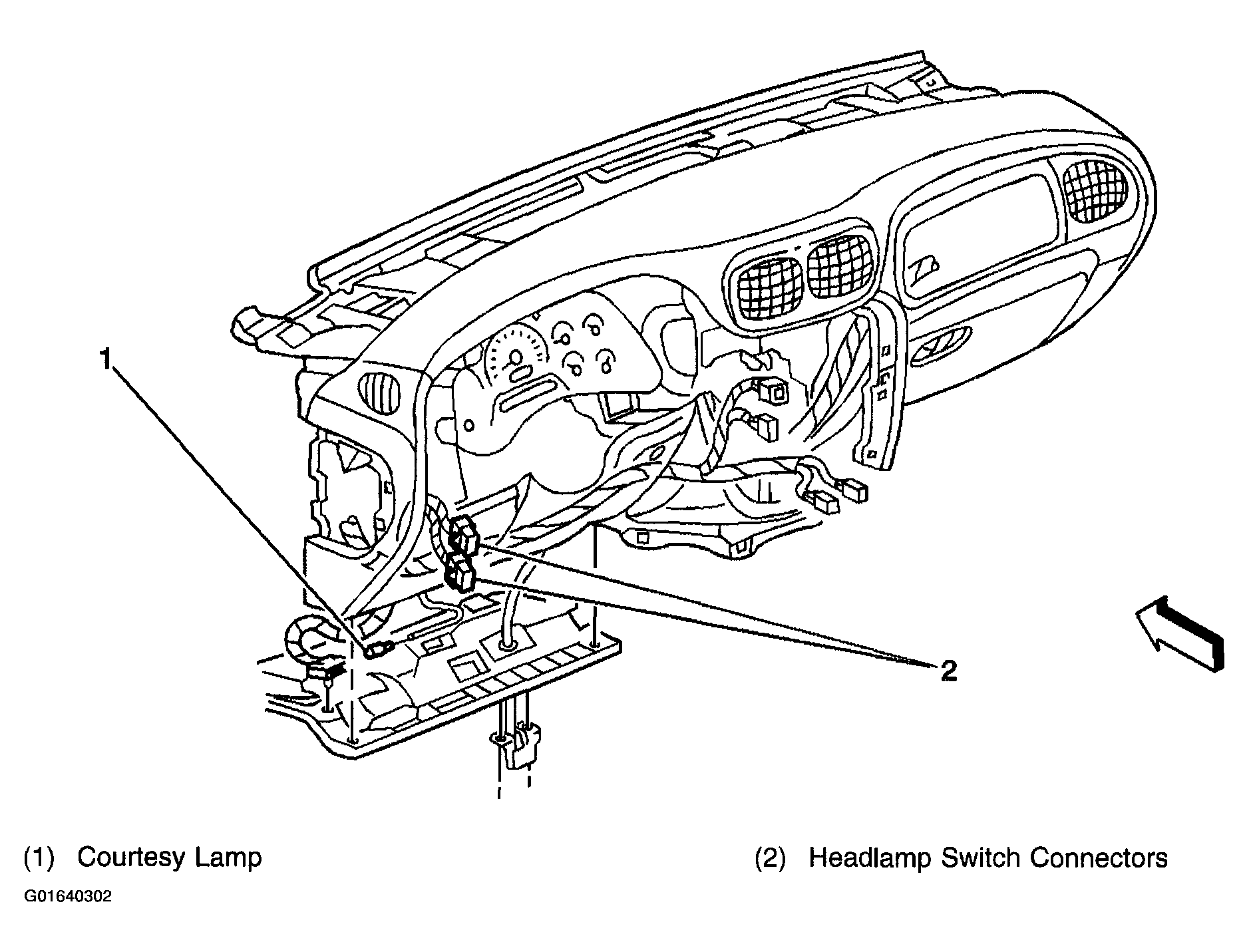

Fig 7: Locating Courtesy Lamp and Headlamp Switch Connectors Components

Courtesy of GENERAL MOTORS CORP.

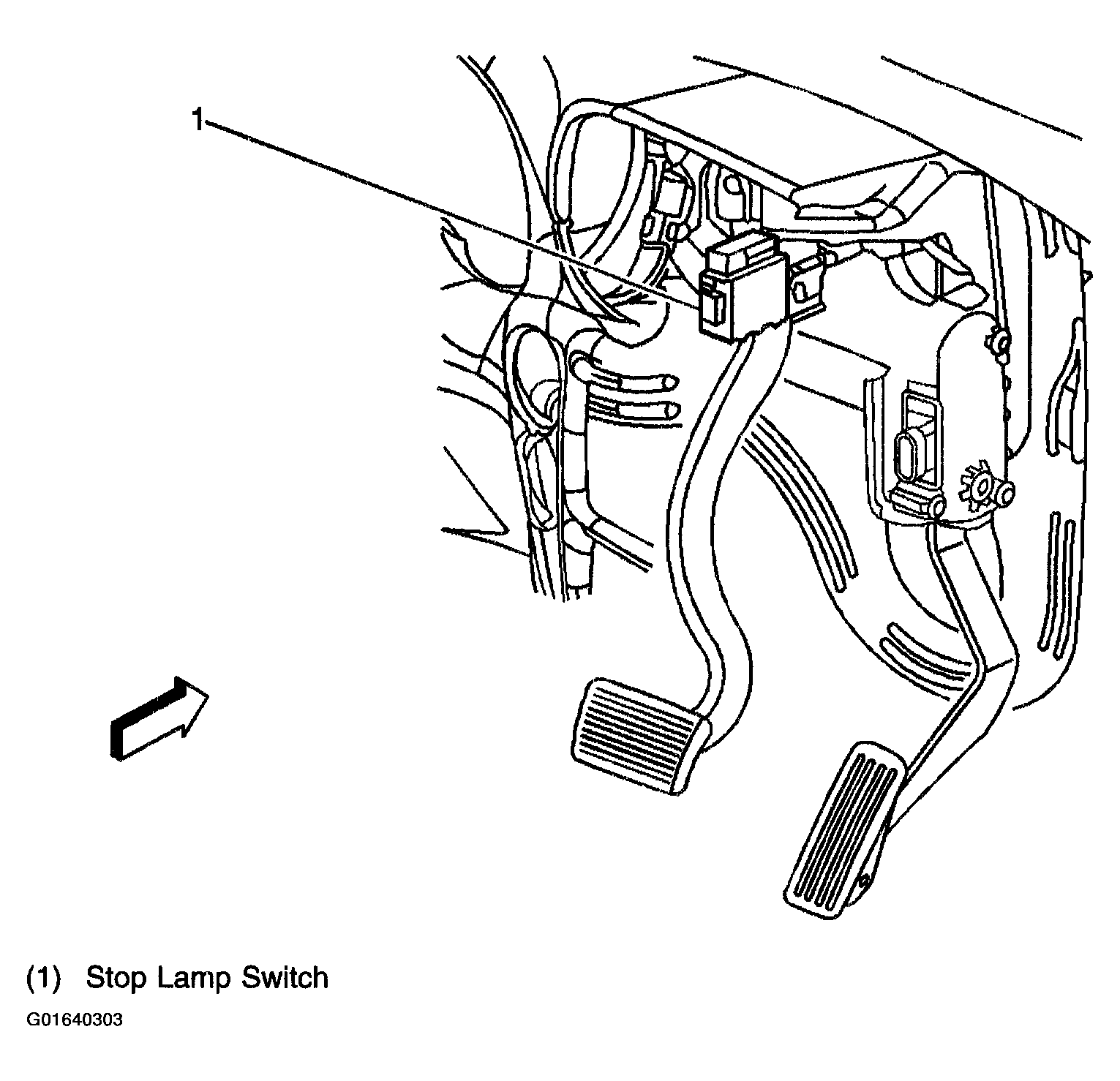

Fig 8: Locating Stop Lamp Switch Components

Courtesy of GENERAL MOTORS CORP.

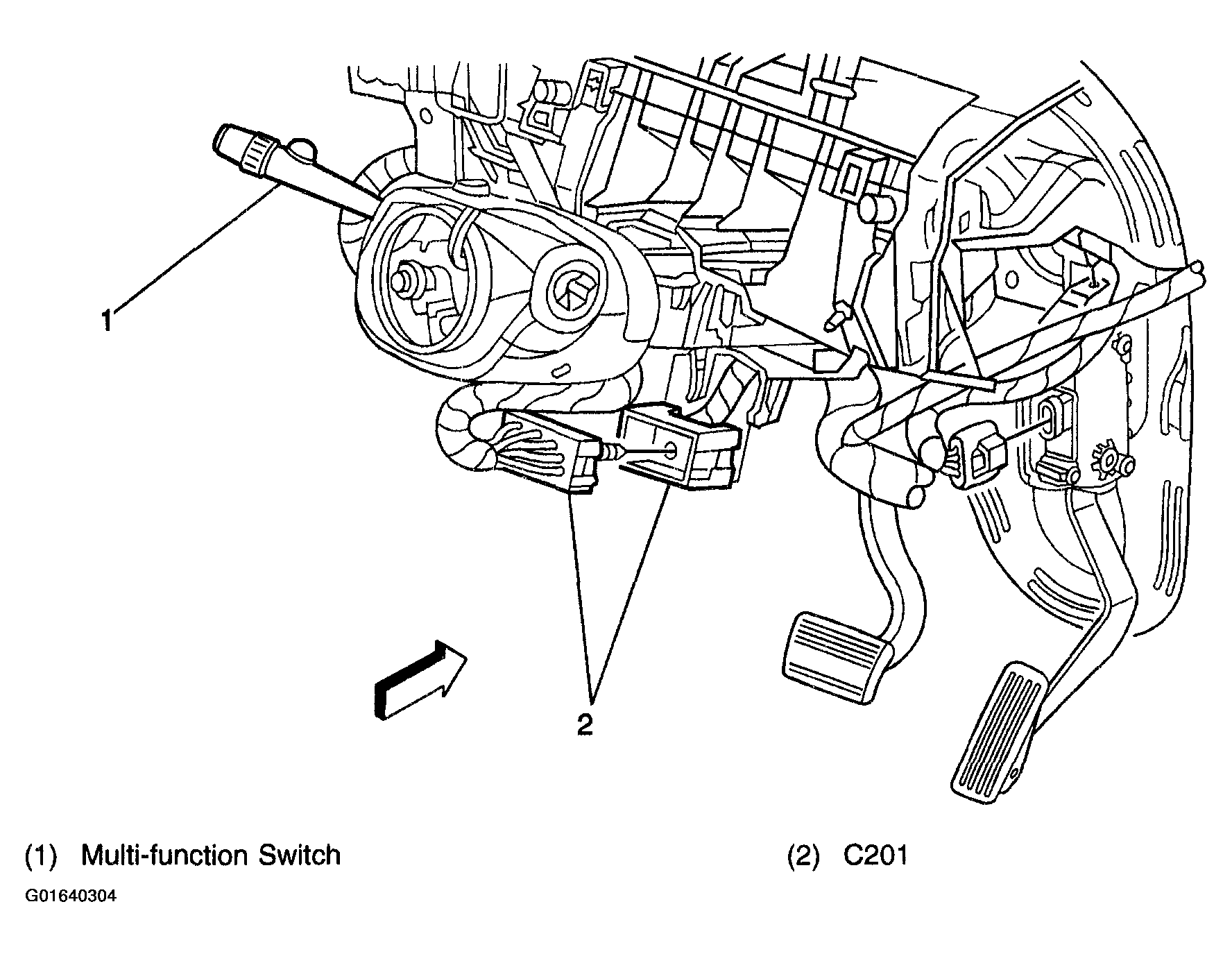

Fig 9: Locating Multi-function Switch Components

Courtesy of GENERAL MOTORS CORP.

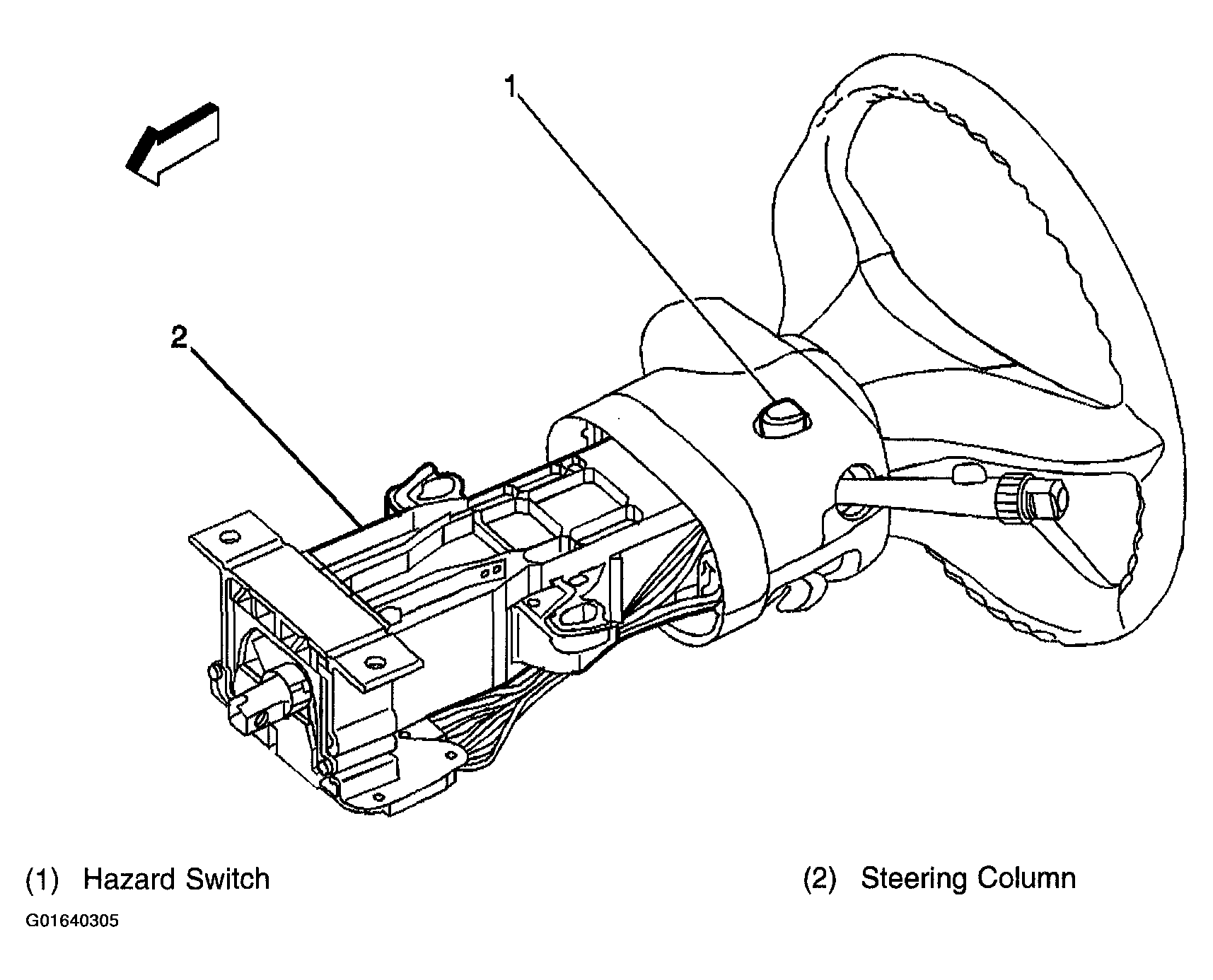

Fig 10: Locating Hazard Switch Components

Courtesy of GENERAL MOTORS CORP.

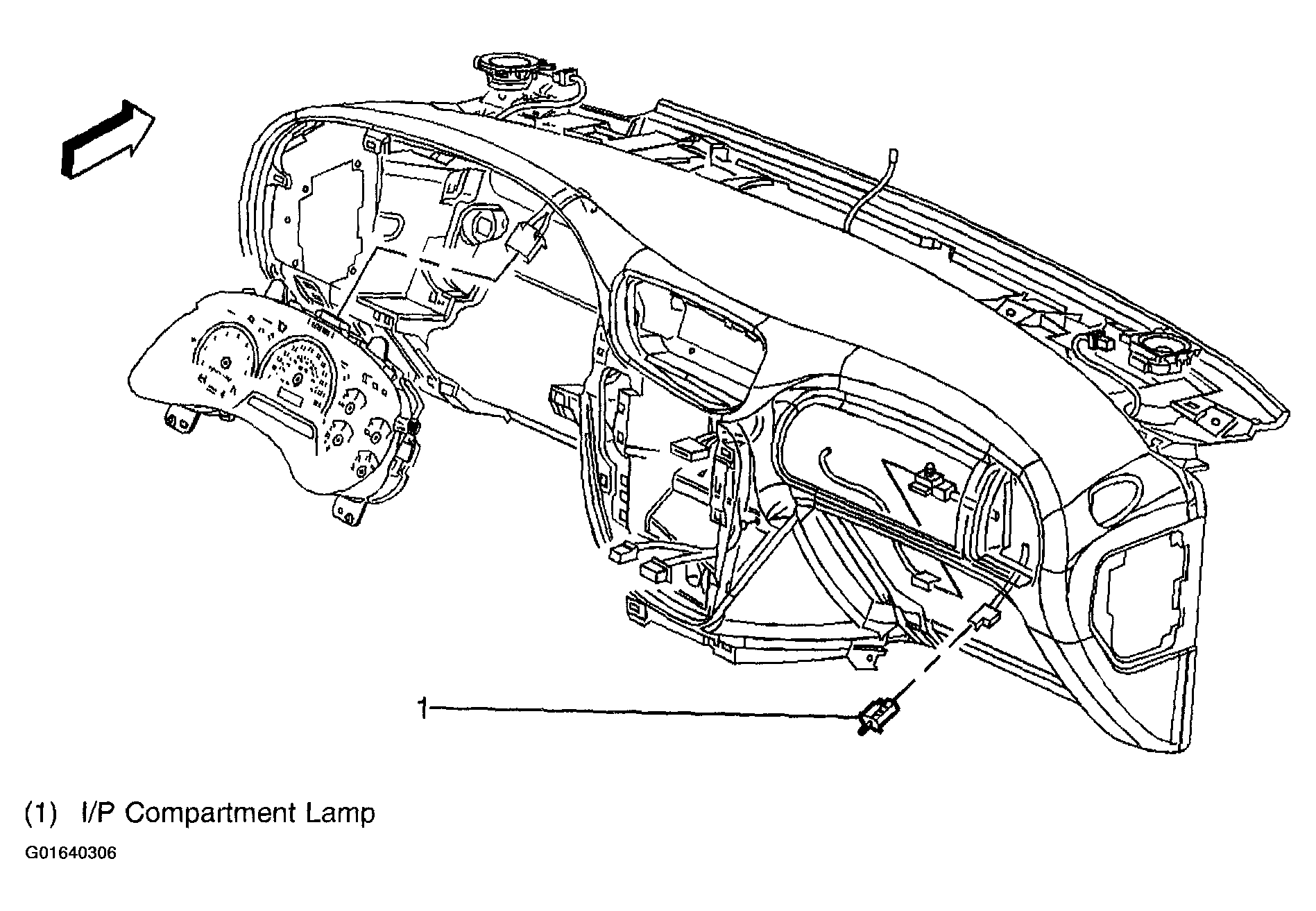

Fig 11: Locating I/P Compartment Lamp Components

Courtesy of GENERAL MOTORS CORP.

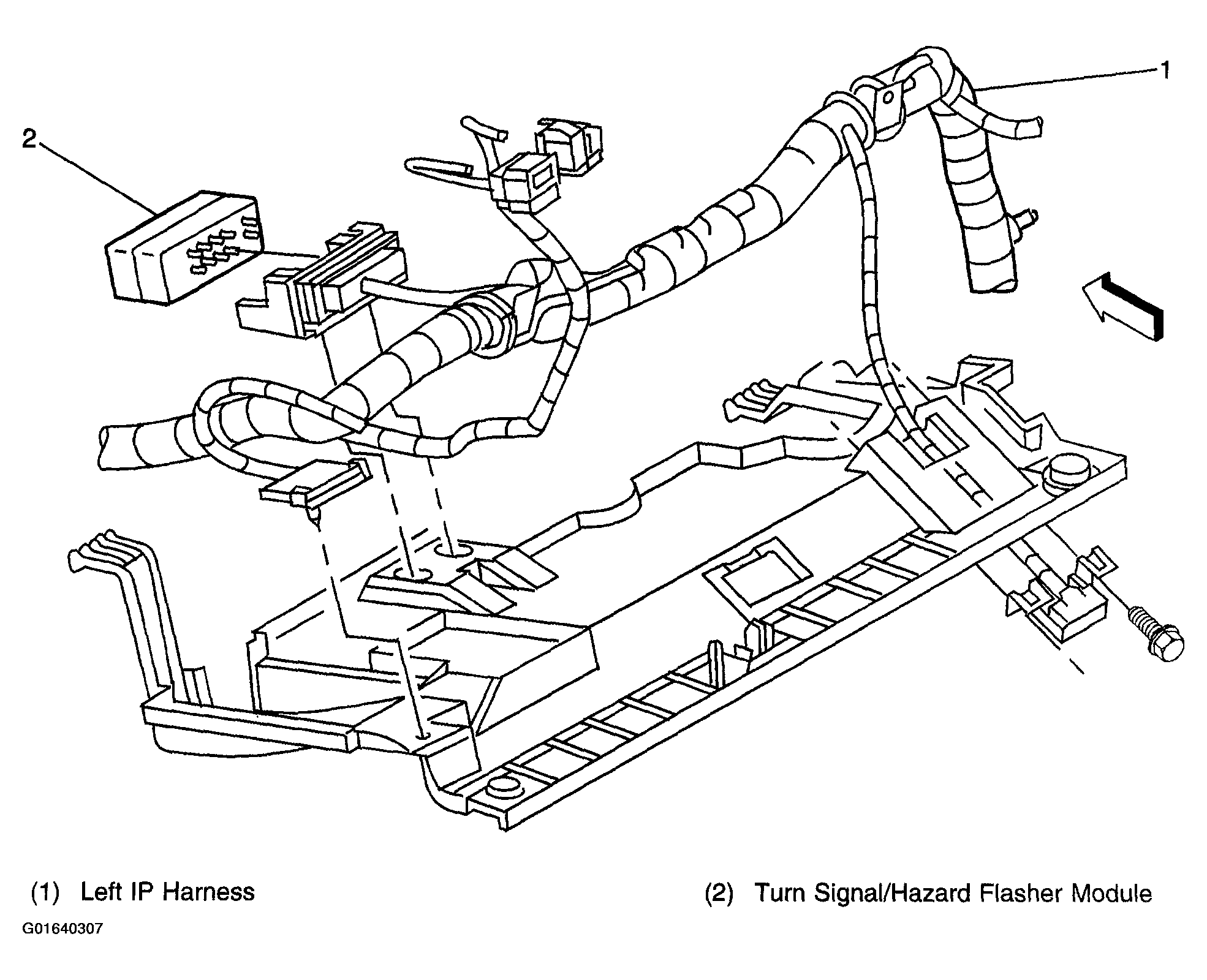

Fig 12: Locating Turn Signal/Hazard Flasher Module Components

Courtesy of GENERAL MOTORS CORP.

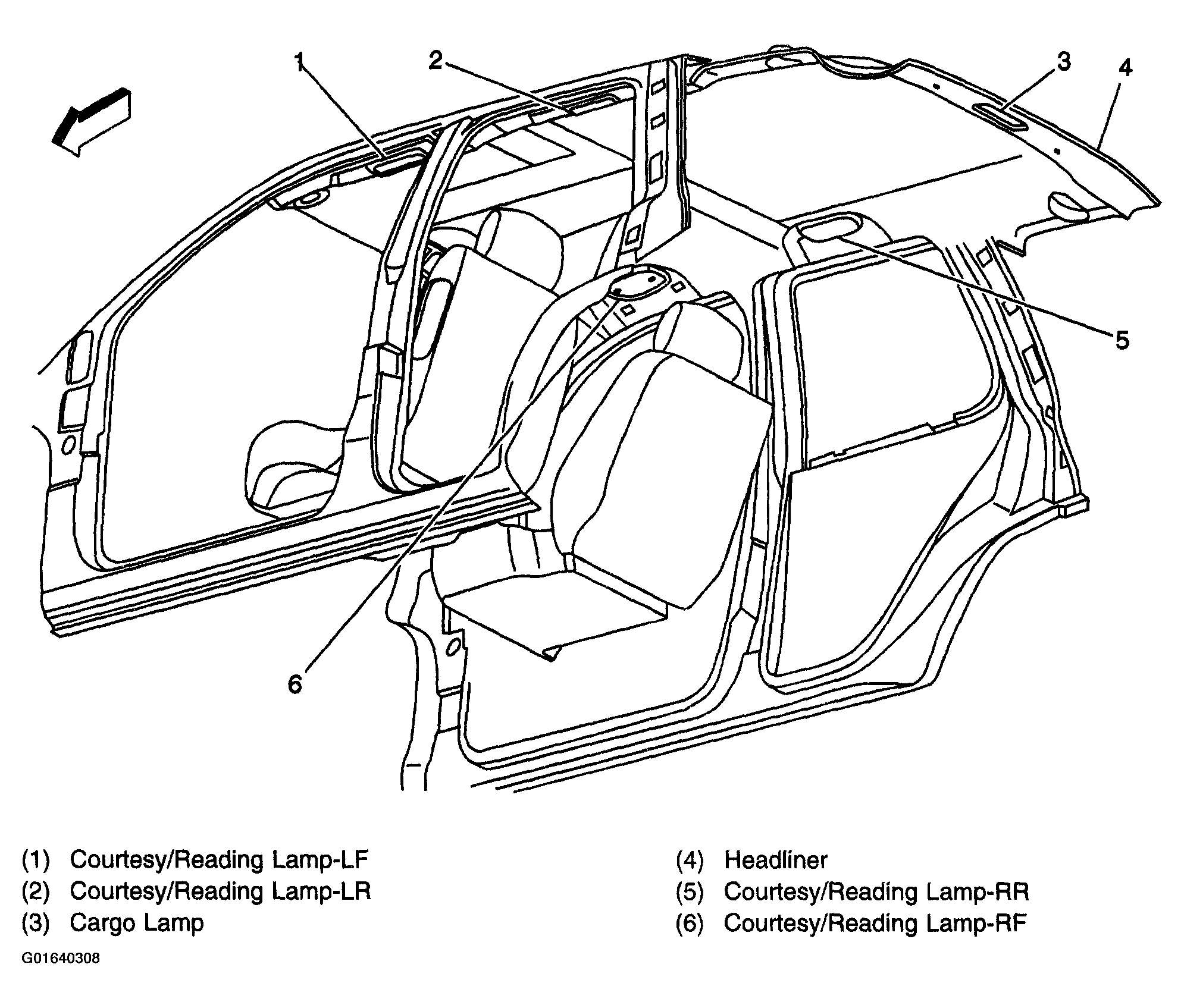

Fig 13: Locating Courtesy/Reading Lamps and Cargo Lamps (Short Wheelbase Shown, Long Wheelbase Similar)

Courtesy of GENERAL MOTORS CORP.

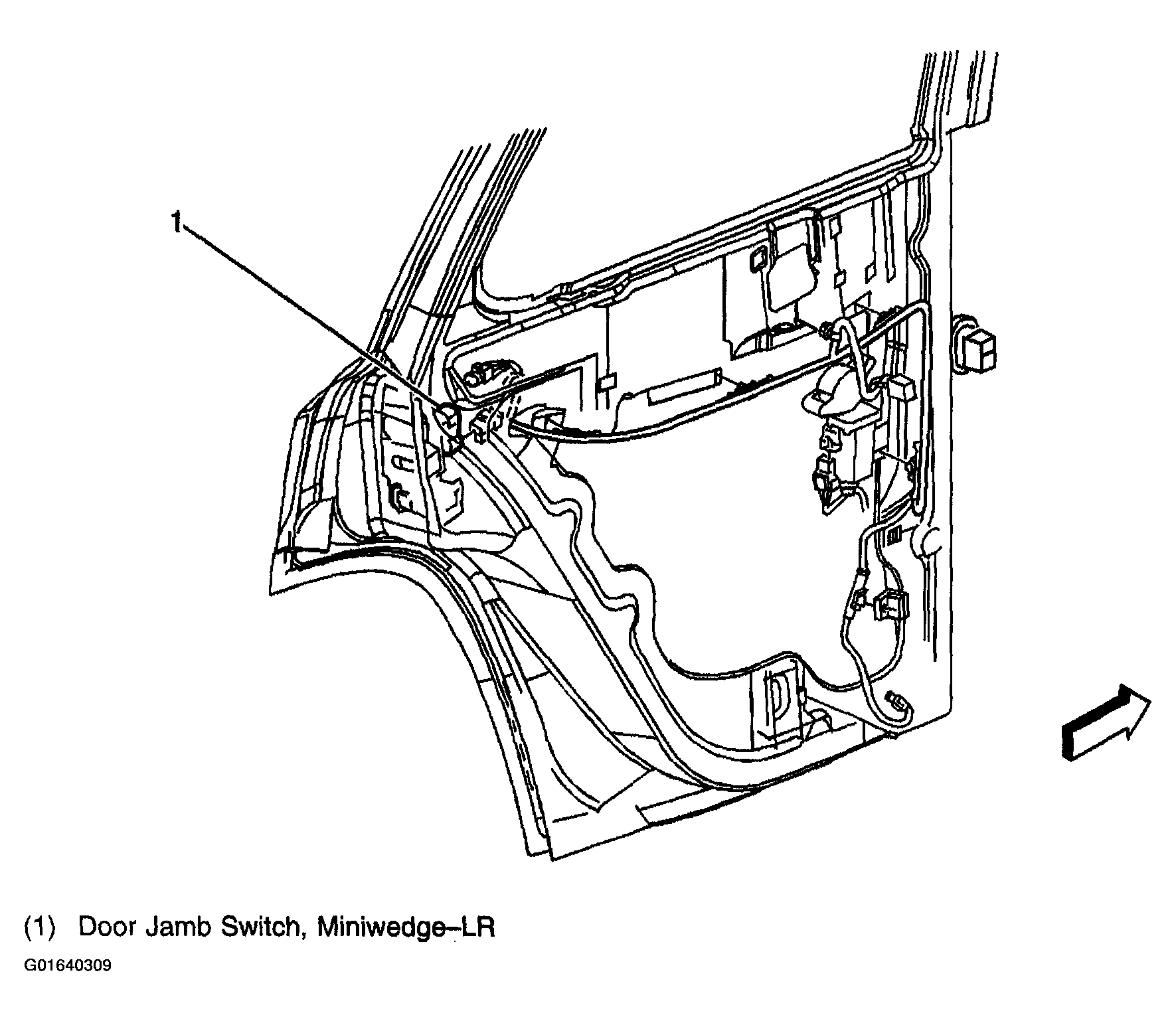

Fig 14: Locating Door Jamb Switch, Miniwedge-LR

Courtesy of GENERAL MOTORS CORP.

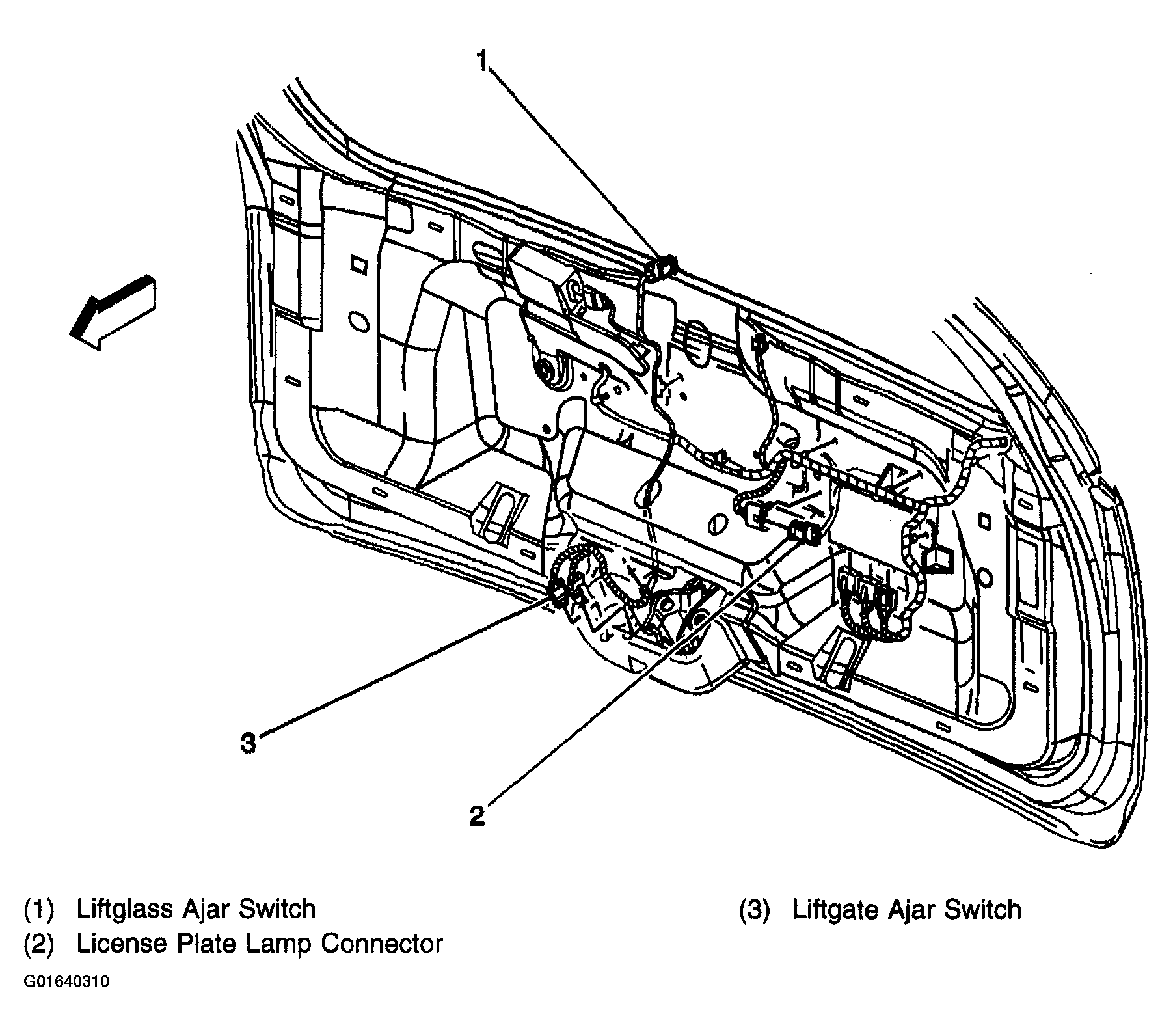

Fig 15: Locating Liftgate Ajar Switch Components

Courtesy of GENERAL MOTORS CORP.

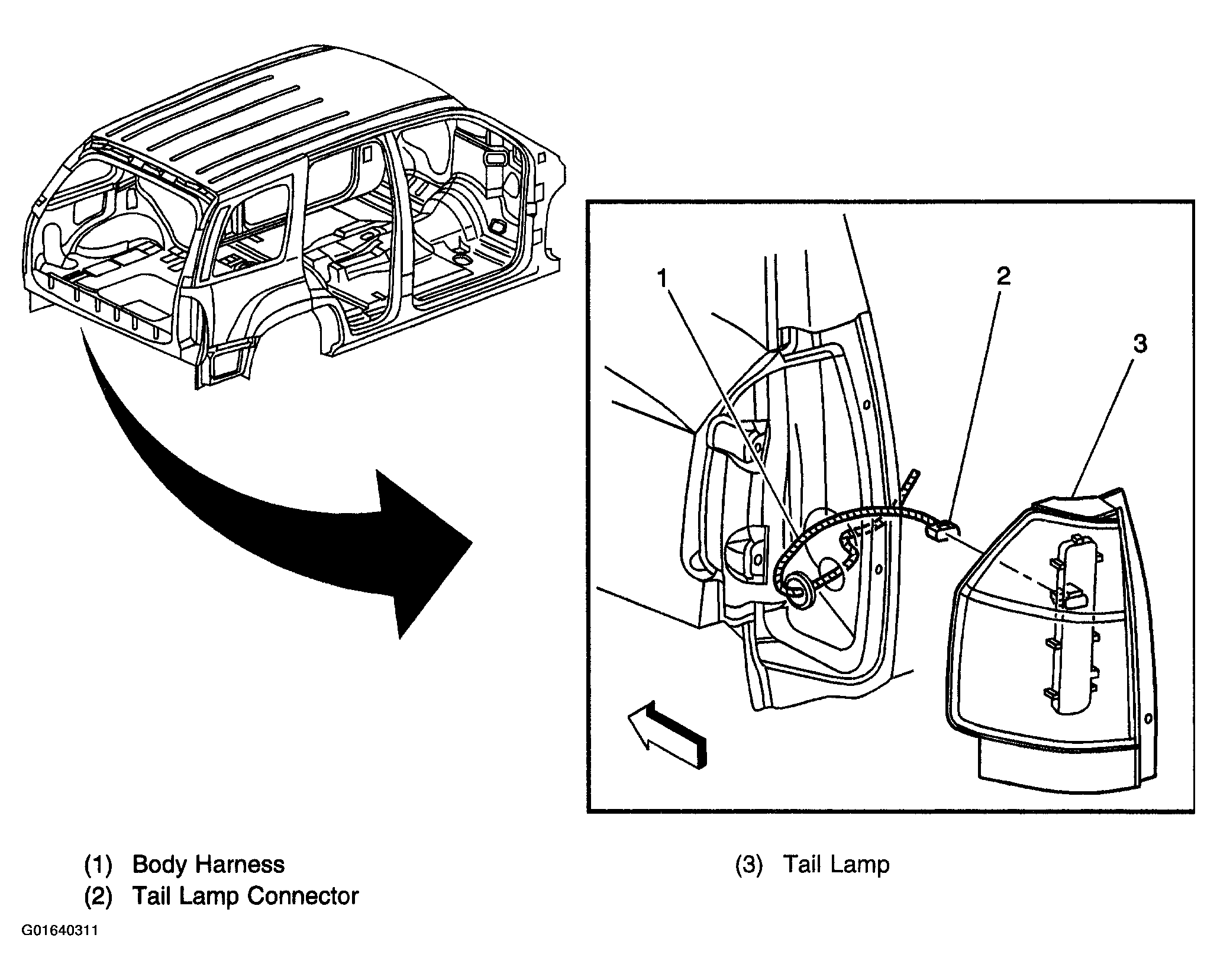

Fig 16: Locating Tail Lamp Components

Courtesy of GENERAL MOTORS CORP.

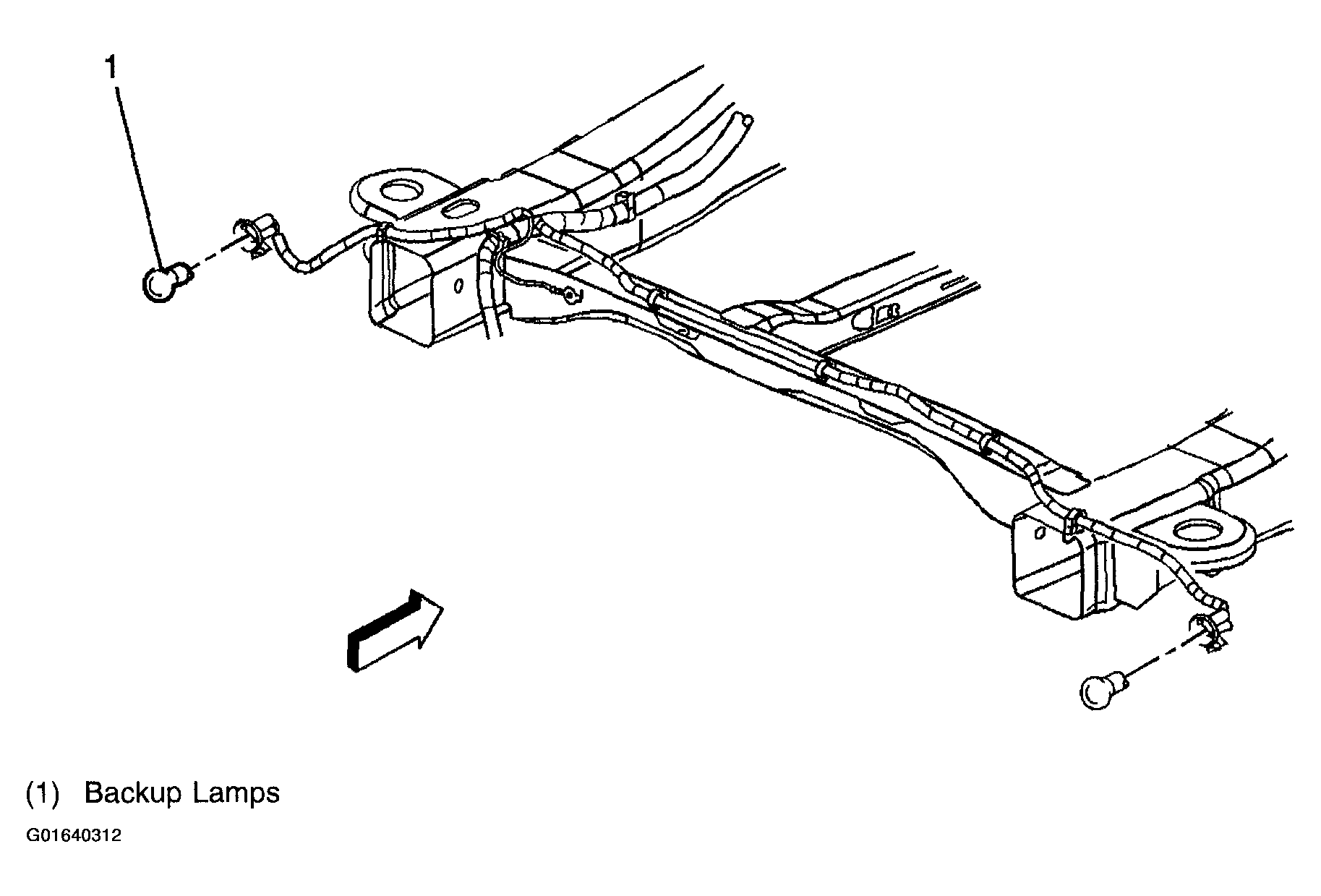

Fig 17: Locating Backup Lamps Components

Courtesy of GENERAL MOTORS CORP.

Fig 18: Locating Center High-Mounted Stop Lamp Components

Courtesy of GENERAL MOTORS CORP.

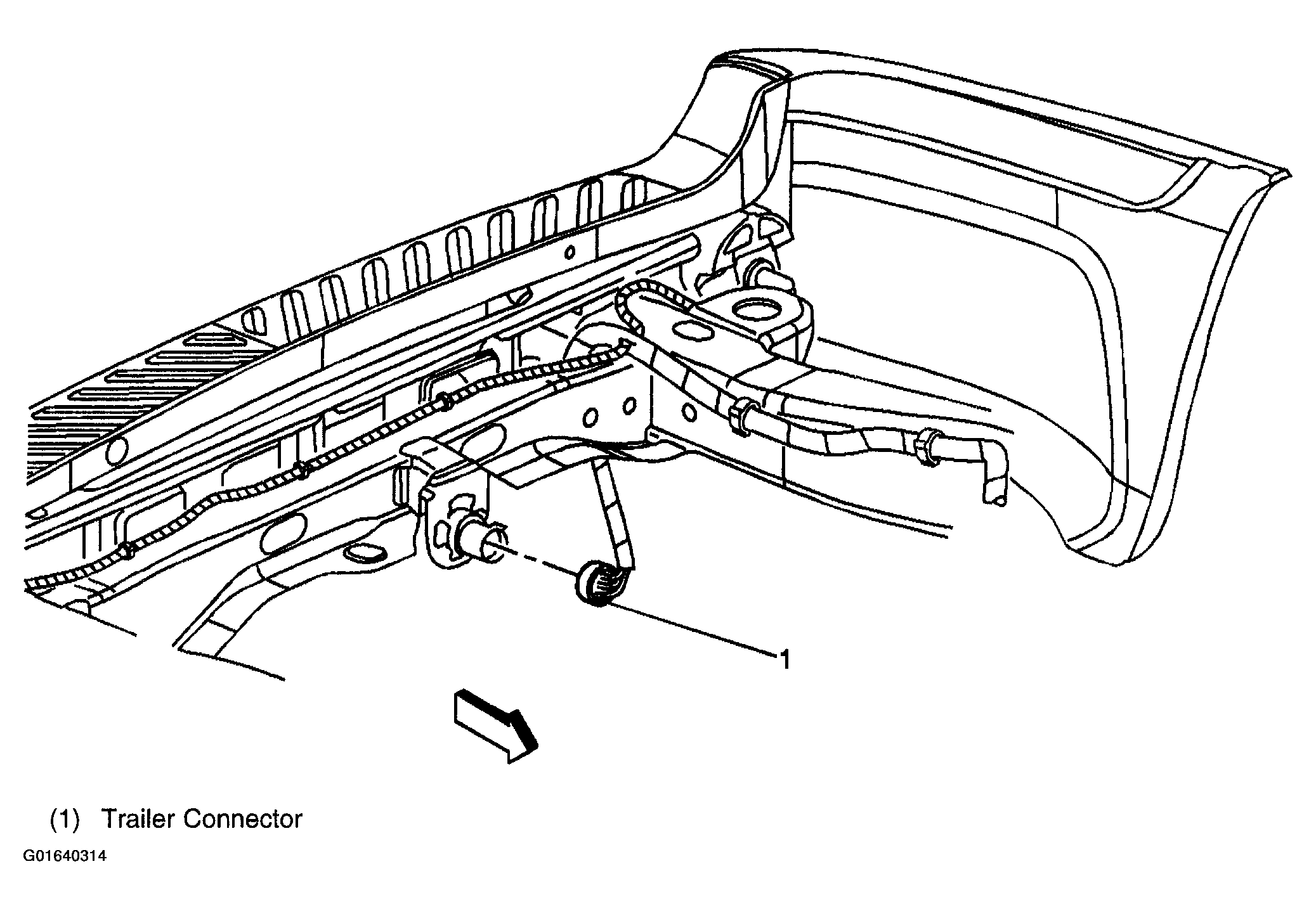

Fig 19: Locating Trailer Connector

Courtesy of GENERAL MOTORS CORP.
