Body Control System Schematics (Power and Ground)

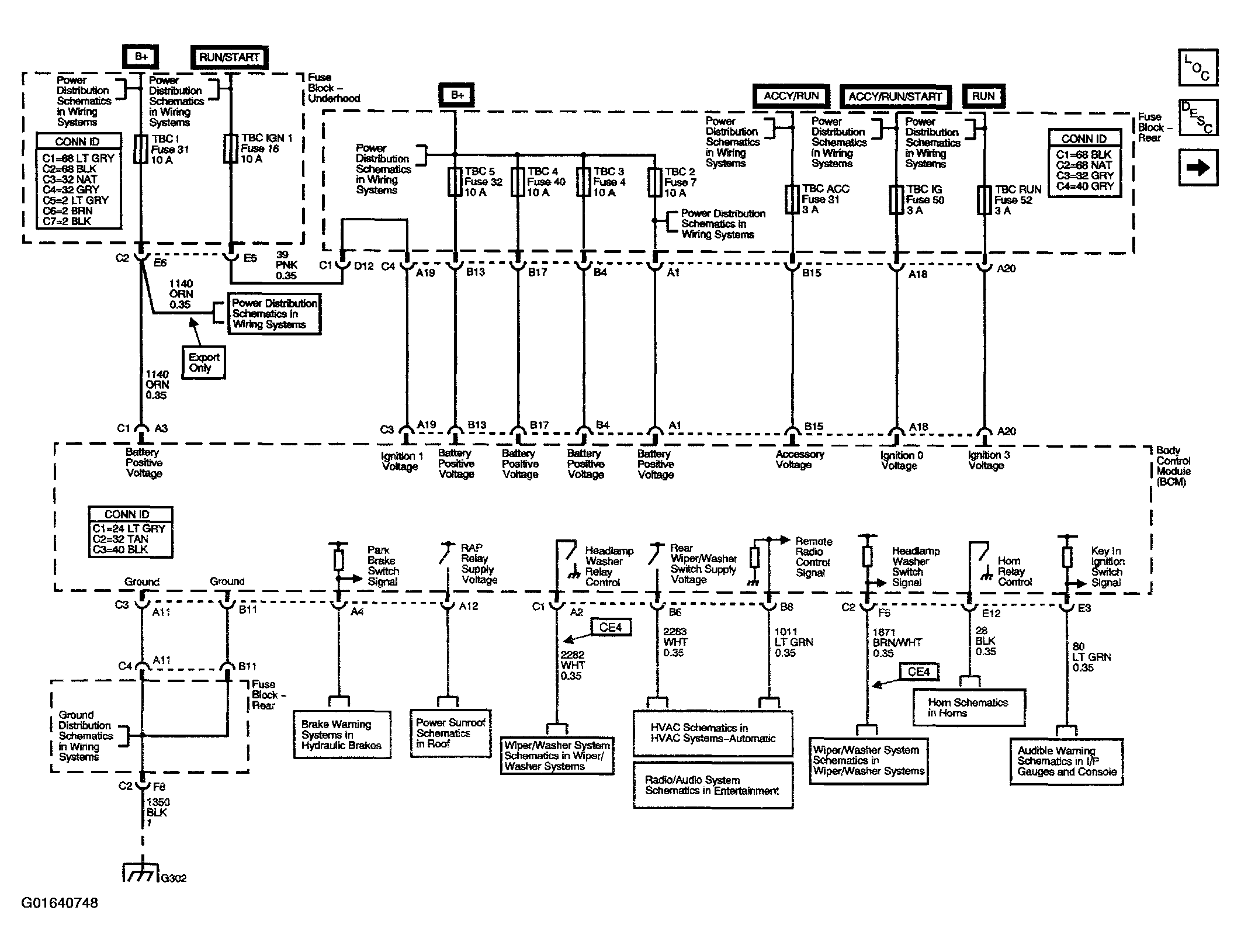

Fig 1: Body Control System Schematic Diagram (Power and Ground)

G01640748

Courtesy of GENERAL MOTORS CORP.
