Home >> Oldsmobile >> 2003 >> Aurora >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - 4T80-E >> Specifications >> Shift Speed

Shift Speed

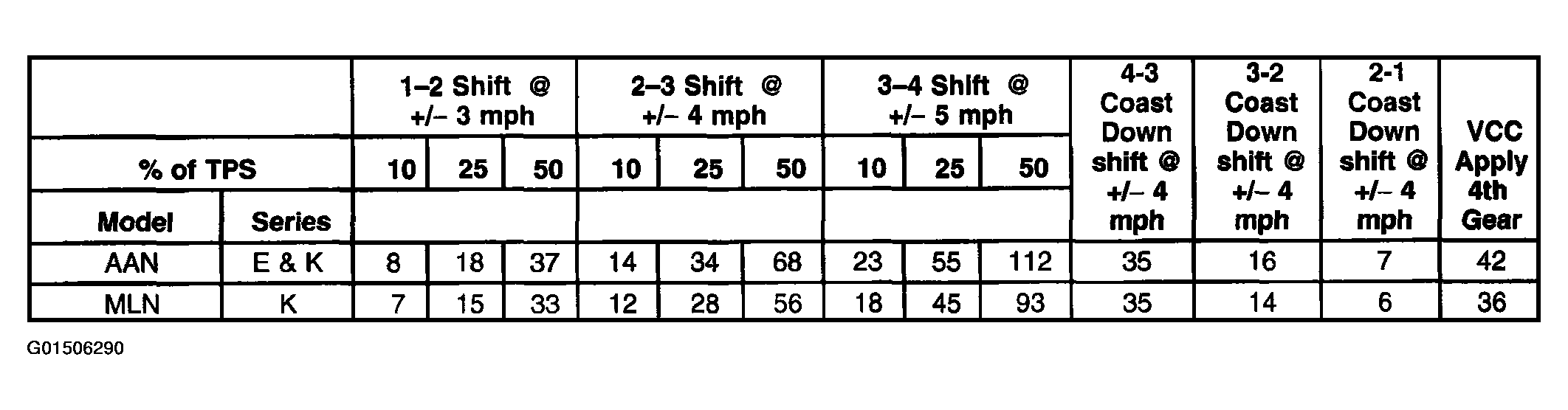

Fig 1: Shift Speed Chart

G01506290

Courtesy of GENERAL MOTORS CORP.
