Component Location

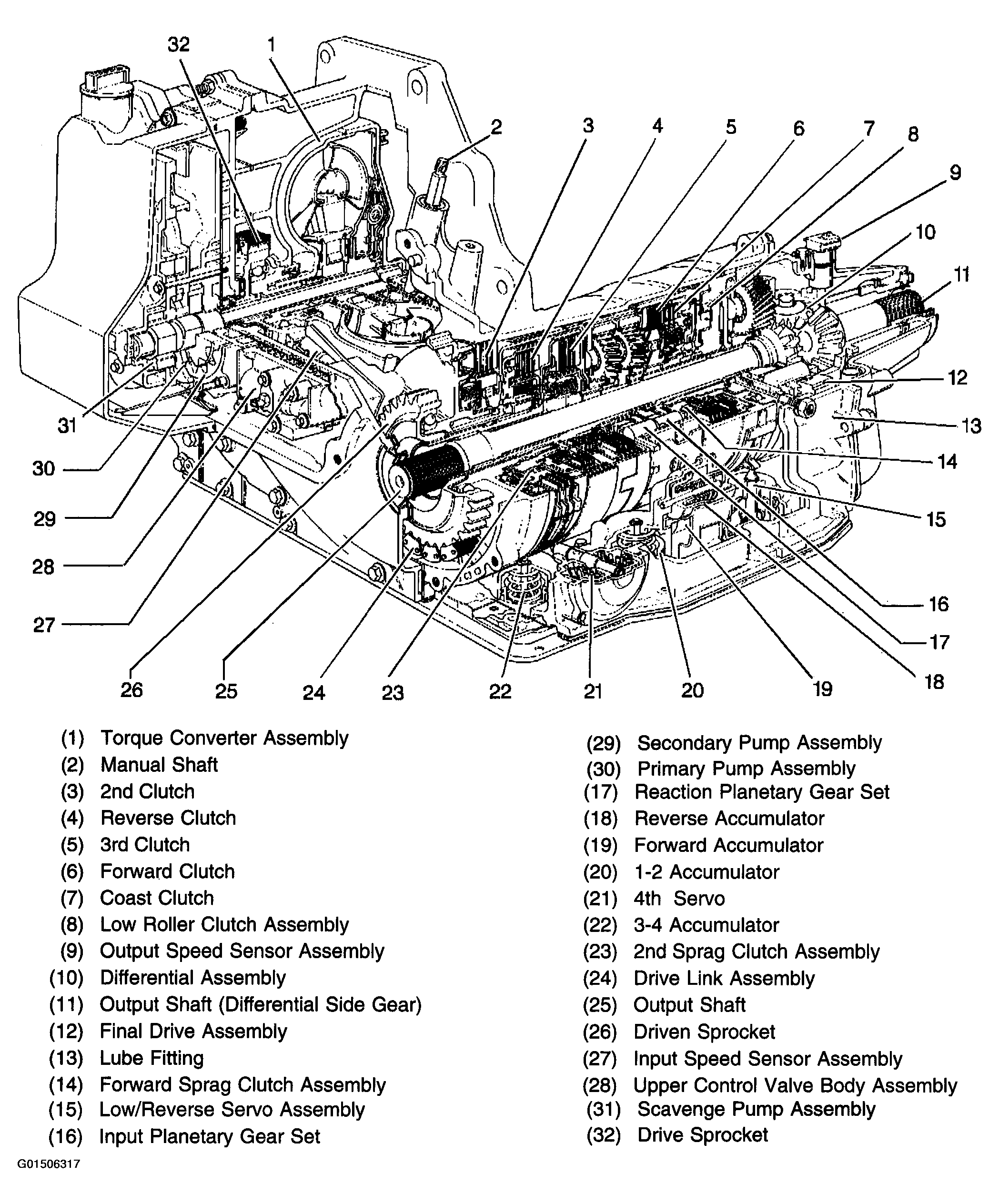

Fig 1: Locating Major Transaxle Components
G01506317Courtesy of GENERAL MOTORS CORP.

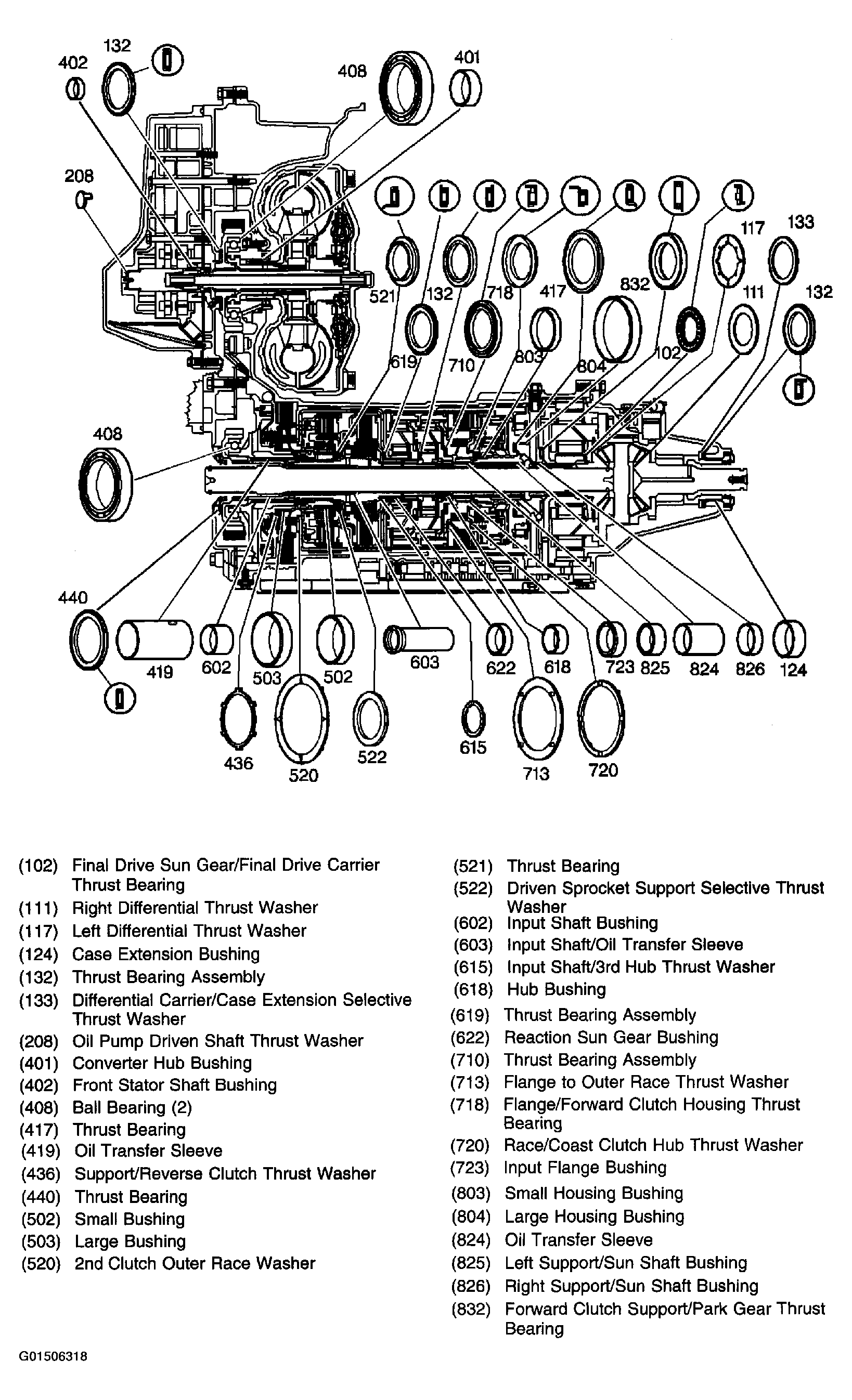

Fig 2: Locating Transaxle Bushings, Bearings & Washers
G01506318Courtesy of GENERAL MOTORS CORP.

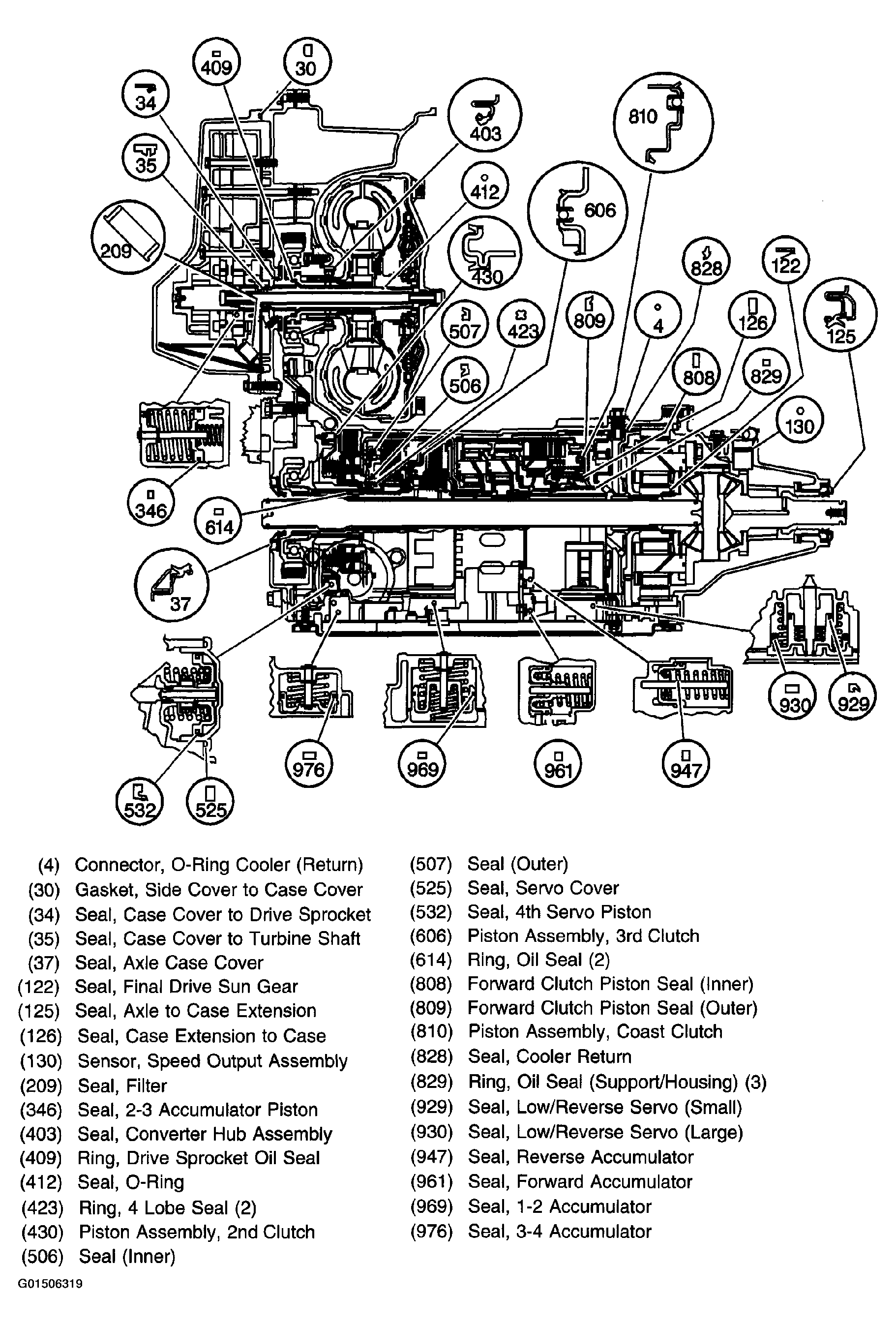

Fig 3: Locating Transaxle Seals
G01506319Courtesy of GENERAL MOTORS CORP.
