Installation Procedure

  1. Install a new stud. Use washers and wheel nuts to draw the stud into the hub and seat the wheel stud.
  2. Install the brake rotor. Refer to Brake BRAKE ROTORS in Disc Brakes.
  3. Install the tire and wheel. Refer to Install the tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Lower the vehicle.

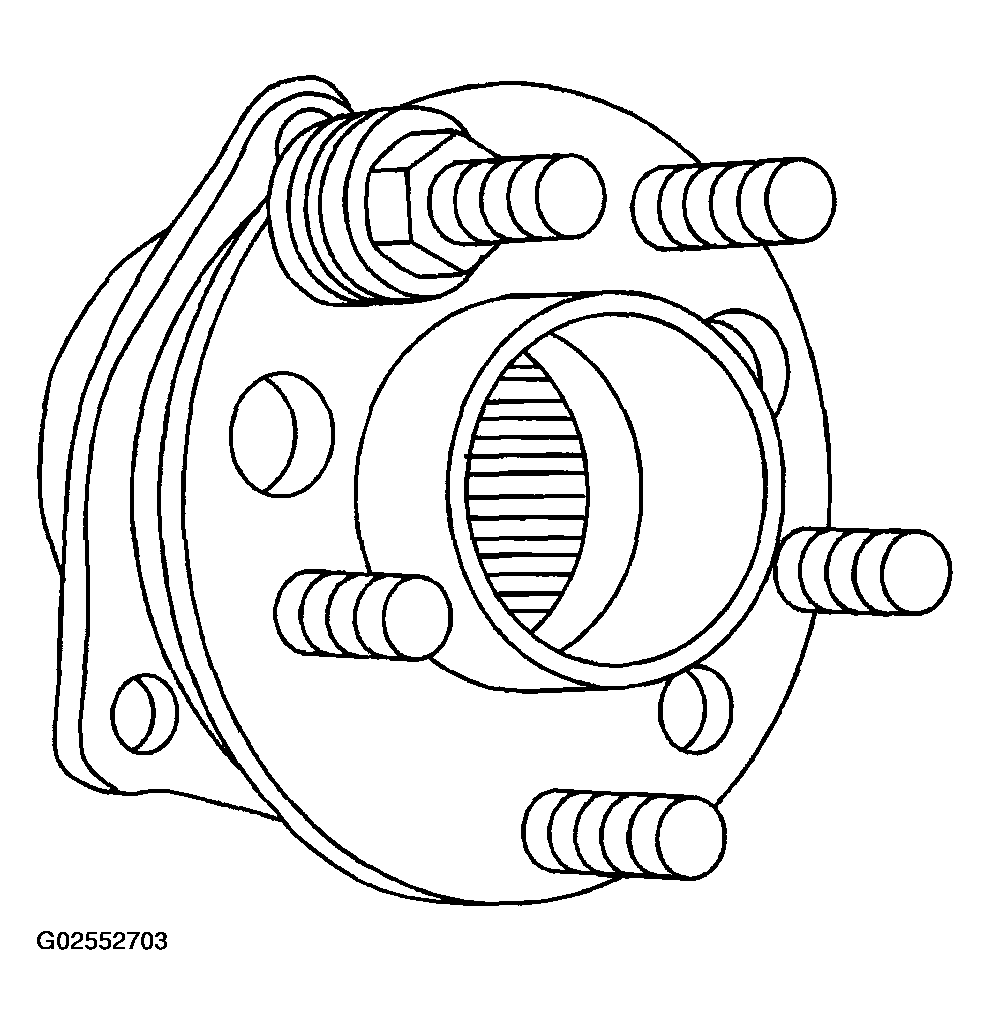

    Fig 1: Installing New Studs
    G02552703Courtesy of GENERAL MOTORS CORP.
