Removal Procedure

NOTE: Use care when handling the coil springs in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the coil springs.

Remove the strut assembly from the vehicle in order to perform this procedure. Refer to STRUT ASSEMBLY REPLACEMENT .

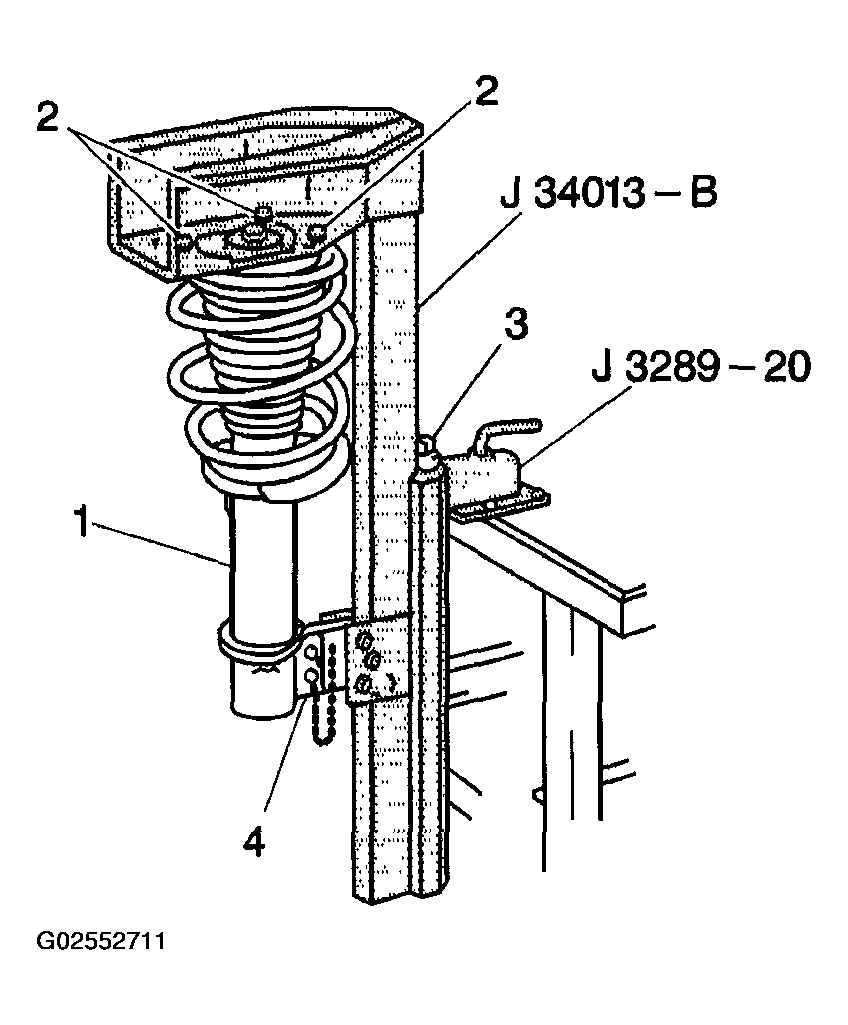

Install the strut (1) into the J 34013-B .
Turn the compressor forcing screw (3) until the spring compresses slightly.

Fig 1: Turning Compressor Forcing Screw Until Spring Compresses Slightly
Courtesy of GENERAL MOTORS CORP.

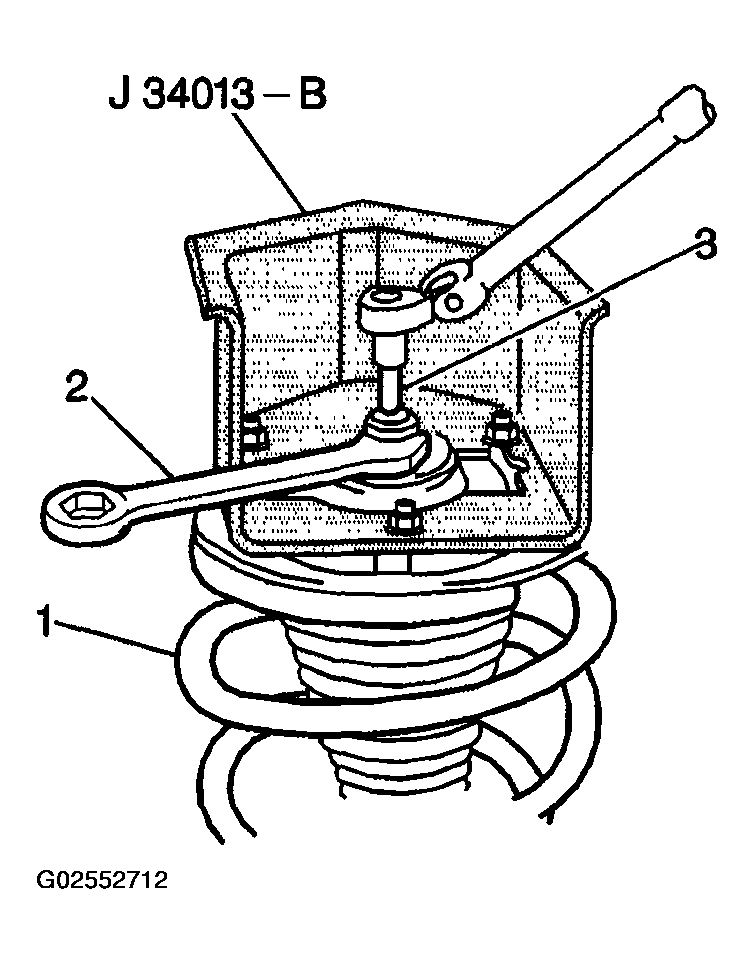

Use a socket (3) in order to prevent the strut shaft from turning. Remove the strut shaft retaining nut.

Fig 2: Using A Socket To Prevent Strut Shaft From Turning
Courtesy of GENERAL MOTORS CORP.

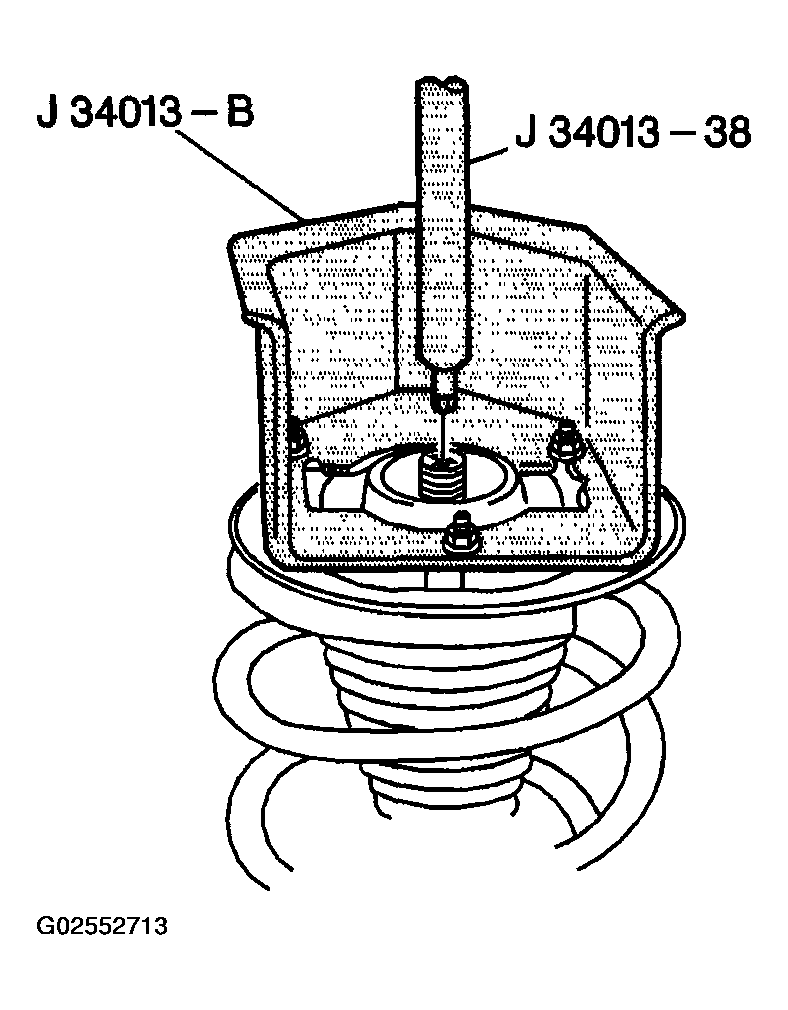

Install the J 34013-38 in order to help guide the strut shaft out of the assembly.
Loosen the compressor screw while guiding the strut shaft out of the assembly. Continue loosening the compressor screw until the strut and the spring may be removed.

Fig 3: Guiding Strut Shaft Out Of Assembly
Courtesy of GENERAL MOTORS CORP.
