Installation Procedure

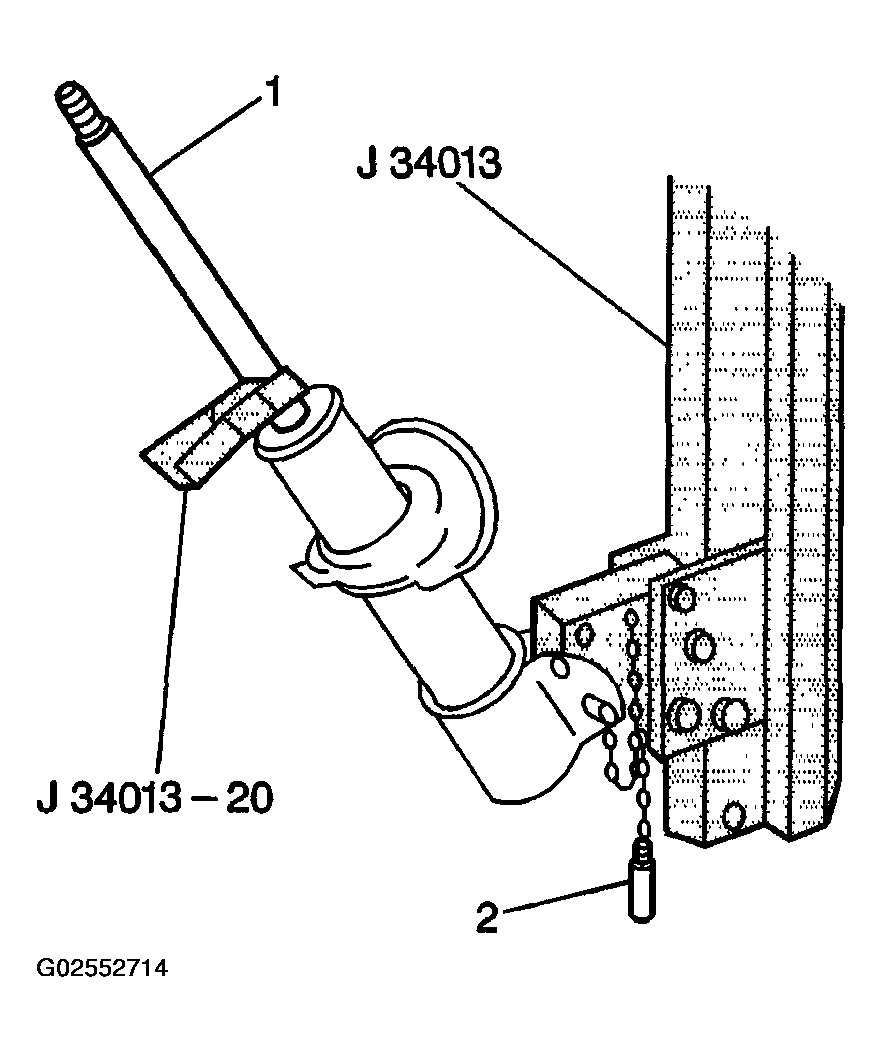

- Install the strut in the J 34013-B
with the J 34013-20
clamped on the strut shaft (1) in the strut compressor.
Important:
- Ensure that the flat on the upper spring seat faces out from the centerline of the vehicle. When you mount the spring seat in the strut compressor, ensure that the spring seat faces in the same direction as the steering knuckle mounting flange.
- If the bearing had been removed from the upper spring seat, install the bearing into the upper spring seat in the same orientation as it had been. Also, install the bearing in the spring seat before attaching to the strut mount.
- Install the spring over the strut in the correct position.
- Move the assembly upright in the strut compressor.
- Install the upper locking pin (2).

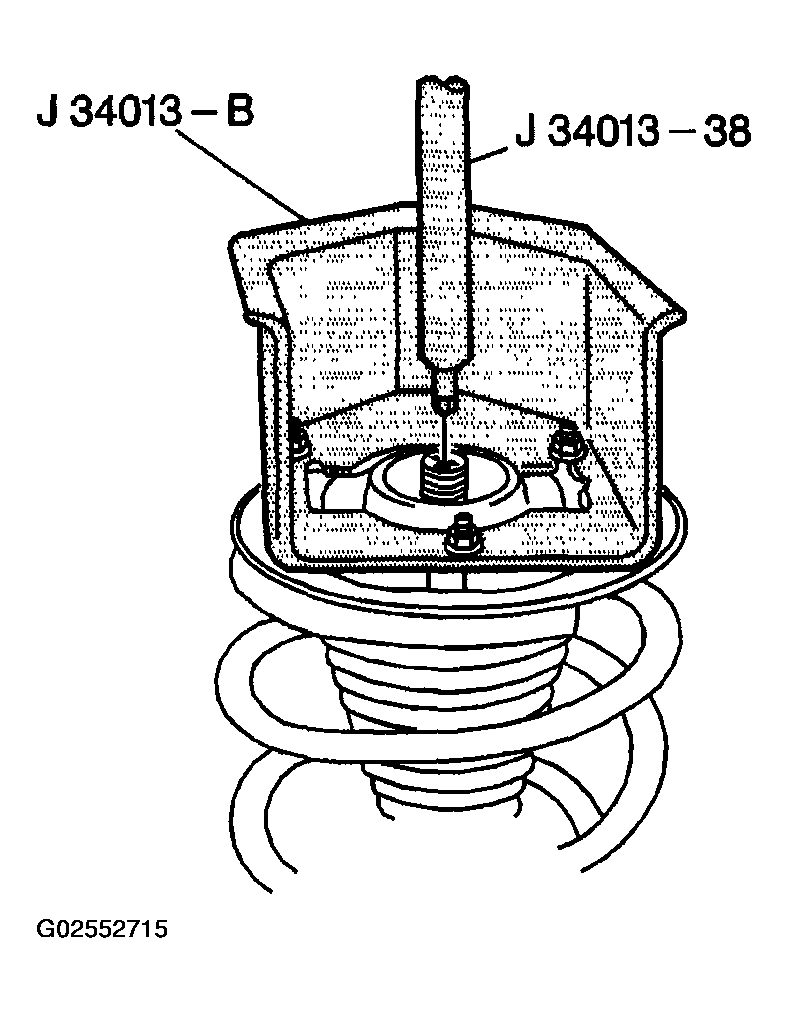

- Install the rod J 34013-38 into the strut guide strut shaft.
- Start turning the compressor screw clockwise on the J 34013-B , while guiding the J 34013-38 to the center strut shaft in the assembly.

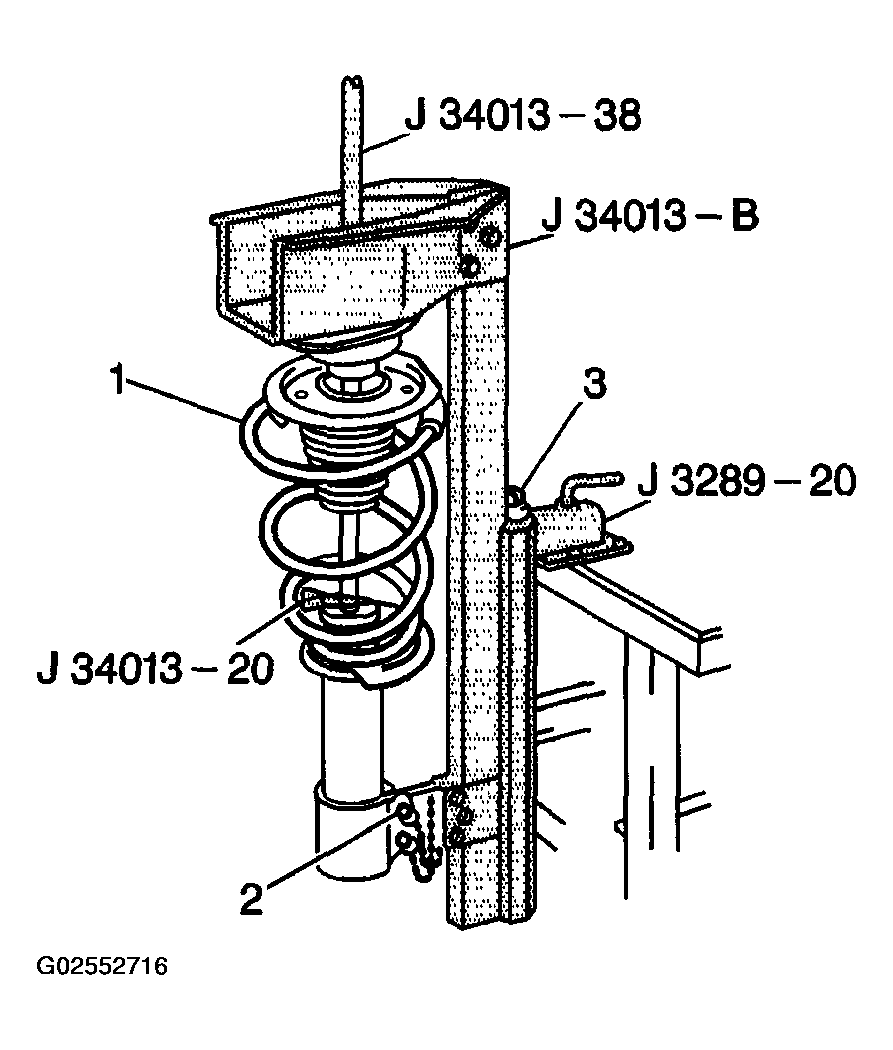

- Continue to turn the compressor forcing screw (3) on the strut compressor until the strut shaft threads are visible through the top of the strut assembly (1).
- Install the strut washer and retaining nut.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Remove the clamp J 34013-20
from the strut shaft.
Tighten
Tighten the strut mount retaining nut to 75 N.m (55 ft. lb.) while holding the strut shaft with the socket.
- Remove the strut from the strut compressor.
- Install the strut assembly to the vehicle. Refer to STRUT ASSEMBLY REPLACEMENT .
