Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT in Front Suspension.
  3. Rotate the stabilizer shaft downward.
  4. Remove the electrical harness clip from the power steering gear heat shield.
  5. Remove power steering gear heat shield mounting bolts.
  6. Remove the power steering gear heat shield.

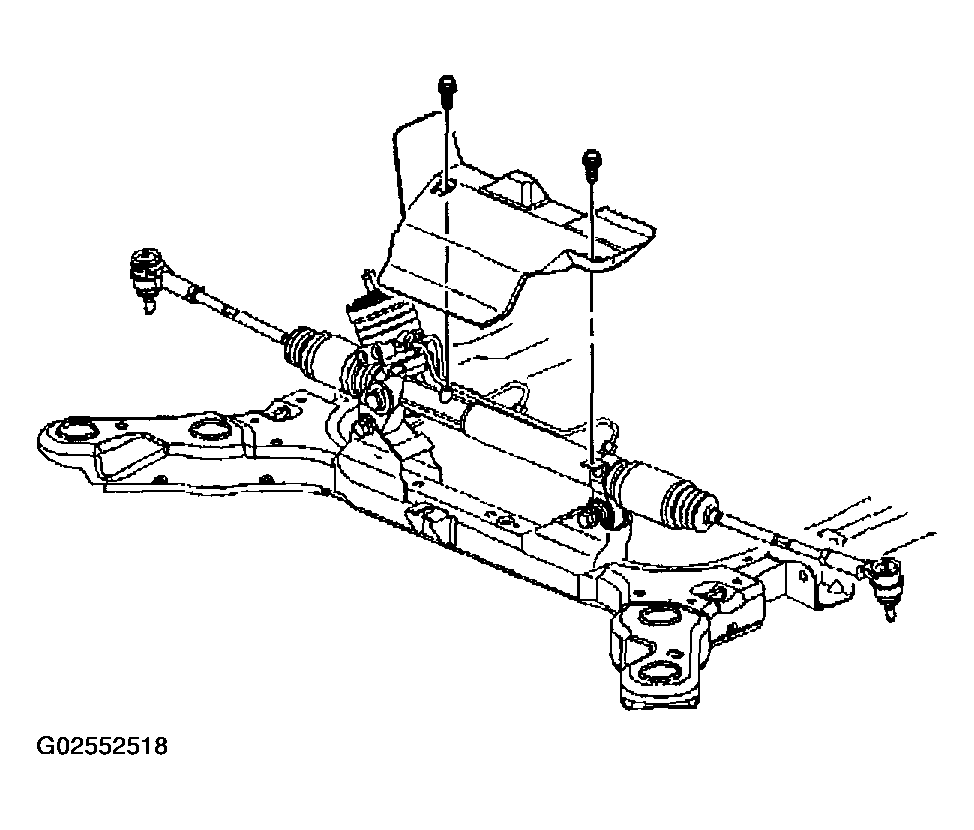

    Fig 1: Removing Power Steering Gear Heat Shield
    G02552518Courtesy of GENERAL MOTORS CORP.
