Installation Procedure

  1. Install the child tether anchors to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the child tether anchor fasteners.

    Tighten

    Tighten the fastener to 30 N.m (22 ft. lb.).

  3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

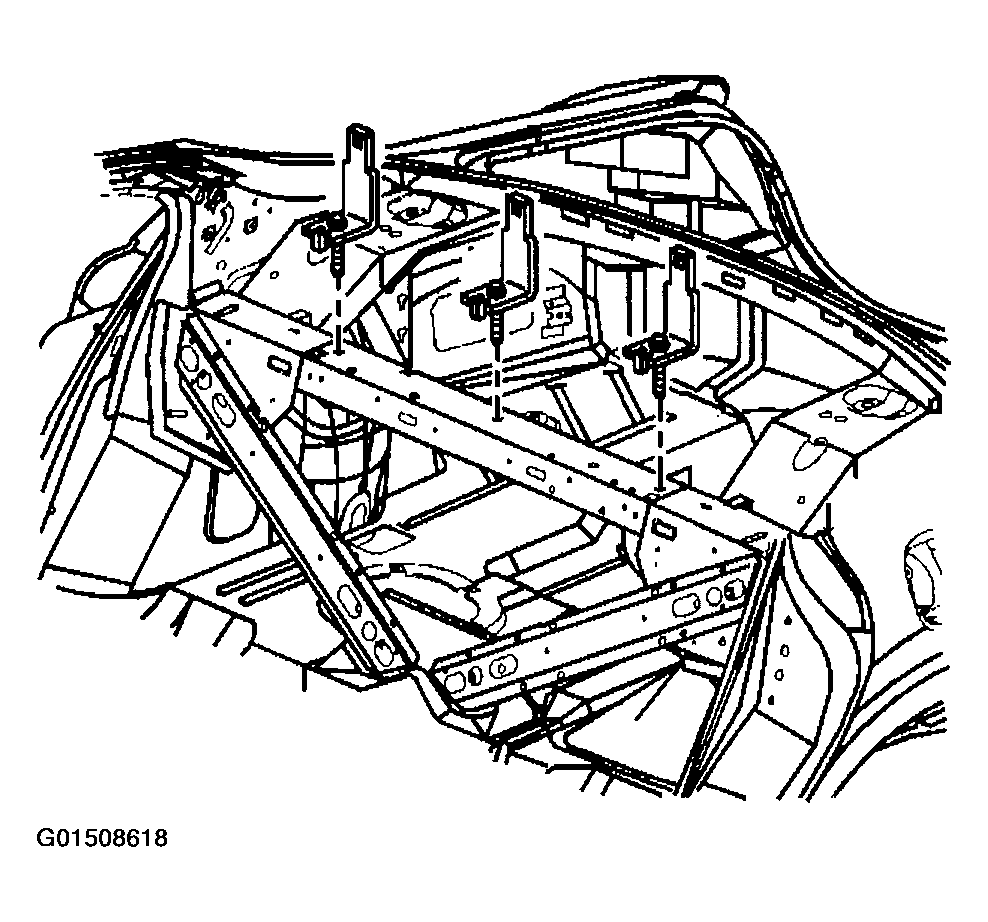

    Fig 1: Installing Child Tether Anchors
    G01508618Courtesy of GENERAL MOTORS CORP.
