Propeller Shaft Installation Note
WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Align the marks made during removal, and install the propeller shaft.

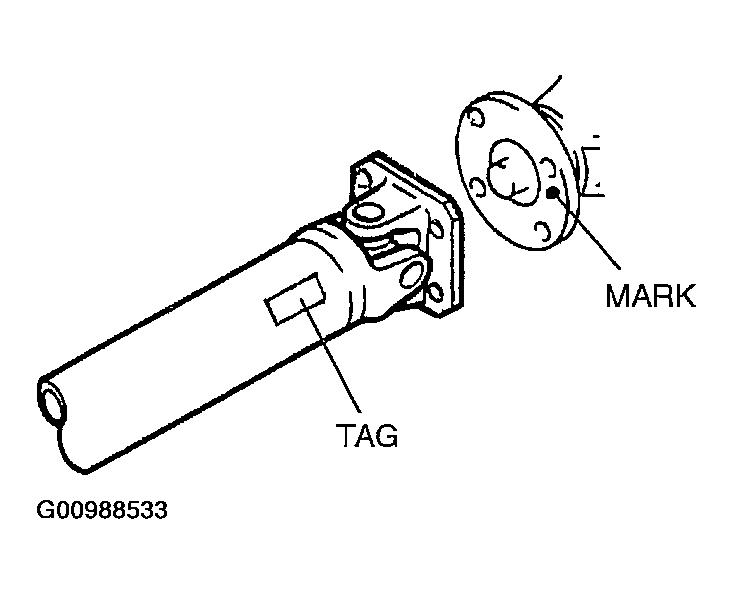

- If installing a new propeller shaft, align the differential companion flange precast marking with the tag on the propeller shaft.
- Tightening torque 50-58 N.m {5.0-6.0 kgf.m, 37-43 ft.lbf}
- Verify that there is no abnormal noise or vibration when driving the vehicle.
- If noise or vibration comes from the propeller shaft, replace the propeller shaft.
