Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crossmember bracket. See REAR CROSSMEMBER .
  2. Remove the rear crossbar (only vehicle equipped with 16 inch wheel). See DIFFERENTIAL REMOVAL/INSTALLATION .
  3. Remove the pre-silencer. See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP] or EXHAUST SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

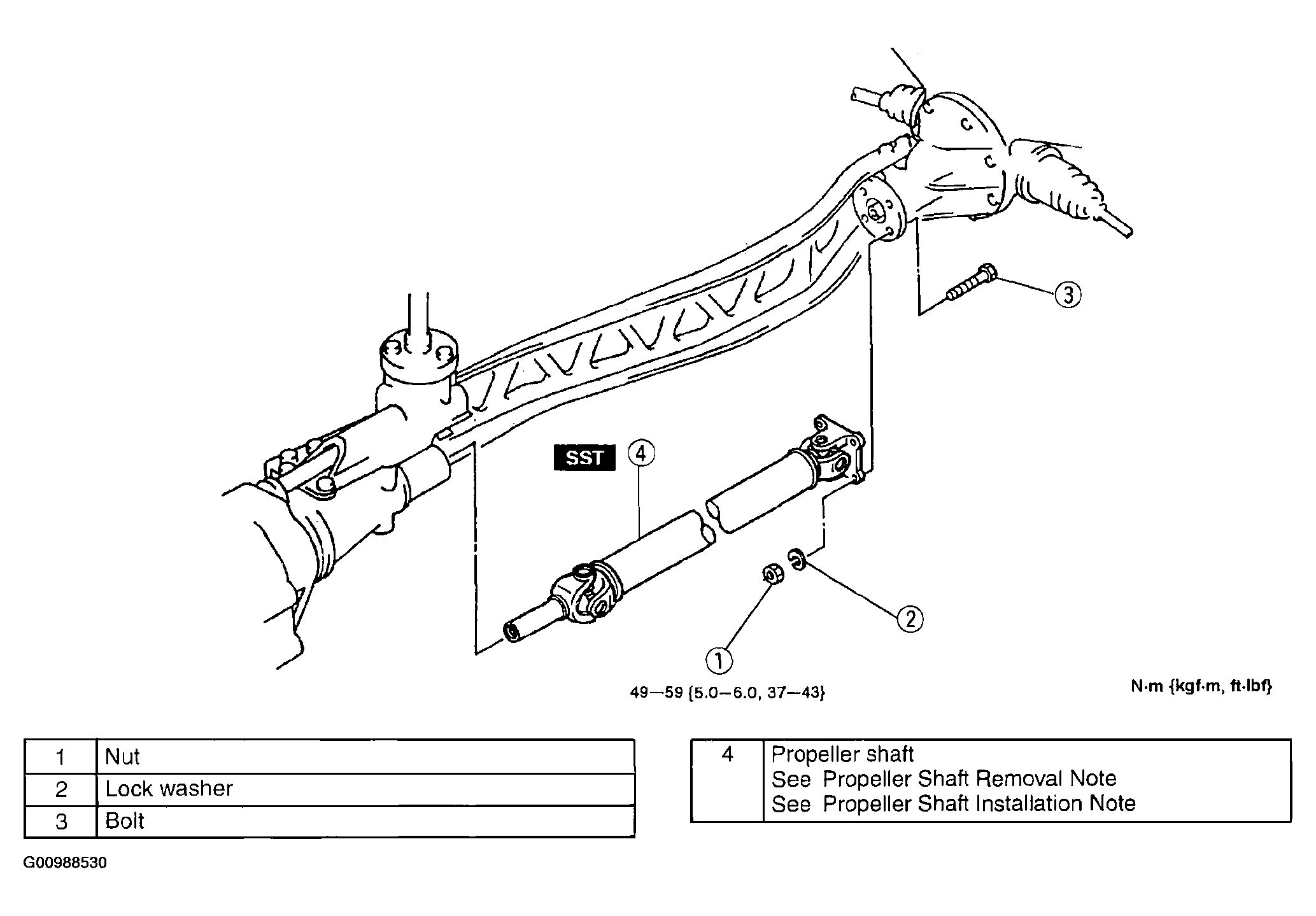

    Fig 1: Removing/Installing Propeller Shaft
    G00988530Courtesy of MAZDA MOTORS CORP.
