Disassembly & Reassembly

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata, 2003 Mazda MX-5 Miata, and 2002 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble components as shown in the illustration. See Fig 1 .
Reassemble in the reverse order of removal. Tighten bolts to specifications. See TORQUE SPECIFICATIONS .

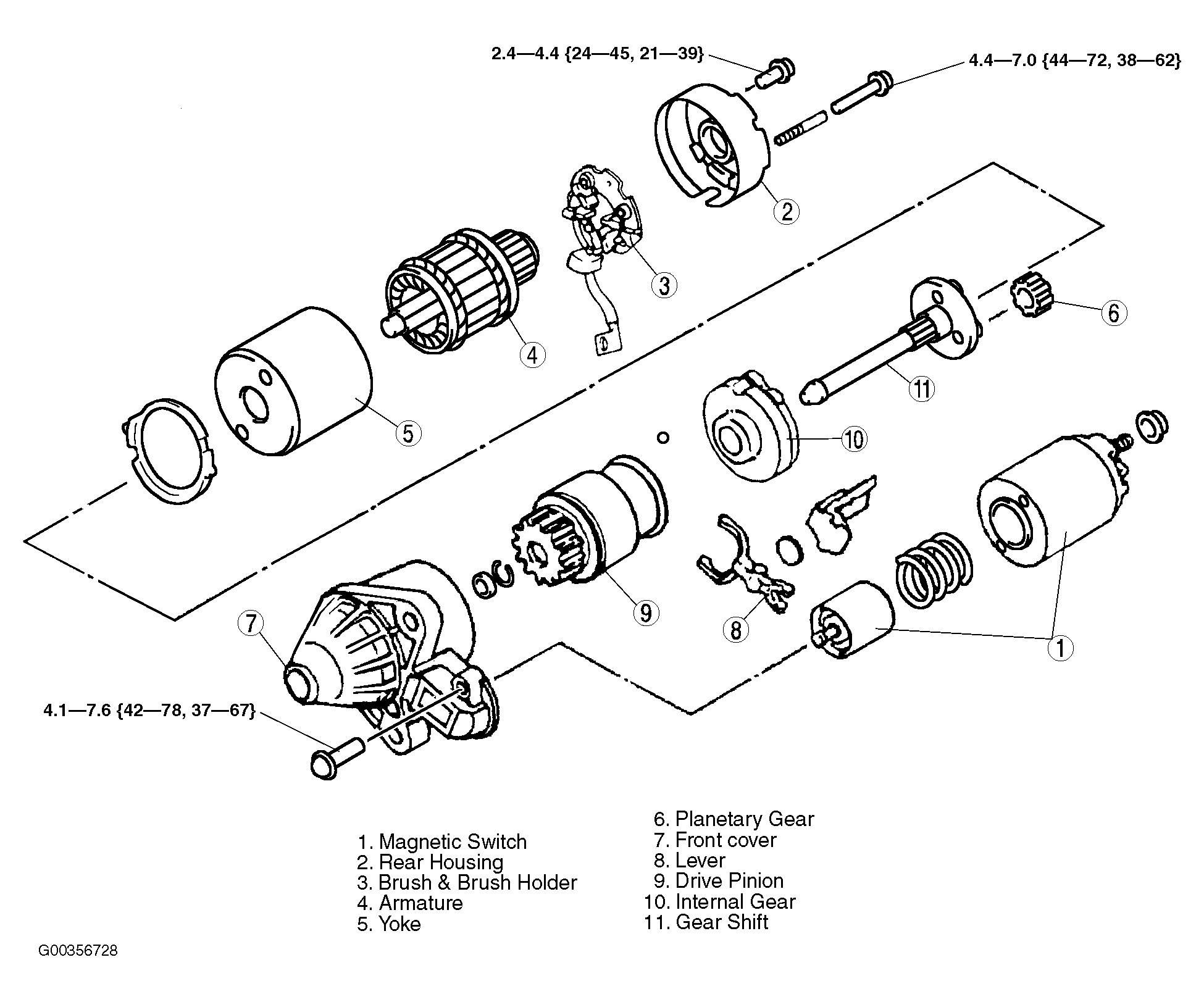

Fig 1: Exploded View Starter Assembly

Courtesy of MAZDA MOTORS CORP.
