Diagnostic Procedures

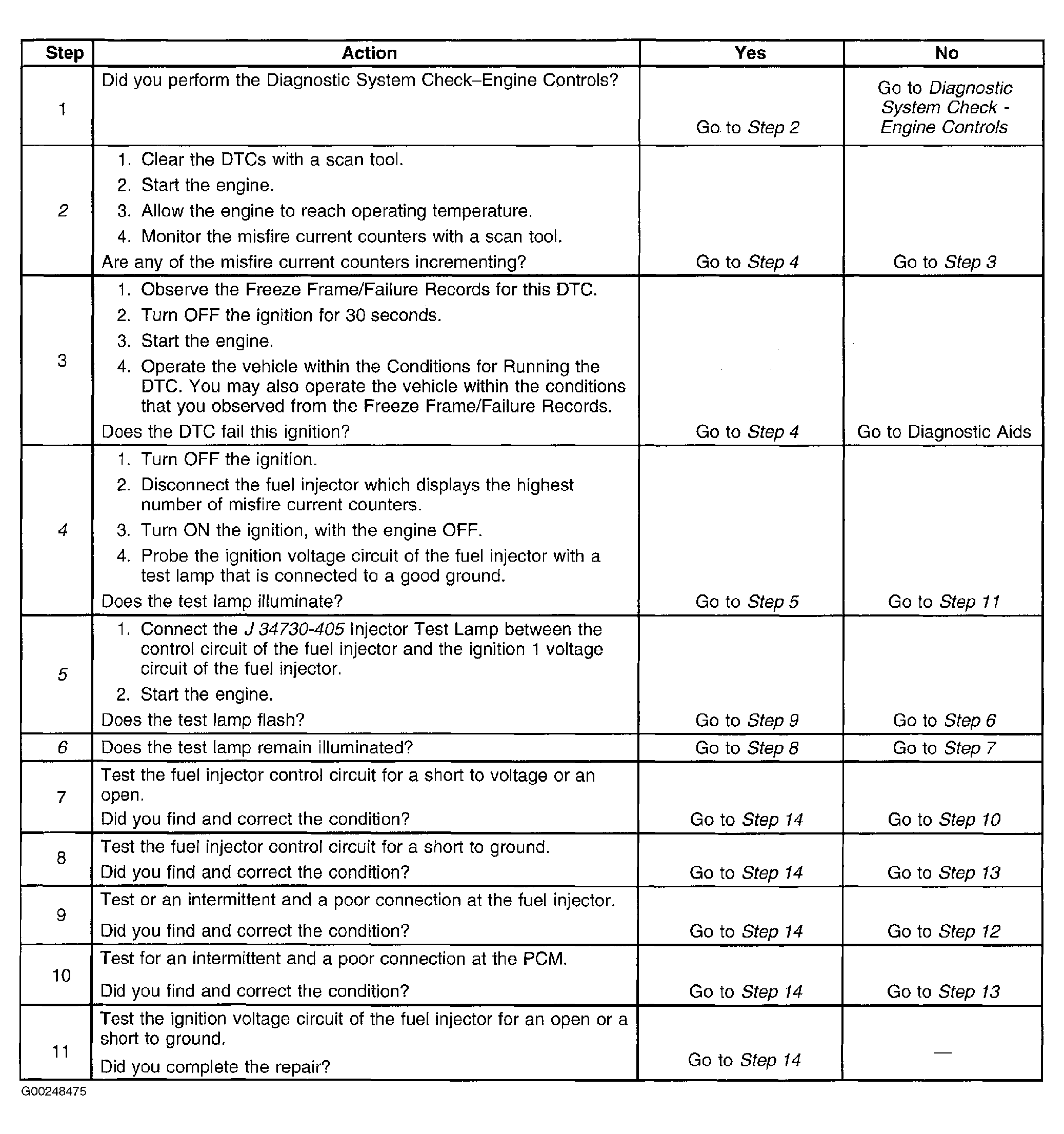

Fig 1: DTC P0201-P0208: Injector Control Circuit (Steps 1-11)
G00248475Courtesy of GENERAL MOTORS CORP.

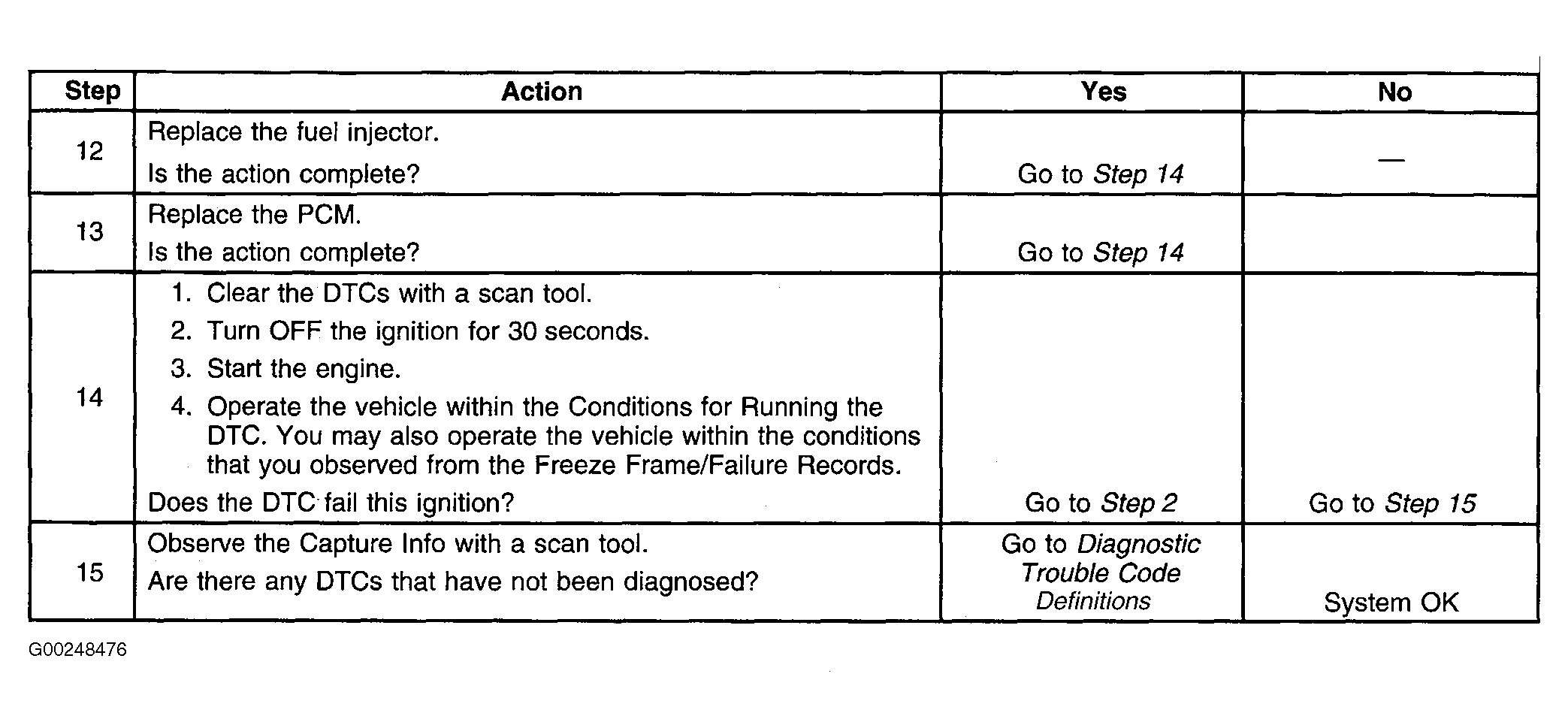

Fig 2: DTC P0201-P0208: Injector Control Circuit (Steps 12-15)
G00248476Courtesy of GENERAL MOTORS CORP.
DIAGNOSTIC TROUBLE CODE IDENTIFICATION

DTC Injector No.
P0201 (1) 1
P0202 2
P0203 3
P0204 4
P0205 5
P0206 6
(1) Injector No. 1 is the first injector on right (rear) cylinder head.
