Automatic Transmission Shift Lock Control Schematics

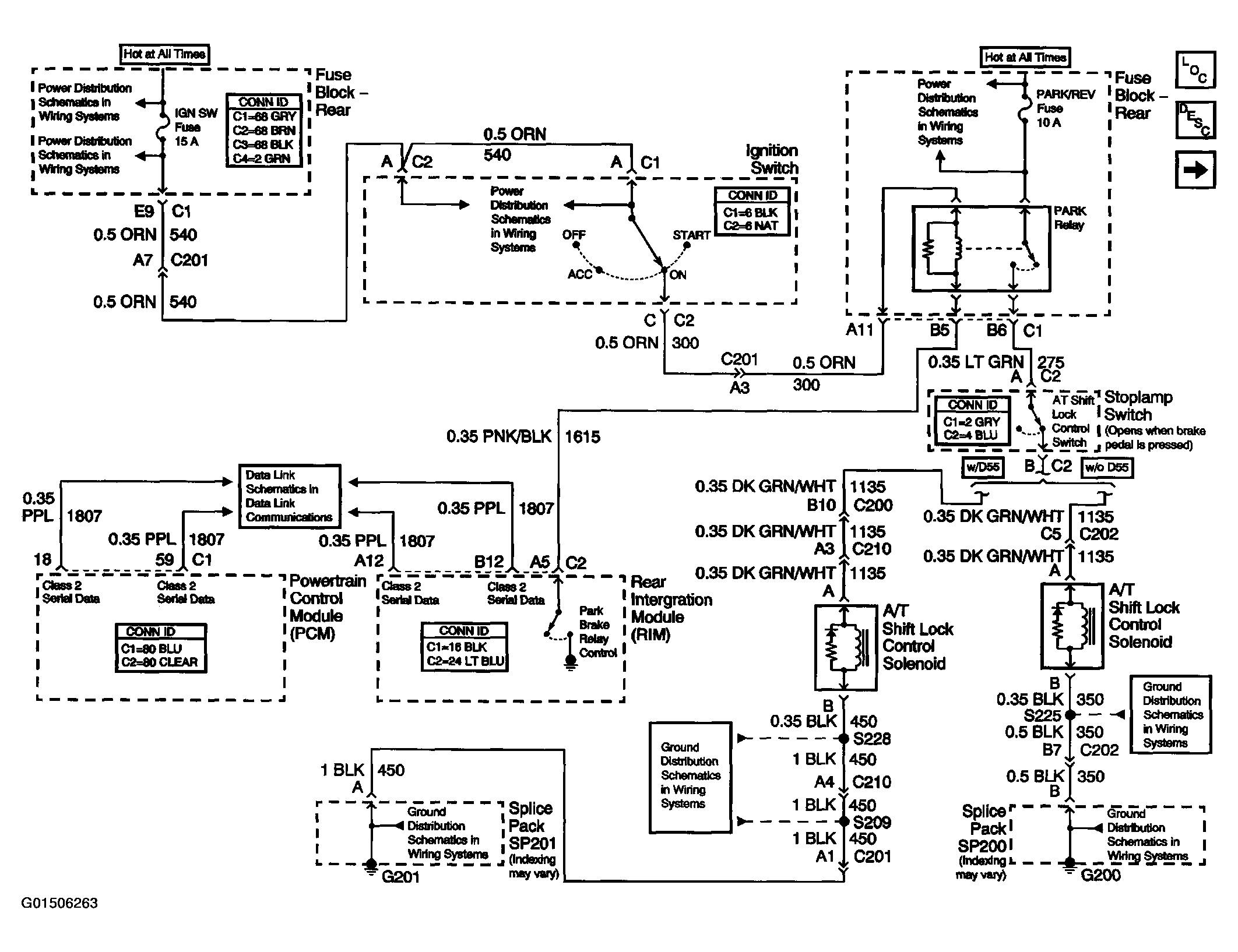

Fig 1: Automatic Transmission Shift Lock Control Wiring Schematic (Power & Grounds)
G01506263Courtesy of GENERAL MOTORS CORP.

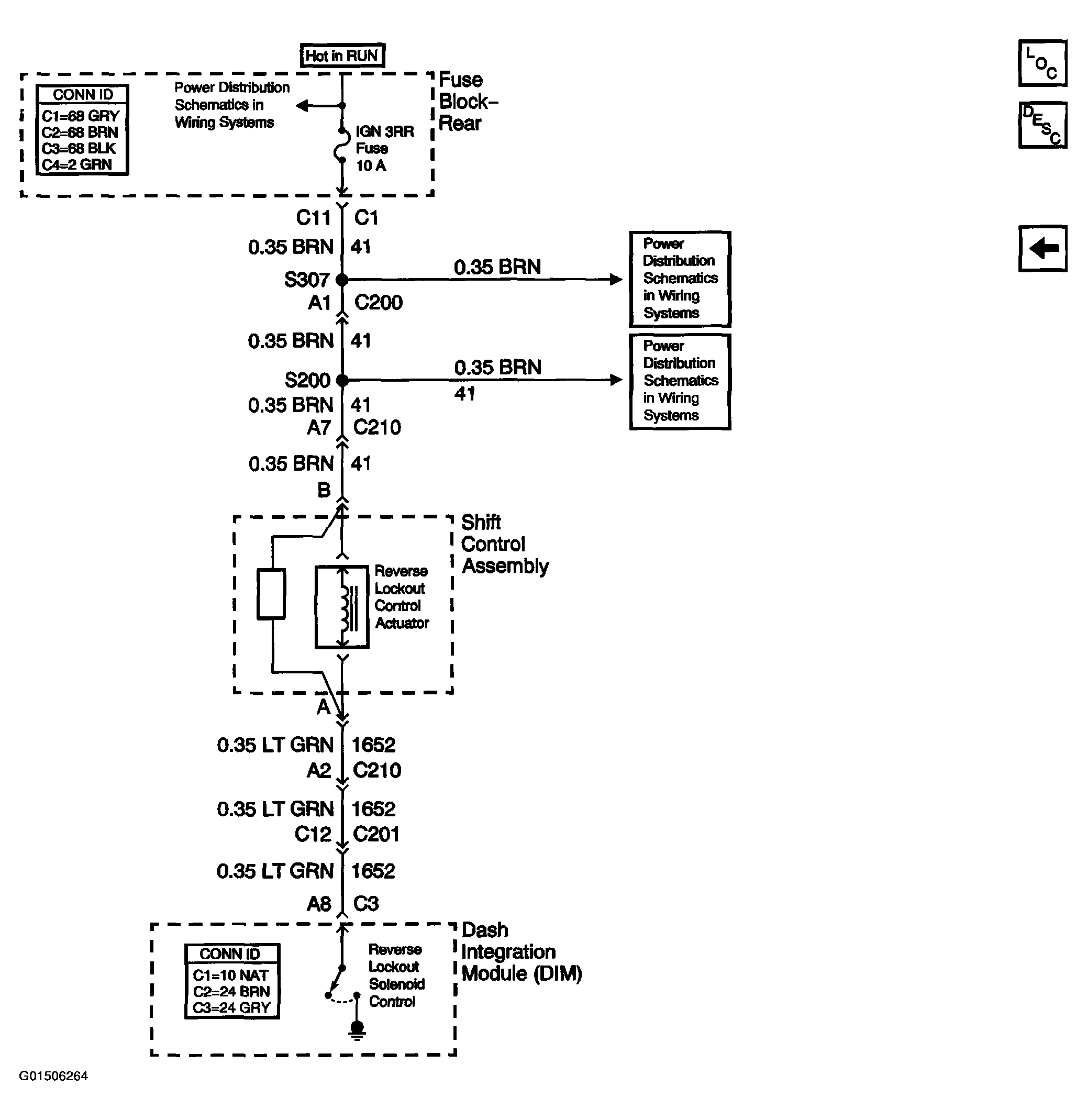

Fig 2: Automatic Transmission Shift Lock Control Wiring Schematic (Reverse Lockout Control)
G01506264Courtesy of GENERAL MOTORS CORP.
