Home >> Oldsmobile >> 2003 >> Aurora >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery >> Component Locator >> Engine Electrical Connector End Views

Engine Electrical Connector End Views

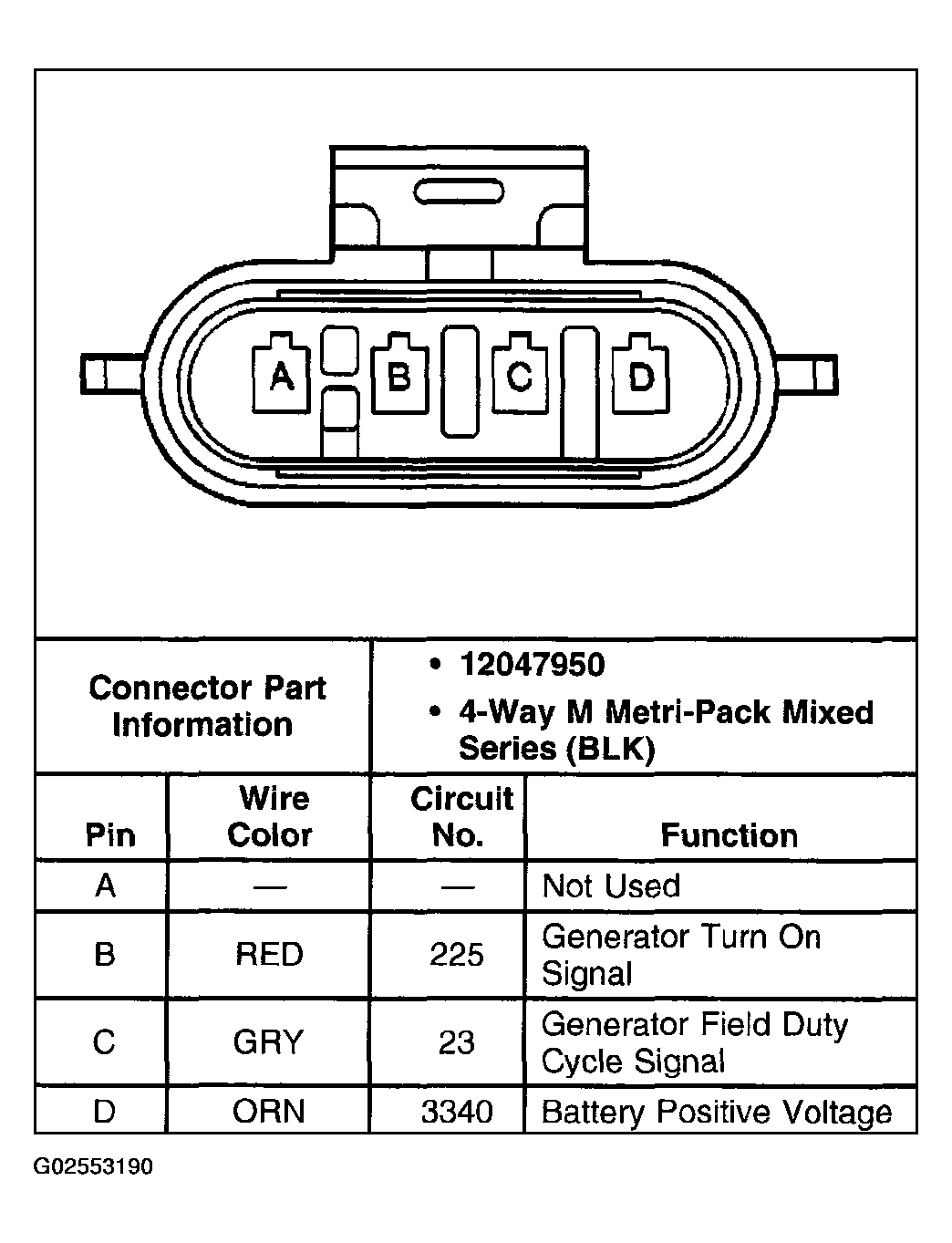

Fig 1: Generator

G02553190

Courtesy of GENERAL MOTORS CORP.
