Recirculation Actuator Connector End View

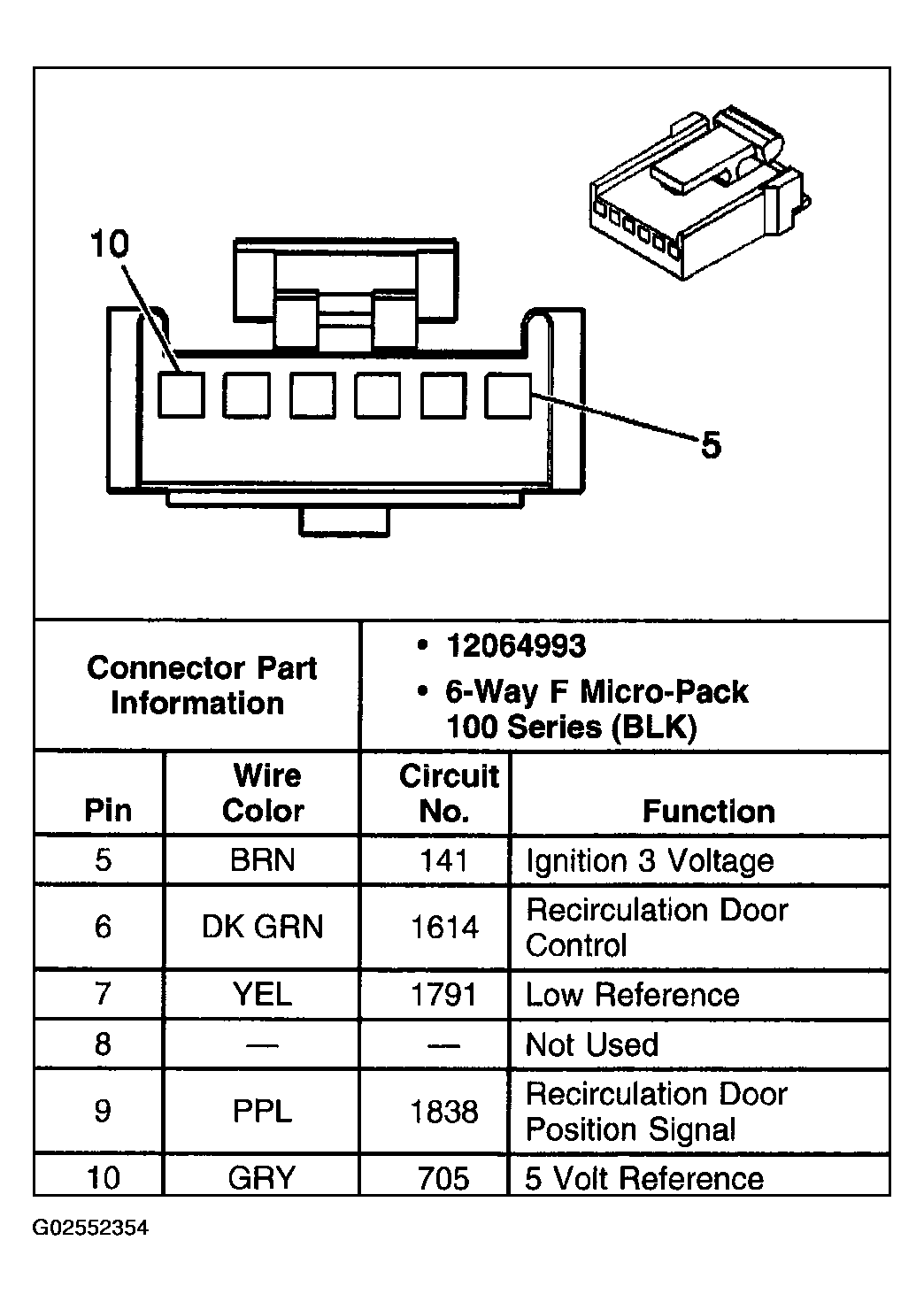

Fig 1: Recirculation Actuator Connector End View

G02552354

Courtesy of GENERAL MOTORS CORP.
