Ignition Switch C2 Connector End View

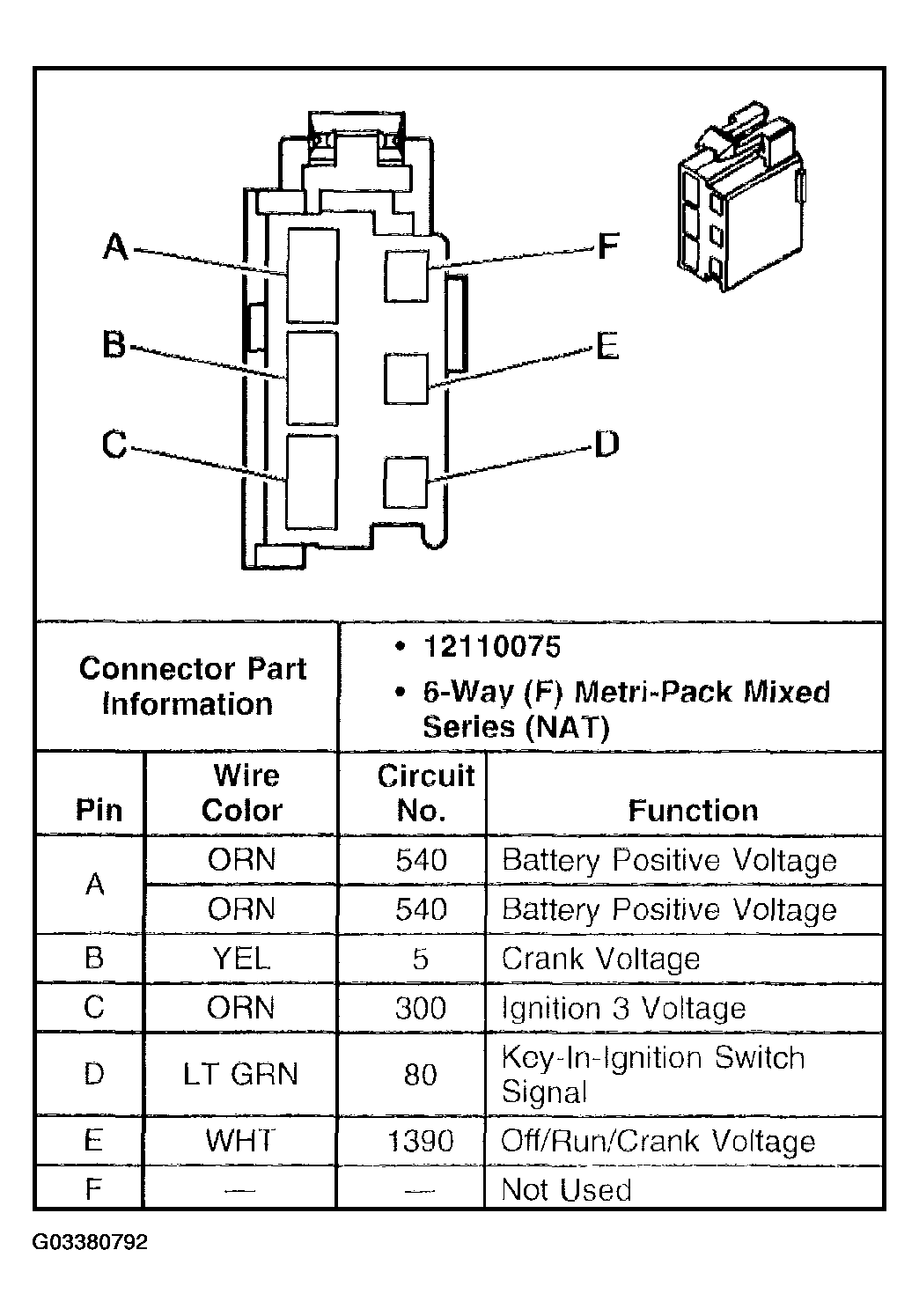

Fig 1: Ignition Switch C2 Connector End View

G03380792

Courtesy of GENERAL MOTORS CORP.
