Data Link Connector Connector End View

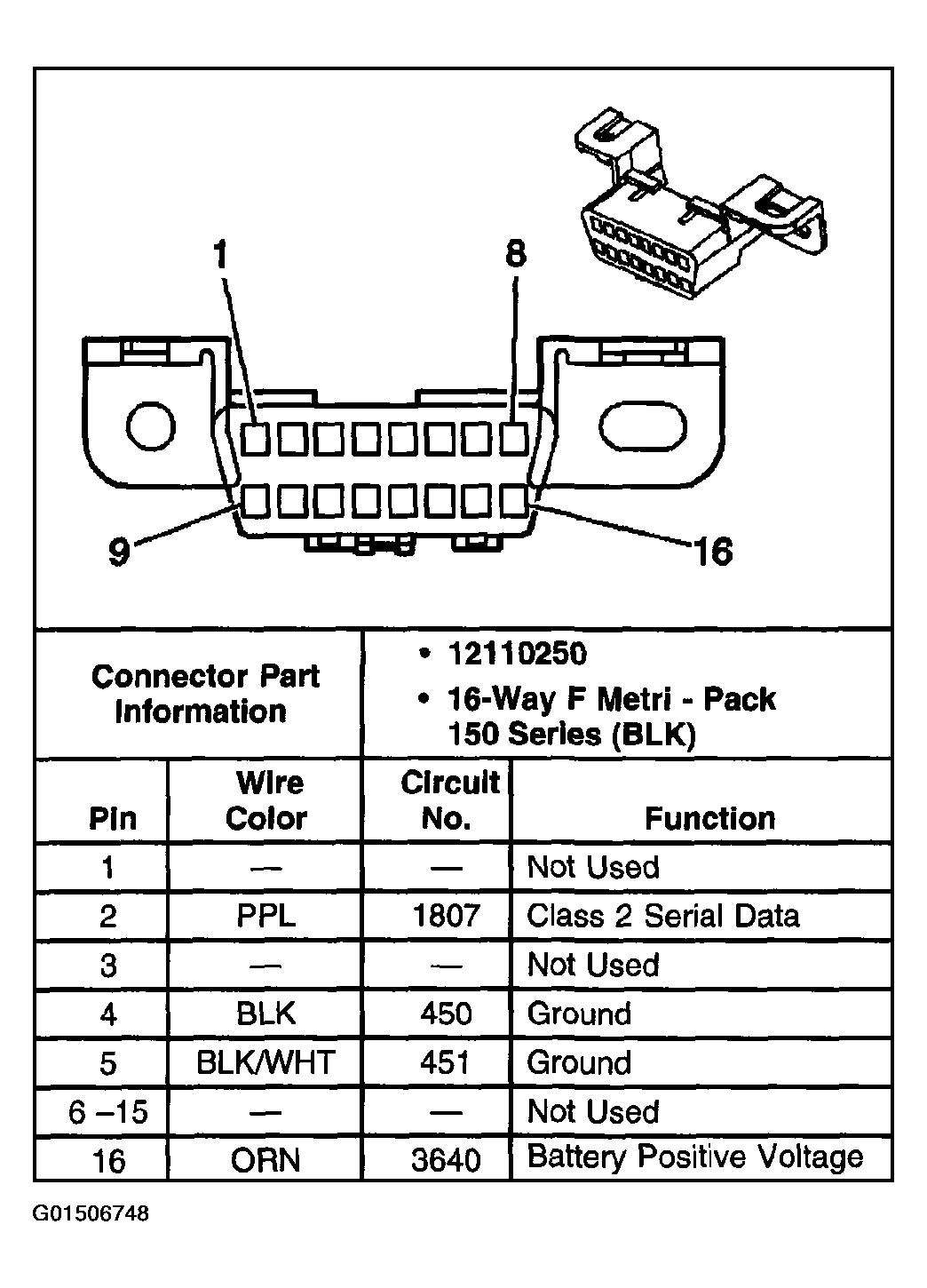

Fig 1: Data Link Connector Connector End View

G01506748

Courtesy of GENERAL MOTORS CORP.
