Component Locations

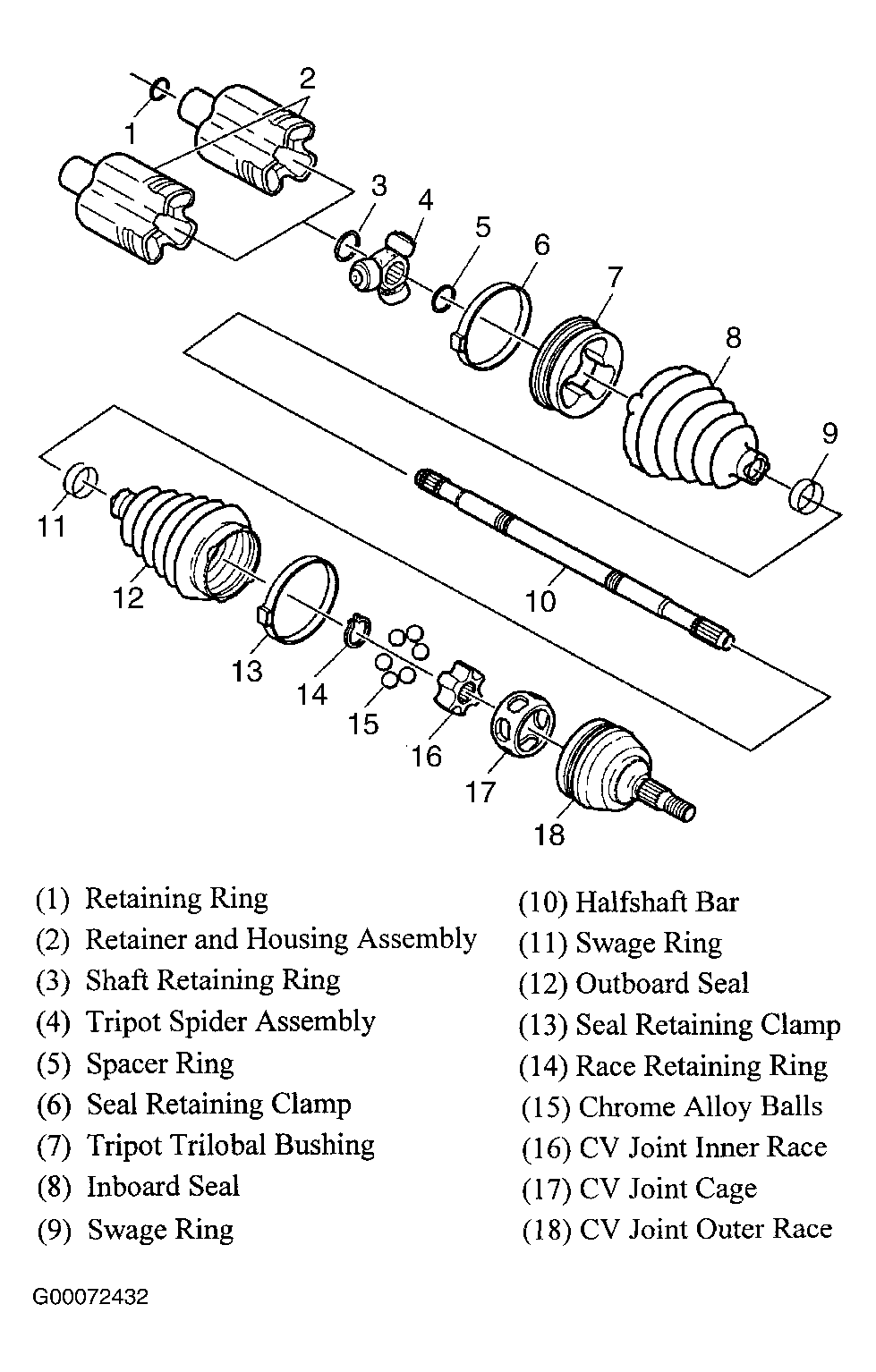

Fig 1: Identifying Axle Shaft Components
G00072432Courtesy of GENERAL MOTORS CORP.
