Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the 2 yaw rate sensor mounting nuts (1).
  3. Remove the yaw rate sensor (2).
  4. Disconnect the yaw rate sensor electrical connector (3).

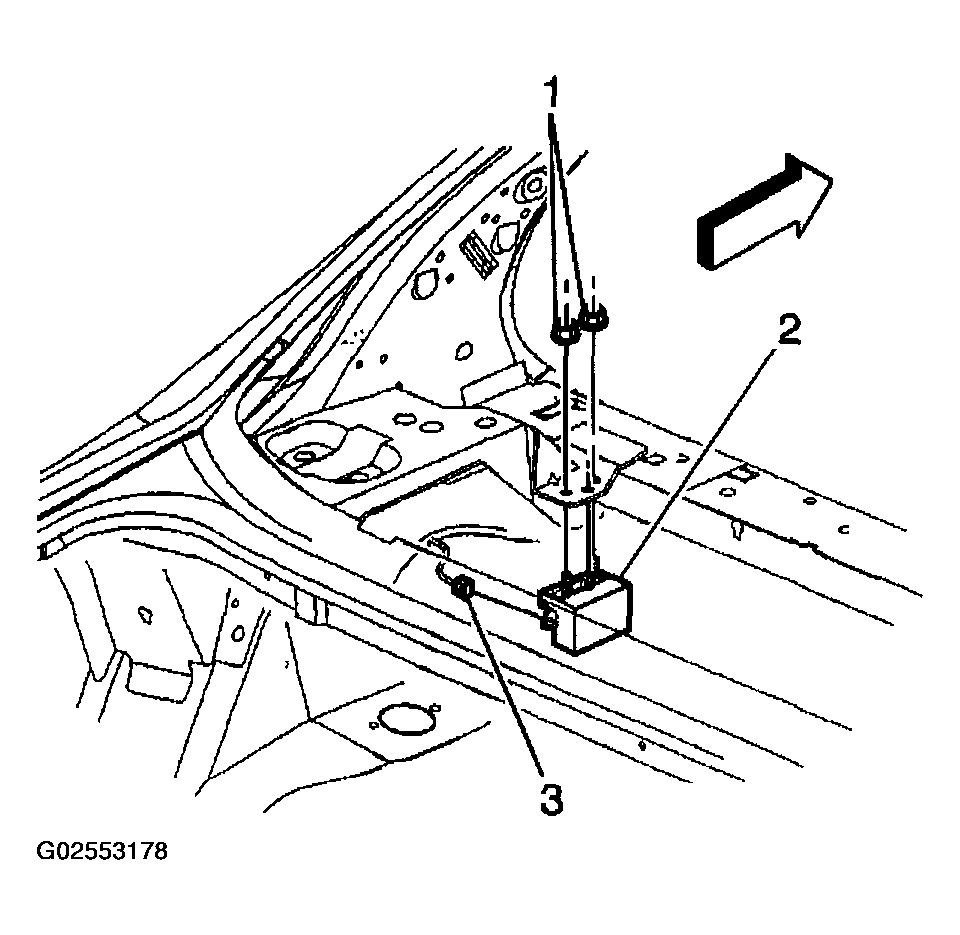

    5. Fig 1: Removing & Installing Yaw Rate Sensor
    G02553178Courtesy of GENERAL MOTORS CORP.
