Installation Procedure

NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the yaw rate sensor electrical connector (3).
  2. Install the yaw rate sensor (2). Tighten:  Tighten the 2 yaw rate sensor mounting nuts (1) to 6 N.m (53 lb in).
  3. Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS  .

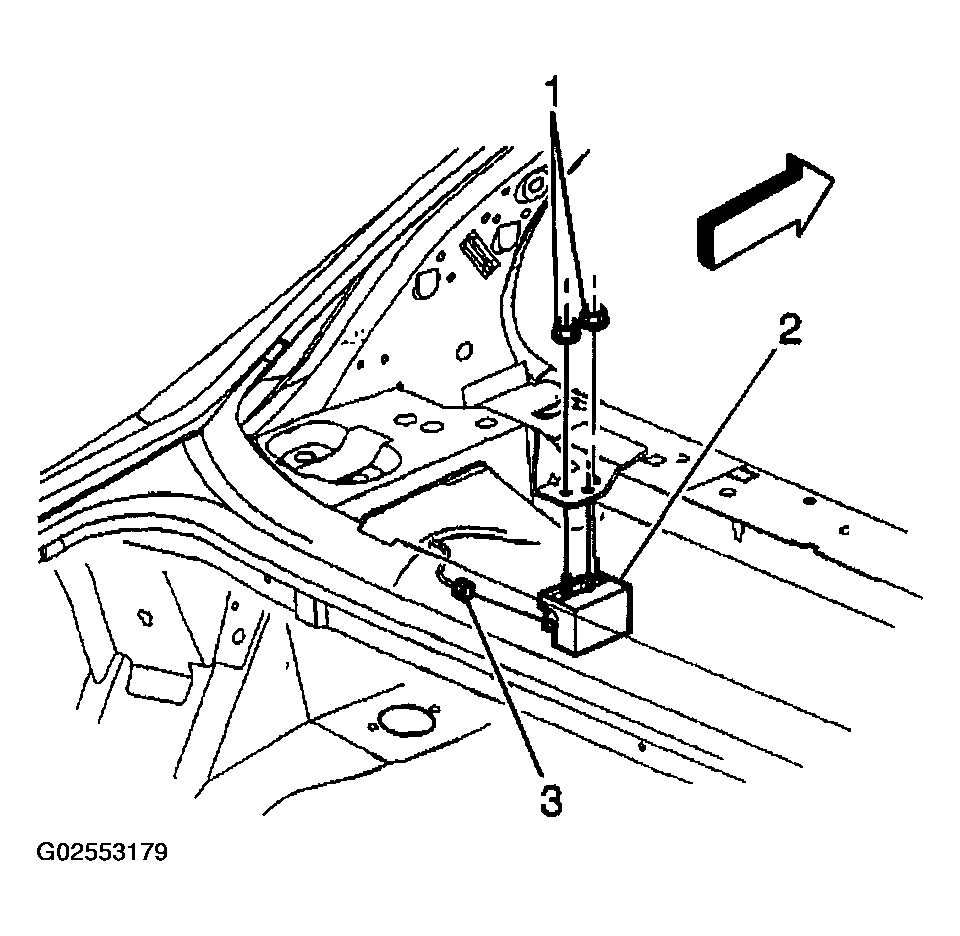

    4. Fig 1: Removing & Installing Yaw Rate Sensor
    G02553179Courtesy of GENERAL MOTORS CORP.
