Installation Procedure

  1. Install the traction control switch (5).
  2. Connect the traction control switch electrical connector.
  3. Install the center console trim plate (2). Refer to TRIM PLATE REPLACEMENT - CONSOLE in Instrument Panel, Gages and Console.

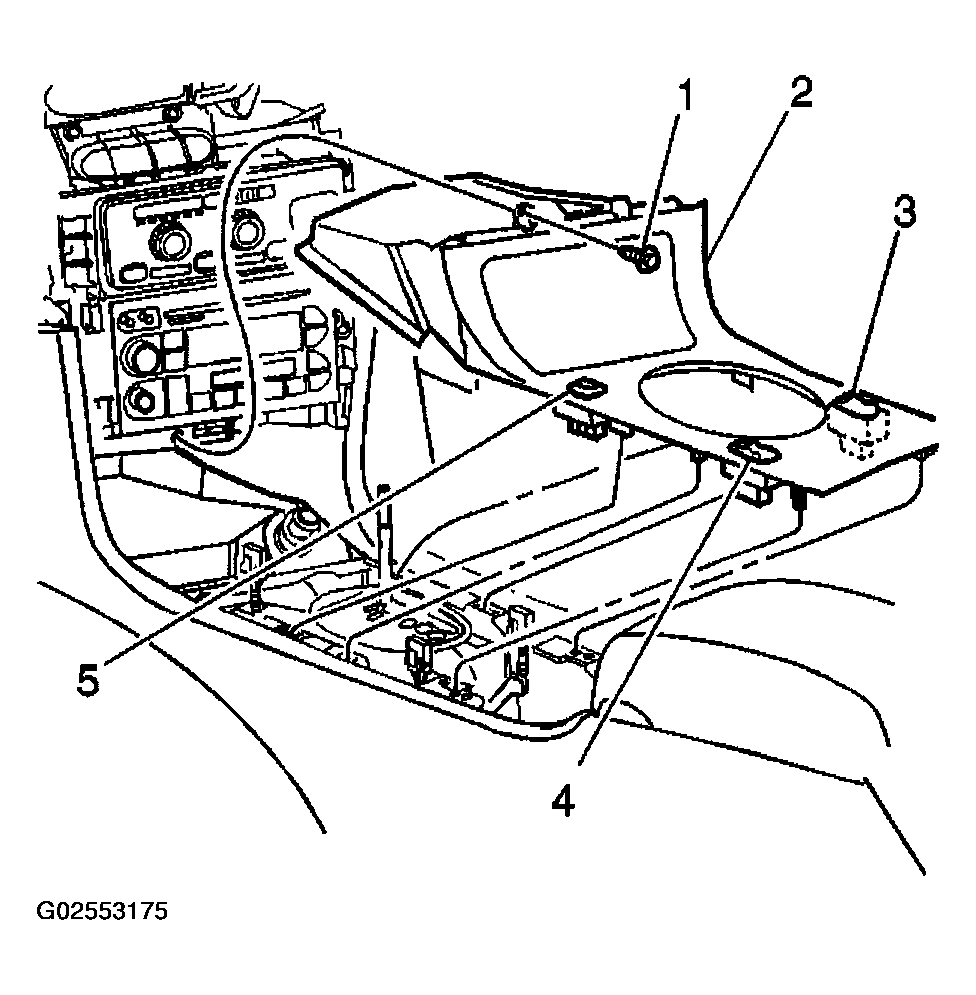

    4. Fig 1: Removing & Installing Center Console Trim Plate & Traction Control Switch
    G02553175Courtesy of GENERAL MOTORS CORP.
