ABS Connector End Views

Fig 1: Identifying Electronic Brake Control Module Connector Terminals (1 Of 2)
G02553089Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Electronic Brake Control Module Connector Terminals (2 Of 2)
G02553090Courtesy of GENERAL MOTORS CORP.

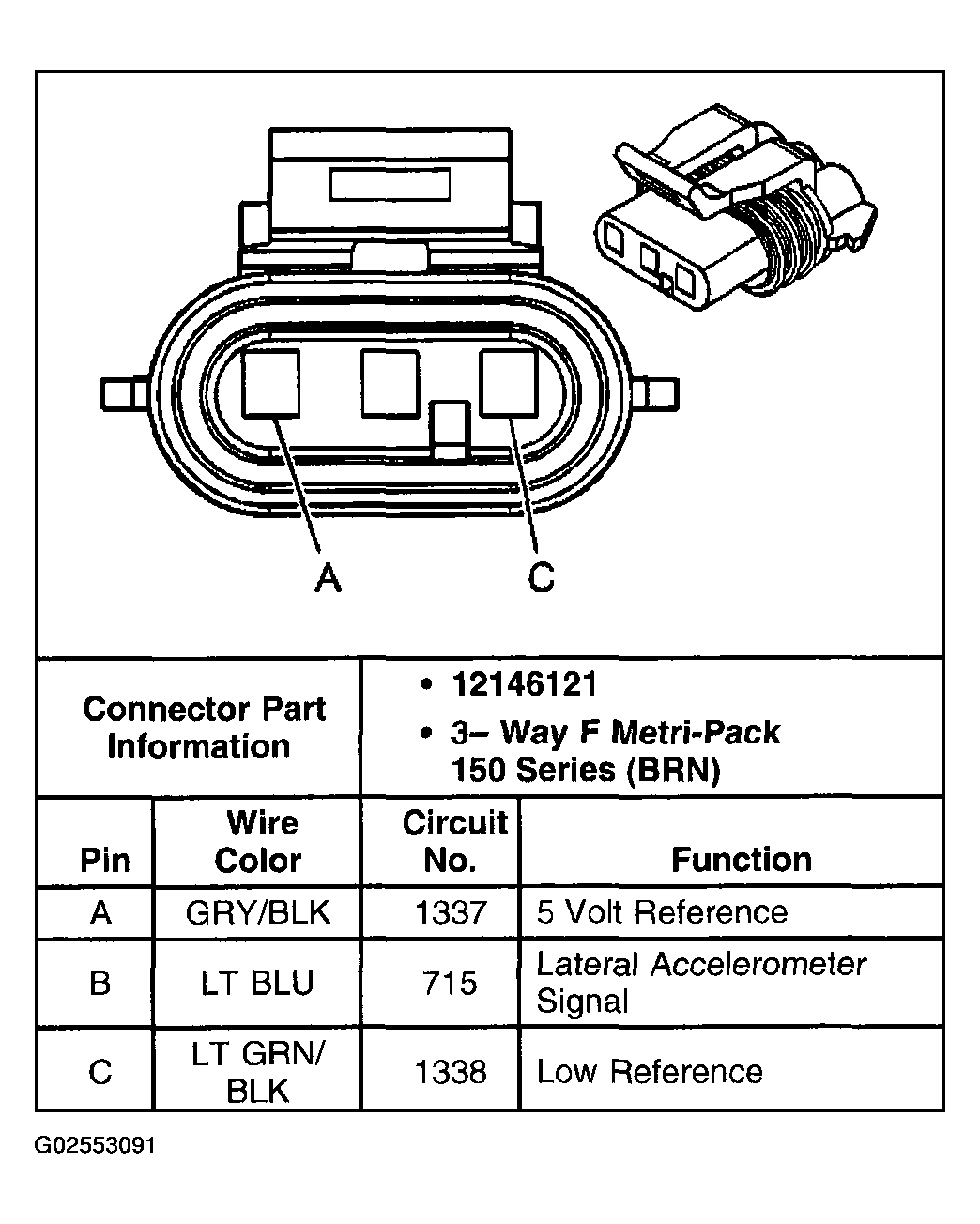

Fig 3: Identifying Lateral Accelerometer Sensor Connector Terminals (With JL4)
G02553091Courtesy of GENERAL MOTORS CORP.

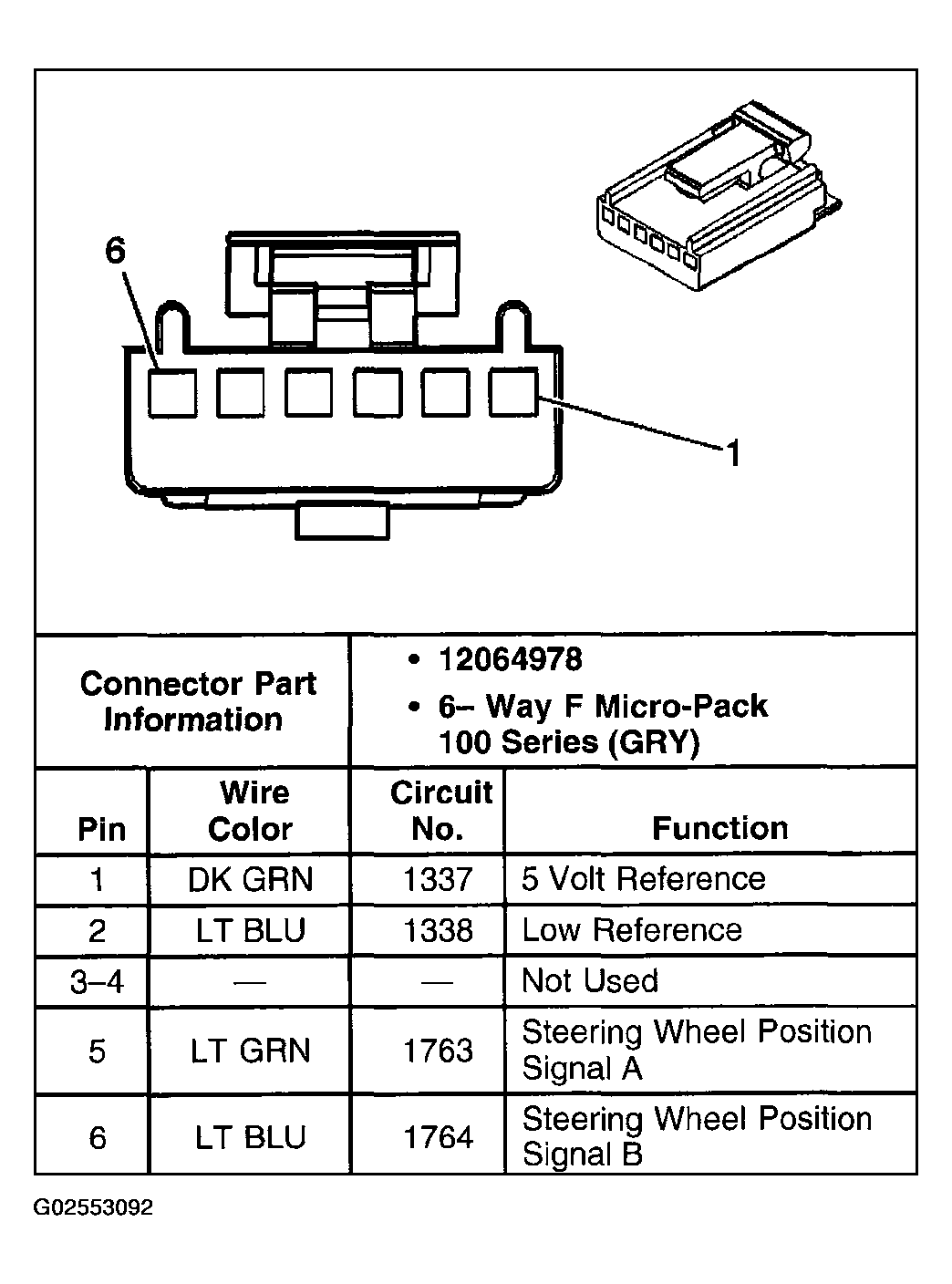

Fig 4: Identifying Steering Wheel Position Sensor Connector Terminals (With JL4)
G02553092Courtesy of GENERAL MOTORS CORP.

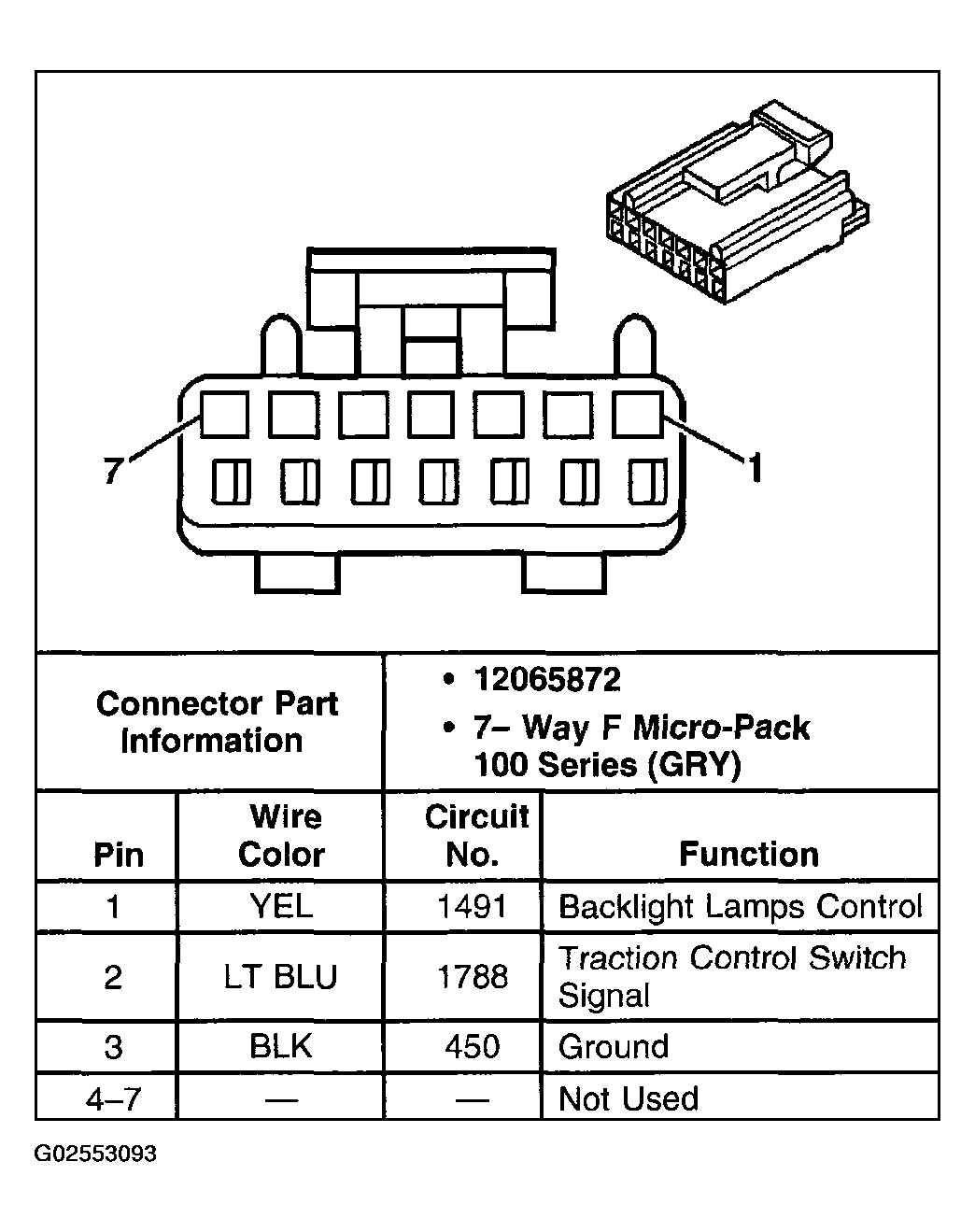

Fig 5: Identifying Traction Control Switch Connector Terminals (With NW9)
G02553093Courtesy of GENERAL MOTORS CORP.

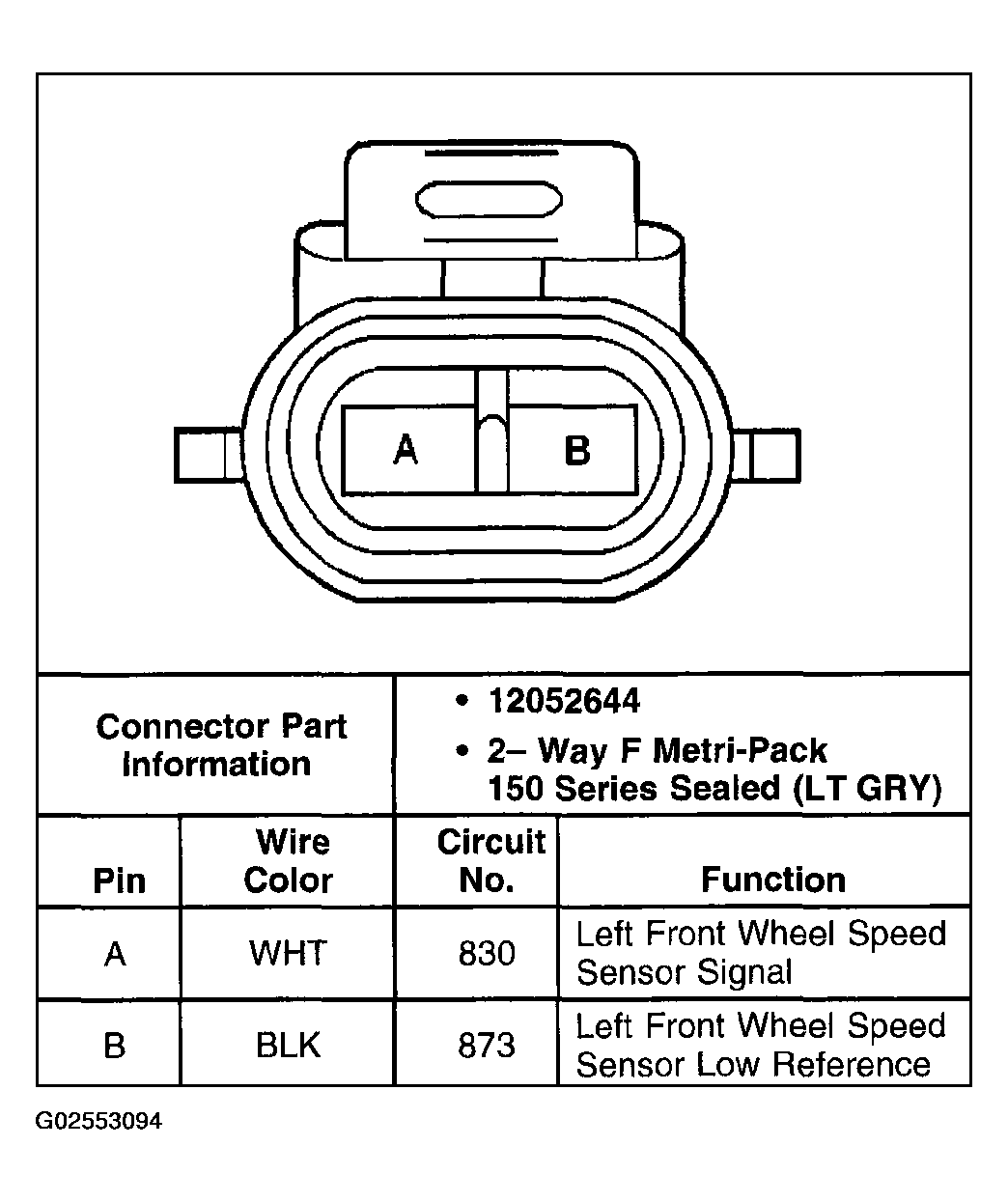

Fig 6: Identifying LF Wheel Speed Sensor Connector Terminals
G02553094Courtesy of GENERAL MOTORS CORP.

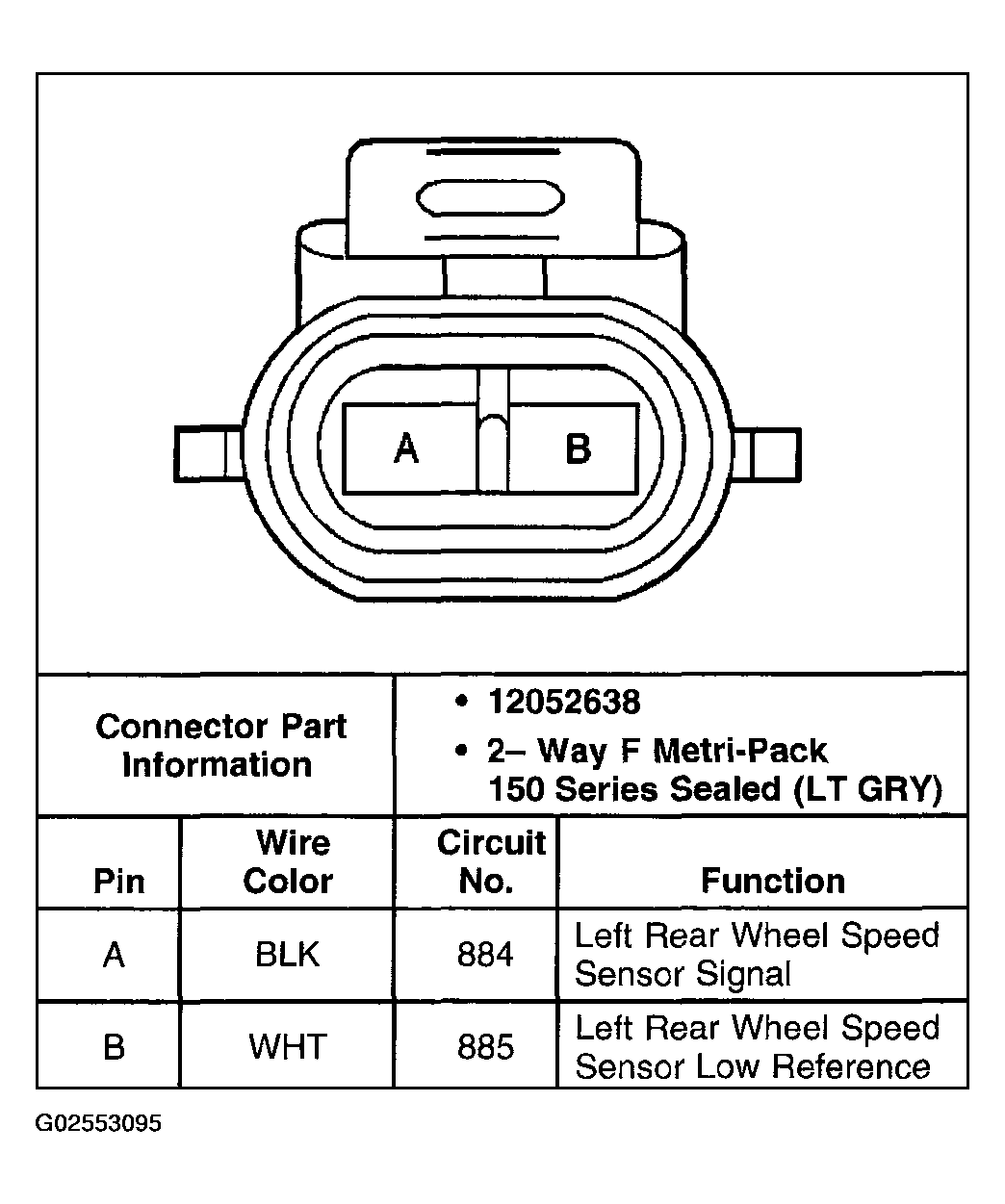

Fig 7: Identifying LR Wheel Speed Sensor Connector Terminals
G02553095Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying RF Wheel Speed Sensor Connector Terminals
G02553096Courtesy of GENERAL MOTORS CORP.

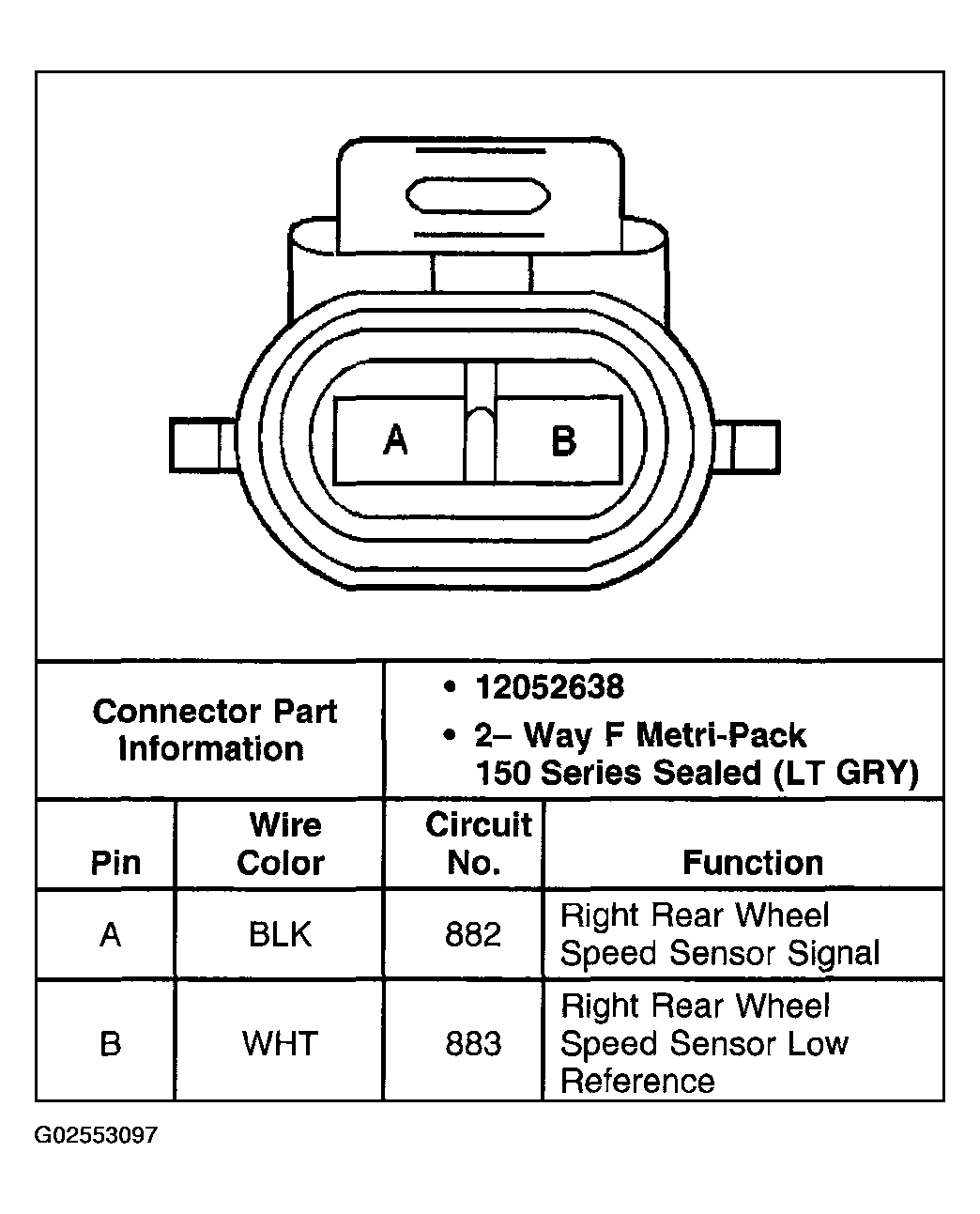

Fig 9: Identifying RR Wheel Speed Sensor Connector Terminals
G02553097Courtesy of GENERAL MOTORS CORP.

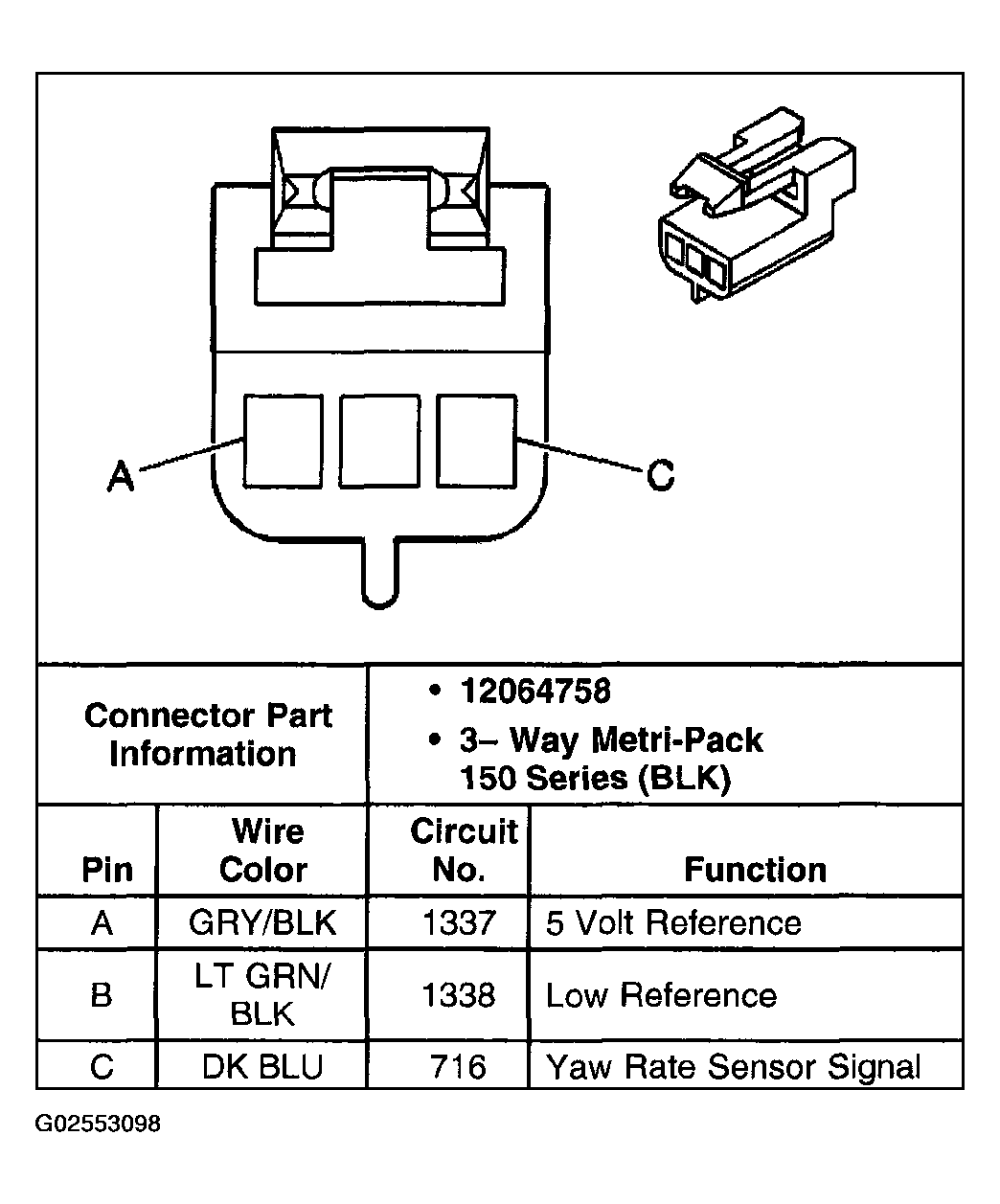

Fig 10: Identifying Yaw Rate Sensor (With JL4) Connector Terminals
G02553098Courtesy of GENERAL MOTORS CORP.
