Installation Procedure

  1. Install the rear window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS  .
  2. Connect the rear window electrical connectors.
  3. Install the OnStar® antenna. Refer to COUPLING REPLACEMENT - ANTENNA INNER and COUPLING REPLACEMENT - ANTENNA OUTER in Cellular Communication.
  4. Connect the antenna connection to the rear window.
  5. Install the rear upper interior quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.
  6. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  7. Close the rear compartment lid.

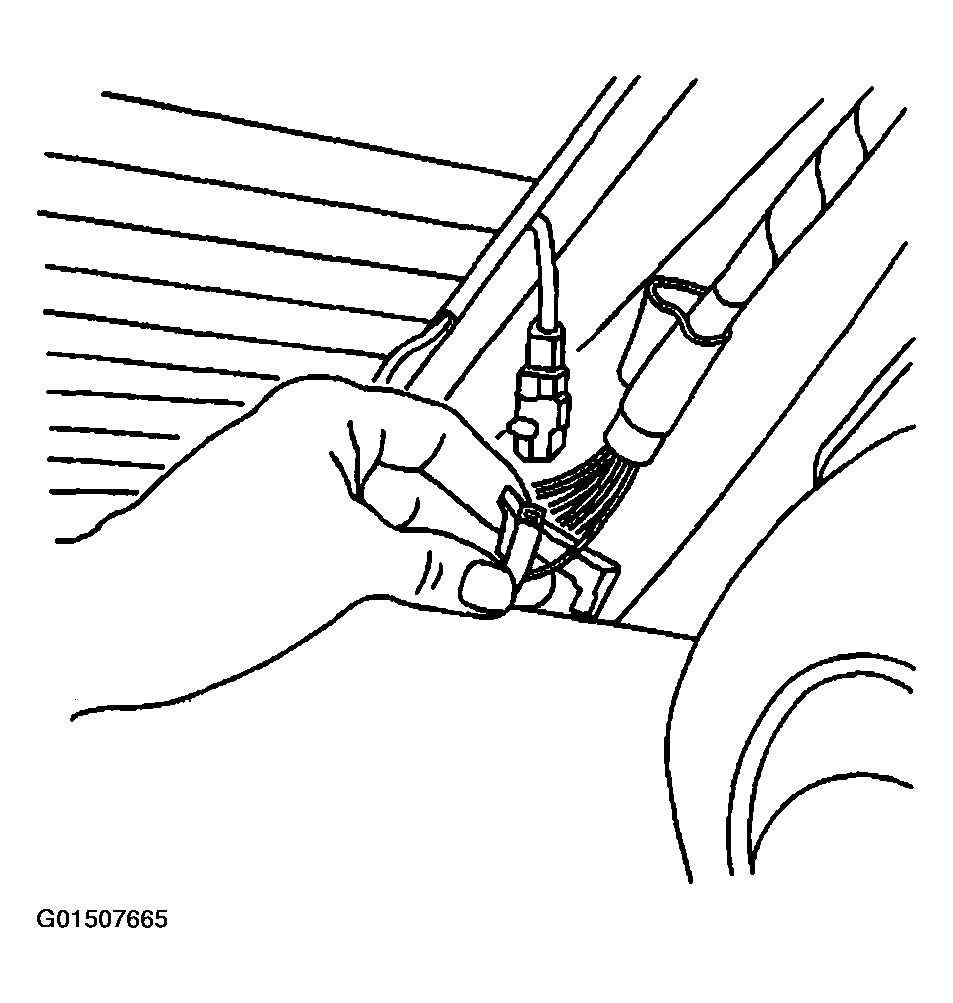

    Fig 1: Connecting Rear Window Electrical Connectors
    G01507665Courtesy of GENERAL MOTORS CORP.
